SoM-4475 Celeron ETX Module

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing


Linux	Real Time Linux	MS-DOS	Win CE.Net	Win XP/NT

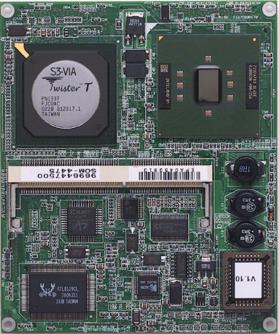

Image of SOM-4472

Features

Specifications

Pricing

The SoM-4475 is a powerful, fanless SoM CPU module able to drive the most demanding Kiosk, POS and POI applications requiring high performance graphics support. With support for Intel® Mobile Pentium® III and Celeron® processors up to 933 MHz, the SoM-4475 offers developers a low power and scaleable solution that fits a range ofneeds. The VIA VT8606/VT82C686A core chipset is a high performance 3D 4x AGP Graphics engine, giving any platform superior multimedia capability.

FEATURES

Embedded Intel® LV PIII/ULV Celeron® processor
Fanless, Celeron 32 ~ 140° F operation (0 ~ 60° C)
ETX form factor
Powerful multimedia capability
18-bit LCD / 2-channel LVDS interface

SPECIFICATIONS

Standard SBC Functions

CPU: LV Intel ® Pentium ® III-933 MHz/ ULV Celeron-650 & 400 MHz
System Memory: SDRAM SODIMM x 1, Max. 512 MB
2nd Cache Memory: 64 KB on CPU
System Chipset: VIA 8606 (Twister-T™)/ 82C686
BIOS: AWARD 256 KB Flash BIOS
Watchdog Timer: 1 - 62 sec, system reset
MIO: 2 x EIDE (Ultra DMA66), 1 x FDD/LPT, 1 x K/B, 1 x Mouse, 2 x Serial
IrDA: 115 Kbps, IrDA 1.1 compliant
USB: 4 USB ports, USB 1.1 compliant

VGA/Flat-Panel Interface

Chipset: VIA Twister™ chip with Integrated S3® Savage4™ 2D/3D/Video Accelerator
Memory Size: 8/16/32/64 MB frame buffer using system memory
ResolutionCRT Mode: 1280x1024@16 bpp (60 Hz), 1024x768@16 bpp (85 Hz)
LCD/Simultaneous Mode: 1280x1024@16 bpp (60 Hz), 1024x768@16 bpp (60 Hz)
LCD Interface: 4X AGP VGA/LCD interface.Support 18-bit TFT panels up to XGA resolution
LVDS Interface: 2 Channel (2x 18-bit) LVDS interface

Ethernet Interface

Chipset: RTL8139C
Interface: IEEE 802.3u 100 BASE - T Fast Ethernet
Built-in boot ROM

Audio Function

Chipset: VIA VT 82C686
Controller: AC 97 2.0 compliant
Interface: Mic in, Line in, Line out

Bus Interface

PCI/ISA

Mechanical and Environmental

Dimensions: (L x W) 95x114 mm (3.7" x 4.5")
Power Supply Voltage: +5V+/ -5%
Power Requirements: Max.: 5V @ 4.5 A. Typical: 5V@2.44 A (w/Celeron 400 + 256MB RAM)
Operating Temperature: 32~140° F (0~60° C), fanless operation
Operating Humidity: 0%~90% relative humidity, non-condensing

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

SoM-4475FL-J .. Celeron 400 CPU, VGA, LCD/LVDS, Audio, LAN	275.00
SoM-4475FL-M .. Celeron 650 CPU, VGA, LCD/LVDS, Audio, LAN	325.00
SoM-4475FL-R .. PIII 933 CPU, VGA, LCD/LVDS, Audio, LAN	689.00
SoM-FANKIT .... Fan Kit for SoM-ETX Modules	25.00

(Flash Disk and RAM not included)

Available Options:
System Memory (RAM)
Hard Drives
Flash Memory
Operating Systems
LCDs and TouchScreens
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
