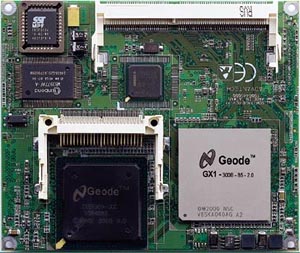

Picture of SoM-4450

Features

Specifications

Pricing

Many gains were made by utilizing the Geode™ GX1 processor. The GX1 processor provides the lowest power consumption/high speed combination of any x86 processor at these performance levels. These processors also support most popular web plug-ins and leverage existing software and hardware investments. The GX1 processor brings 0.18-micron technology to the System on Module line and allows users to enjoy the added speed and efficiency 0.18-micron technology has to offer. Combined with the CS5530A system chipset and RTL 8139 Ethernet chipset, the SOM-4450 is a low power, high performance platform ready to be integrated with application customer solution boards covering multiple applications.

FEATURES

Compact and powerful
10/100 Mbps Ethernet
18-bit LCD/1 channel LVDS interface
AC' 97 V 2.0 Audio
Less than 8 Watts of power consumption

SPECIFICATIONS

Standard SBC Functions

CPU: Embedded NS Geode™ processor GX1-300 MHz processor
System Memory: SDRAM SODIMM x 1, Max. 256 MB
System Chipset: NS CX 5530
BIOS: AWARD 256 KB Flash BIOS
SSD: Supports CompactFlash™ card
Watchdog Timer: 1-62 Sec, System reset
MIO: 2 x EIDE (Ultra DMA33), 1 x FDD/LPT, 1 x K/B, 1 x Mouse, 2 x RS-232
IrDA: 115 Kbps, IrDA 1.0 compliant
USB: 2 USB ports, USB 1.1 compliant

VGA/Flat-Panel Interface

Chipset: NS CX 5530
Memory Size: 1-4 MB UMA share memory
Resolution CRT Mode: 1024x768@24 bpp(60Hz)
LCD/Simultaneous Mode: 1024x768216 bpp(60Hz)
LCD Interface: 18-bit TFT panels up to XGA resolution
LVDS: 18 bit ANSI EIA/TIA-644, over 10 meters transmission (SOM-4450FL-G0A1)
TV-out: Supports both NTSC/PAL

Ethernet Interface

Chipset: RTL 8139C (optional Intel® 82559ER)
Interface: IEEE 802.3u 100 BASE - T Fast Ethernet
Built-in boot ROM (RTL 8139C)

Audio Function

Chipset: NS CX 5530
Controller: AC'97 2.0 compliant

Bus Interface

PCI/ISA

Mechanical and Environmental

Dimensions: (LxW) 95x114 mm ( 3.7" x 4.5" )
Power Supply Voltage: +5V+/ -5%
Power Requirements: Max.: 5V@4A Typical: 5V@1.5A
Operating Temperature: 0~60° C (32~140° F), fanless operation
Operating Humidity: 0%~90% relative humidity, non-condensing

PRICING (Single Unit. Includes: Integration, Setup, and Testing)
Not Recommended for New Designs. Consider: SOM-4455

SoM-4450 ... ETX SoM w/ GX1-300 CPU, VGA, LCD, Audio, LAN, & TV-out
(Flash Disk and RAM not included)

234.00

Available Options:
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
LCDs and Touchscreens
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
