The SoM-100ES provides access to all the SoM's I/O through on-board connectors as well as a number of additional I/O expansion blocks such as A/D, D/A, Digital I/O, Modem, and MMC/SD flash disk. Full schematics of the SoM-100ES are provided giving the user a solid base with which to design their own SoM Carrier. Schematics of the SoM-100ES are included on the CD provided with the Carrier board.

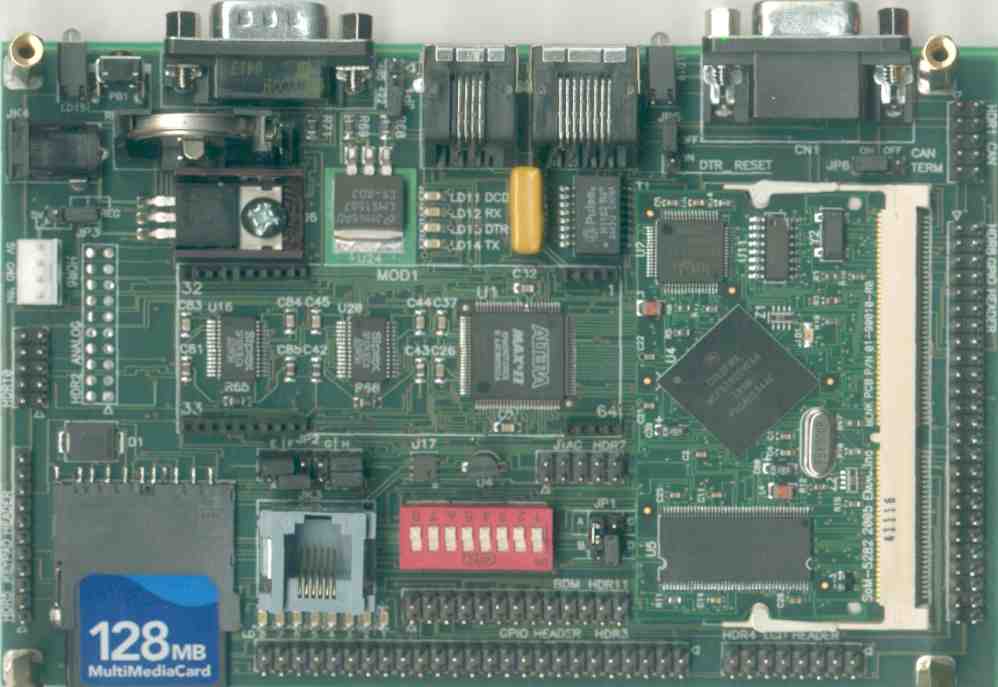

Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the SoM-100ES when coupled with a SODIMM SoM makes for a powerful Remote Data Acquisition and Control system with Modem and Ethernet capabilities. This allows the user to gather data and respond with Control commands via the Internet. An Enclosure and Power Supply are available options for the SoM-100ES.

When a unique custom board is required for an application, the amount of design work required is greatly minimized by the SoM approach. The custom Carrier designer does not have to worry about the processor, memory, and standard I/O functions and can concentrate on the I/O, connectors and dimensional aspects required for the application.

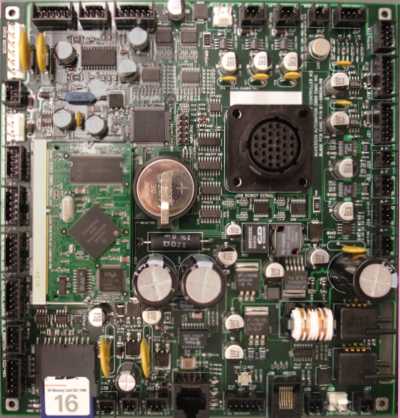

In situations where a custom Carrier is required but the customer does not have the capability to design such a board in-house, EMAC's Custom to Order Services (COS) can be utilized (see Custom Carrier example on right). Using COS the customer can select from a library of standard I/O blocks. These blocks can be put together quickly into a form-factor of the customer's choosing, providing prototypes in as little as 30 days.

SoM Benefits

STANDARD FEATURES

• Small, Half-EBX form factor (4.0" x 5.75")
• 10/100 BaseT Ethernet with onboard Magnetics and RJ45
• 2 serial RS232 ports and 1 RS232/485 port
• 32, General Purpose digital (PLD) I/O lines in addition to SoMs I/O lines
  • 8 digital input lines with dipswitch provision
  • 8 digital output lines with status LEDs (20 ma. drive)
  • 8 High Drive digital output lines (500 ma. sink)
  • 8 digital general purpose inputs lines
• 25 SoM Specific lines
• 24 key, keypad interface
• Character LCD interface
• Battery for nonvolatile RAM and Real Time Clock
• MMC/SD Flash Card Socket
• CAN port
  (module must support CAN)
• 1-Wire® RJ11 Jack with onboard Temperature Sensor
  (module must support 1-Wire)
• V90 Modem or Wireless Modem Socket
• System Reset button
• Power and Flash Drive Status LEDs

ON-BOARD OPTIONS FOR STANDARD CARRIER

• 8 channel 12-bit A/D single ended / 4 channel differential
• 4 channel 12-bit D/A
• V90 Socket Modem or Wireless Socket Modem

BARE-BONE FEATURES

• Small, Half-EBX form factor (4.0" x 5.75")
• 10/100 BaseT Ethernet with onboard Magnetics and RJ45
• Battery for nonvolatile RAM and Real Time Clock
• MMC/SD Flash Card Socket
• 3 serial RS232 ports
• System Reset button

OTHER OPTIONS

• MBPC-200 Enclosure: This MicroBox metal chassis is an ideal housing for the SoM-100ES and Som. ·
• PS-50A Power Supply: A 50 Watt switching power supply that has an AC input of 100 to 240 Volts and DC outputs of +5 Volts and +12 Volts. The PS-50A is especially designed to operate with the MBPC-200 MicroBox chassis.
• Brick Power Supply: A 30 Watt switching power supply that has an AC input of 120 Volts and DC outputs of +5 Volts and +12 Volts. This power supply can be used with the MBPC-200 MicroBox chassis.
• Wall-Mount Power Supply: An inexpensive 9 Volt DC supply capable of 500 ma. of current.

SPECIFICATIONS

Mechanical and Environmental

• Dimensions: Half-EBX form factor with dimensions of 4.0" x 5.75"
• Power Requirements: Typical 5 - 15 Volts @ 300 ma. including SoM
• Operating Temperature: 0~70° C (32~158° F), fanless operation
• Operating Humidity: 0%~90% relative humidity, non-condensing

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

SoM-100ES-007 .. Bare-BOnes SoM-100ES Carrier Board with CD

SoM-100ES-000 .. SoM-100ES StAndARD Carrier Board with CD

SoM-100ES-030 .. Standard Carrier with A/D, D/A, & CD

MBPC-200 ....... Half-EBX MicroBox Chassis

PS-50A ......... 50W, AC input +5/+12 DC Power Supply

PER-PWR-00041 .. Brick 30W PS w/ HDD & FDD connector +5/+12 V_DC

PER-PWR-00030 .. 9 V @ 500 mA. PS (110 V @ 60 Hz US)

PER-PWR-00031 .. 9 V @ 500 mA. PS (220 V @ 50 Hz EUROPE)

PER-COM-00005 .. 56K Dial-up socket modem module

Additional Options:
Enclosures and Power Supplies
Terminal Boards
Character LCDs and Keypads
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
