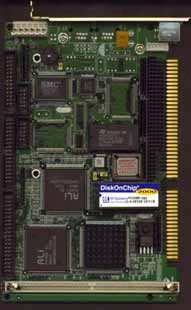

The SBC-411 is an all-in-one CPU card that supports L2 cache sizes from 128 KB to 512 KB (32KB x 8, 64KB x 8, 128KB x 8). This CPU card uses the M1489/M1487 chipsets, along with and AMD 486DX5-133 CPU onboard. The SBC-411 is fully PC/AT compatible, so your software will run without modifications.

On-board features include two high-speed serial ports (RS-232 and RS/232/422/485) with 16C550 UARTs, one bi-directional parallel port, and a floppy drive controller. If program execution is halted by a program bug or EMI, the board's 15-stage watchdog timer can automatically reset the CPU or generate an interrupt. This ensures reliability in unmanned or stand-alone systems.

The SBC-411 is built with two high speed local bus Enhanced IDE controllers that support (through ATA PIO) mode 3 and mode 4 hard disks. Data transfer rates in excess of 11 MB/second are achievable. It connects up to four IDE devices, including large hard disks, CD-ROM drives, tape backup drives, etc. The built-in enhanced IDE controller provides a 4-layer 32-bit posted write-buffer and a 4-layer 32-bit read-prefetch buffer to boost IDE performance.

The SBC-411 supports 5V EDO DRAM. It also provides one 72-pin SIMM (Single In-line Memory Module) sockets for on-board DRAM.

The SBC-411 uses CMOS components and complies with the "Green Function" power management standard. If you need any additional functions, you can add industry-standard PC/104 expansion modules. We provide numerous PC/104 modules to meet your system requirements. You can even have us custom design a module if the functions you need are not available.

FEATURES

486DX5-133
Half-size ISA bus CPU card
128 KB secondary cache included, expandable up to 512 K
Up to 64 MB of on-board DRAM; supports 5V EDO DRAM
2 built-in enhanced IDE (AT bus) hard disk drive interfaces, 1 floppy drive controller
One RS-232 and one RS-232/422/485 selectable serial port; uses 16C550 UARTs with 16-byte FIFO
One bi-directional parallel port
Watchdog timer, software programmable from 2 to 32 seconds (15 steps, 2 seconds per step)
On-board keyboard connector and/or PS/2 mouse
IDE HDD auto-detection
Connectors for PC/104 module expansion
Single +5V power supply
"Green Function" supports power management

SPECIFICATIONS

CPU: 486DX5-133 Processor
Bus Interface: ISA-bus
Data Bus: 32-bit
Processing Ability: 32-bit
Chipset: ALi 1489/1487
RAM Memory: 128 MB. Uses one 72-pin SIMM sockets
L2 Cache Memory Size: 64 KB to 512 KB 2nd level cache memory socketed
Shadow RAM Memory: Supports system and video BIOS shadow memory of up to 256 KB in 32 KB blocks
Enhanced IDE Hard Disk Drive Interface: Fast PCI bus. Supports up to four enhanced IDE (ATA-2) large hard disk drives or other enhanced IDE devices. Supports mode 3 and mode 4 hard disks (data transfer rate 11.1 MB/sec. minimum)
Floppy Disk Drive Interface: Supports up to two floppy disk drives, 5.25" (360 KB and 1.2 MB) and/or 3.5" (720 KB, 1.44 and 2.88 MB)
Bi-directional Parallel Port: Configurable to LPT1, LPT2, LPT3 or disabled. Supports SPP/EPP/ECP standards
Serial Ports: Two serial RS-232 ports, uses 16C550 UARTs with 16-byte FIFO buffer. Supports speeds up to 115 Kbps. Ports can be individually configured from COM1 to COM4 or disabled with multiple IRQ selections
BIOS: AMI Flash WIN BIOS
Watchdog Timer: Can generate a system reset, NMI or IRQ15. The time interval is software selectable from 2 to 32 seconds (15 steps, 2 seconds per step).
PC/104: 104-pin connector for PC/104 16-bit bus
DMA Channels: 7
Interrupt Levels: 15
Keyboard-PS/2 Mouse: A 6-pin mini DIN keyboard connector is located on the mounting bracket for easy access to a keyboard and a PS/2 mouse
Bus Speed: 8 MHz
Max. Power Requirements: +5 V @ 2.5 A
Power Supply Voltage: +5 V (4.75 V to 5.25 V), +12 V, -12 V
Operating Temperature: 32° to 140° F (0° to 60° C)
Board Size: 7.3" (L) x 4.8" (W) (185 mm x 122 mm)
Board Weight: 1.2 lbs (0.5 kg)

PRICING (Single Unit. Includes: Integration, Setup, and Testing)
Not Recommended for New Designs. Consider: PCA-6741

SBC-411 ..... 486DX ISA Card SBC w/ PC/104	213.00
SBC-411E .... 486DX ISA Card SBC w/ PC/104 & Ethernet	228.00
