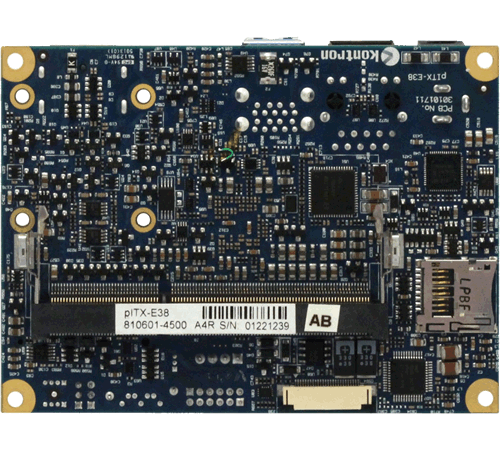

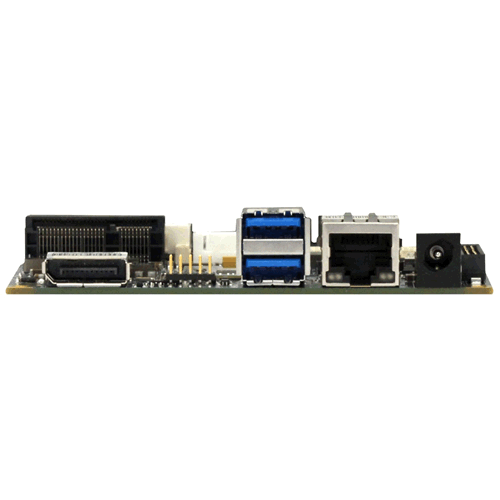

SBC-8106


  • Intel® Atom™ E3815,  E3826 or E3845 CPU
  • Up to 8GB DDR3L SODIMM
  • 2x Serial ports
  • 3x USB 2.0, 1x USB 3.0 Port
  • 1x Gigabit Ethernet
  • LVDS or HDMI/DP

The SBC-8106 form factor is ideal for compact PC applications. Due to its small size (100 x 72mm) it’s easily integrated into virtually any system with severe space constraints and/or thermal restrictions, where other form factor simply will not fi t the requirements. The compact size of SBC-8106 gives the board a unique advantage over traditional PC based motherboards like the mITX or Flex to become the preferred choice in any compact applications. The industry target for smaller size and lower power plays a bigger role these days. The pITX form factor is becoming more popular due to its increasing performance and substantial range of connectivity options, while still maintaining its compact size and low power consumption. Not only are SBC-8106 compact in size, but it also offers leading edge CPU and GPU performance with the next generation Intel® Atom™ System on Chip (SoC) and a large variety of high-speed interfaces.

Features


  • Intel® Atom™ E3815 / E3826 (1.46GHz) or E3845 (1.91GHz) SoC
  • Up to 8GB DDR3L-1333/1066 (E3815/E3826 DDR3L-1066)
  • 2x Serial ports UART 16550 (3v3 DIO)
  • 3x USB 2.0 1x USB 2.0/3.0 Ports
  • 1x 10/100/100 Mb/s Ethernet with RJ45
  • LVDS/DP
  • LVDS 24Bit dual channel and Display Port 1.1a
  • 1x SATA 2.0, 1x mSATA shared with mPCIe
  • 1x mPCIe® 2.0 port
  • 10x GPIO
  • 1x microSD card slot (SDXC)
  • Pico-ITX, P-ITX or 2.5" SBC form factor
  • HD Analog audio interface (Line-In, line-out, Mic-In)
  • Operating Temperature: -25°C to +75°C
  • 10% to 90% relative humidity (non-condensing)
  • Passive (5W SoC) and active (7-10W SoC) cooling solutions
  • Power Requirements: 5V
  • Dimensions: 100 x 72 mm

Overview


The SBC-8106 form factor is ideal for compact PC applications. Due to its small size (100 x 72mm) it’s easily integrated into virtually any system with severe space constraints and/or thermal restrictions, where other form factor simply will not fi t the requirements. The compact size of SBC-8106 gives the board a unique advantage over traditional PC based motherboards like the mITX or Flex to become the preferred choice in any compact applications. The industry target for smaller size and lower power plays a bigger role these days. The pITX form factor is becoming more popular due to its increasing performance and substantial range of connectivity options, while still maintaining its compact size and low power consumption. Not only are SBC-8106 compact in size, but it also offers leading edge CPU and GPU performance with the next generation Intel® Atom™ System on Chip (SoC) and a large variety of high-speed interfaces.

The SBC-8106 offers two display outputs delivering high resolution video content to LVDS driven panels or Display Port monitor as well as 3D graphics performance in a low power envelope. Not only does the low power Intel Atom™ Core provide high resolution video playback, 3D graphics and CPU core performance, but it also offers a wide range of standard interfaces. This makes the SBC-8106 board ideal for applications where compact size and standard interfaces like Gigabit Ethernet, SATA, mSATA & mPCIe are desired in a low power environment. Supporting OS bootable high capacity, high speed microSD media cards shrinks the footprint even more as applications do not necessarily require external use of SSD or HDD devices connected to the SATA port. Furthermore, the SBC-8106 board supports high-speed DDR3L memory modules which can be operated over a wide temperature range, with a passively Intel® Atom™ core cooled environment and powered by a single supply of 5Volts. The SBC-8106 supports a wide variety of Embedded and non-Embedded operating systems and 7 years supply longevity.

Manuals
Data Sheets

Specifications


Processor
CPU
Intel® Atom™ E3815 / E3826 or E3845 CPU
Clock Speed
1.91 GHz
Memory
RAM
Up to 8GB DDR3L-1333/1066 (E3815/E3826 DDR3L-1066)
Primary Flash
mSATA
Secondary Flash
Micro SD Card
Primary IO
GPIO
8x GPIO
SDIO
1x microSD card slot (SDXC)
Disk Interface
1x SATA 2.0 / 1x mSATA shared with mPCIe
Audio
HD Analog audio interface (Line-In
Video Out
LVDS 24Bit dual channel and Display Port 1.1a
Ethernet
1x 10/100/100 Mb/s Ethernet with RJ45
USB
3x USB 2.0 1x USB 2.0/3.0 Ports (2 on front I/O & 2 internal)
Serial Ports
2x Serial ports UART 16550 (3v3 digital inputs/outputs)
Secondary IO
Display
LVDS Interface
LVDS dual channel 24-bit DP 1.1a Up to 1920x1200 / DP Up to 2560x1600
Multi-Display
2x Independent Outputs (LVDS dual channel 24-bit DP 1.1a) LVDS up to 1920x1200 / DP up to 2560x1600
Expansion
Bus Expansion
1x mPCIe® 2.0 port
Misc
Operating Systems
EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22

Mechanical and Environmental


Dimensions
Size
3.94" ×2.84" (100mm × 72mm)
Dimensions Misc.
100 x 72 mm (Pico-ITX)
Power Requirements
Voltage
5 V
Environmental
Low Operating Temperature-25 C (-13 F)
High Operating Temperature75 C (167 F)
Upper Operating Humidity
90%
Environmental Misc.
10% to 90% relative humidity (non-condensing)

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SBC-810600-000R Pico-ITX, pITX-E38, E3845 QC, 2xCOM, 1xUSB3, 3xUSB2, 1xGbE, Audio, HDMI/DP Call
SBC-810601-000R Pico-ITX, pITX-E38, E3826 DC, 2xCOM, 1xUSB3, 3xUSB2, 1xGbE, Audio, HDMI/DP Call
SBC-810602-000R Pico-ITX, pITX-E38, E3815, 2xCOM, 1xUSB3, 3xUSB2, 1xGbE, Audio, HDMI/DP Call

Peripheral Options


Product # Description Price
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
S7000-NOL-00020 Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) $125.00
