PCM-5823

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

Features

Specifications

Pricing

PCM-5823 Manual

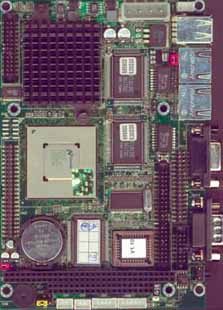

The PCM-5823 NS Geode Series is a 3.5" SBC which offers an onboard NS Geode GX1 300 MHz processor or GX1-233 MHz processor, plus support for dual ethernet for network functions such as Firewall, Router or Gateway functions. Other onboard features include VGA/LCD, a CompactFlash™ card socket, and watchdog timer. With the 586-level NS Geode processor mounted directly on board, upgrade and system configuration is much more convenient as is the benefits of fanless operation in temperatures up to 60° C (140° F). This board is a feature-packed, 586-level, hassle-free solution for space critical applications.

The flexible, dual Ethernet capability of the PCM-5823 gives network administrators another tool to deal with today's changing application needs. The board comes with the top-of-the-line Intel® 82559E LAN chips or cost-effective RTL 8139C LAN chips, depending on users needs. Used as a DMZ device, the PCM-5823 could act as a firewall that sits between the internet and a company's internal network. This applies to Web (HTTP) servers, FTP servers, SMTP (e-mail) servers or DNS servers. The PCM-5823 can also be used as an internet-network gateway (router) that connects a number of local networks. Once again, the dual ethernet capability and processing power of the PCM-5823 gives it the ability to perform these functions. The compact size, low power consumption, and fanless operation allow it to be used "exactly" where you need it as well.

FEATURES

Onboard NS GX1-300 MHz CPU or GX1-233 MHz CPU
Dual Ethernet On board
Provides AC97 Audio interface (optional)
Single +5 V power supply
ISA-bus expansion with on-board PC/104 connector
Compact size: 145 x 102 mm fits in the space of a 3½ " HDD

SPECIFICATIONS

Standard SBC Functions

CPU: Onboard NS GX1-300 processor or Onboard GX1-233 processor
BIOS: AWARD 256 KB Flash memory
Chipset: NS CX5530
System Memory: One 144-pin SO DIMM socket accepts up to 256 MB SDRAM
IDE interface: Supports up to two EIDE devices. BIOS auto-detect, PIO Mode 3 or Mode 4 transfer, Ultra DMA33 mode (ATA-4) up to 33 MB/sec
FDD interface: Supports up to two FDDs
Serial ports: One serial RS-232 port, one serial RS-232/422/ 485 port
Watchdog timer: Software enable/disable intervals at 1.6 seconds
Parallel port: One parallel port, supports SPP/EPP/ECP mode
Keyboard/mouse connector: Mini-DIN connector supports standard PC/AT keyboard and PS/2 mouse
USB interface: Two USB ports connectors on the front side
Infared port: Supports up to 115 Kbps transmitting rate
Power management: APM 1.1 compliant power management
PC/104 expansion: 104-pin 16-bit PC/104 module connector

SVGA/Flat Panel Interface

Display type: Simultaneously supports both CRT and 18-bit TFT LCD displays (supports 3.3 V LCD) VGA/Flat-Panel Interface
Chipset: NS CX5530
Display memory: 1 ~ 4 MB shared with system memory
Interface: Non-interlaced CRT monitor resolution up to 1024 x 768 @ 16 bpp or 1280 x 1024 @ 8 bpp - Panel resolutions up to 1024 x 768 @ 18 bpp TFT panel

Ethernet Interface

Chipset: Intel® 82559 for the PCM-5823-G only or the Realtek™ RTL 8139 chip for the PCM-5823-D only
Ethernet interface: PCI 10/100 Mbps Ethernet, IEEE 802.3u protocol compatible
Connectors: 2 RJ-45 connectors with LED on the frontside

Audio Function

Chipset: NS CX5530
Interface: Supports AC97 interface for optional audio module

Solid State Disk

Supports: 50-pin socket for CompactFlash™ card

Mechanical and Environmental

Power requirements:
- Maximum: 5 V @ 4 A (4.75 ~ 5.25 V)
- Typical: +5 V @ 1.5 A (for GX1-300 and GX1-233)
Dimensions: 145 mm x 102 mm (5.7" x 4")
Weight: 0.77 kg (1.70 lbs) (weight of total package)
Power supply Voltage: +5 V (4.75 ~ 5.25 V)
Operating temperature: 32° to 140° F (0° to 60° C)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
Consider: PCM-9375

End of Life, and no longer on Stock

PCM-5823E ... GX1-233 CPU, VGA/LCD, Dual RTL Ethernet	Call
PCM-5823G ... GX1-300 CPU, VGA/LCD, Dual Intel Ethernet	Call

(Flash Disk and RAM not included.)

Available Options

CAB-20-001-1 ... 44-pin to dual 40-pin EIDE Cable	20.00
PCM-231A ....... Audio Module for PCM-5823	39.00

System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
LCDs and TouchScreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
