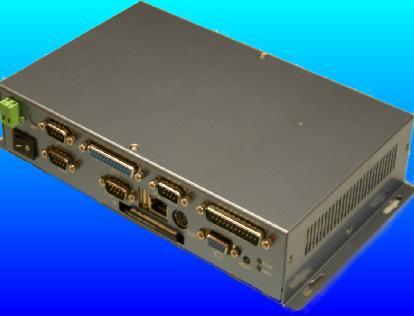

MBPC-200 Image

EMAC, has a number of chassis for housing Half-EBX, 3.5" SBCs. All of these chassis have punchouts for serial, ethernet and video ports. However, the different coast lines of some SBC require that a unique chassis be constructed.

The EB-20x PC chassis are an ideal case for system integrators using Half-EBX form factor Single Board Computers.

The Triple Height chassis allows for up to two PC/104 module in addition to an internal hard drive.

The chassis listed on this page do not work for all 3.5" Half-EBX SBCs. Please contact EMAC to determine what SBCs are supported by these chassis.

FEATURES and SPECIFICATIONS

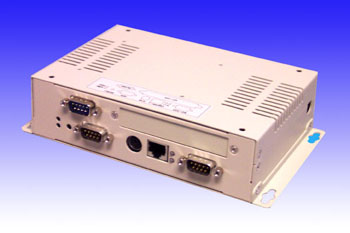

Standard MBPC-200 Chassis (Limited Availability)

1 expansion slot for PC/104
External 2.5" HDD drive provision
Phoenix type connector for power input
Dimensions: 39.5 mm x 166 mm x 114 mm (1.55" x 6.53" x 4.45")
Combined weight: 1.1 kg (2.42 lbs)
Uses PER-PWR-00042-0 Power Supply

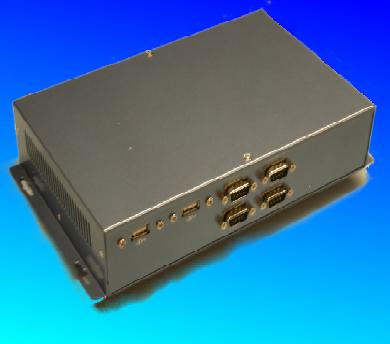

EB-20x Chassis

1 CF Slot
2.5" HDD drive bay
Power switch
Phoenix type connector for power input
Built in mounting brackets
Dimensions: 50.8 mm x 254 mm x 146 mm (2.0" x 10.0" x 5.75")
Combined weight: 1.1 kg (2.42 lbs)
Uses PER-PWR-00042-0 Power Supply

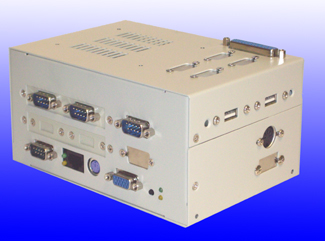

Triple High Chassis

2 expansion slots for PC/104
Optional 2.5" internal HDD drive bay
Optional second Ethernet port
Dimensions: 70 mm x 166 mm x 114 mm (2.75" x 6.53" x 4.45")
Weight: 0.4 kg (1.0 lbs)
Uses PER-PWR-00043 Power Supply

Power Supply PS-50A (End Of Life)

Output rating: 50 W
Input Voltage: 100 to 240 VAC auto
Input Frequency: 50 to 60 Hz
Output Voltage: +5 V @ 4.5 A, +12 V @ 2 A
Dimensions: 44 mm x 166 mm x 113 mm (1.73" x 6.53" x 4.45")
Connector: 4 Position Screw Terminal
Combined weight: 1.0 kg (2.2 lbs)

Power Supply PER-PWR-00041 (Plastic Brick Type)

Output Rating: 30 W
Input Voltage: 100 to 240 VAC auto
Input Frequency: 50 to 60 Hz
Output Voltage: +5 V @ 3 A, +12 V @ 1.5 A
Dimensions: 108 mm x 64 mm x 44 mm (4.25" x 2.5" x 1.75") with 1.8 m (6') cord, includes 1.8 m (6') standard PC power cord
Connectors: Floppy Disk Drive & Hard Disk Drive
Weight: 0.45 kg (1.0 lbs)

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

EB-206/207/208 .. Half-EBX MicroBox Chassis	75.00
MBPC-200 ........ Half-EBX MicroBox Chassis	CALL
PER-ENC-00002.... Triple high Half-EBX MicroBox Chassis	95.00

Available Add-ons

PS-50A .......... 50W AC-DC Power Supply	CALL
mbpc-200-HD ..... 2.5" HDD Cover	CALL
PER-PWR-00041 ... 30W AC-DC PS w/FDD/HDD Connector	50.00
PER-ADP-00014 ... RJ45 Adapter for Dual LAN (for MBPC-200)	50.00

Available Options
Single Board Computers (SBC)
Central Processing Unit (CPU)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Flash Memory (DiskOnChip®)
Operating Systems
PC/104 Modules
Power Supplies
Wiring Terminals and Interface Modules
LCDs and Touchscreens>LCDs and Touchscreens
Signal Conditioning Cards
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
