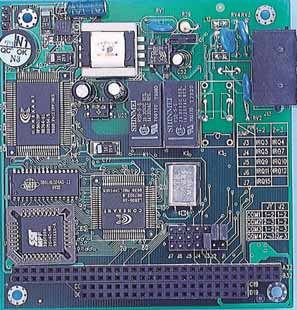

PCM-36E05 PC/104 FAX MODEM

The PCM-3601 data/voice/fax modem module uses Conexant DSP (hardware data pump), which meets the ITU-T V.90 standard of 56K bps maximum data transmission speed without additional CPU loading. It also supports the G3 fax standard of 14.4 K fax transmission rate and full duplex voice functionality. The rugged industrial PC/104 form factor makes it a great fit for space-limited and harsh environment applications.

FEATURES

56 K Data/Fax modem
Conexant modem data pump
Full duplex
Error Correction & Data Compression
High speed 16550A UART
Uses Single 5 V DC Supply

SPECIFICATIONS

Data mode: CCITT V.90, K56Flex, V.34, V.32bis, V.32, V.23, V.22 bis, V.22, V.21, Bell 212A/103
Fax mode: ITU-T G3 fax modulation, T.30, V.17, V.29, V.27ter, V.21 CH2. Supports Class 1 & Class 2 commands
Hardware error correction & data compression: ITU-T V.42 & V.42 bis, MNP class 2- 5
Modem speed: 56 Kbps max.
Fax speed: 14.4 Kbps
Dialing type: Pulse or Tone
Power consumption: 350 mA (typical @ 5Vdc)
Operating environment: 0 - 55 degree C

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

EOL, For a replacement Contact Us

PCM-3601 ... 56 K Fax/Modem PC/104 Module

USD 155.00
