PPC-04-3354
- TI AM3354 ARM Cortex-A8 1 GHz processor
- 512MB of DDR3 RAM, 4GB eMMC Flash & 16MB Serial Data Flash
- Ultra compact 480x272 screen with LED Backlight
- EMAC OE Linux, optional Android
Receive consultation or quotes about this product from our sales staff.
Request a quoteThe PPC-04-3354, an ultra compact Panel PC with a 4.3 inch WQVGA (480 x 272) TFT color LCD and a resistive touch screen. The dimensions of the PPC-04-3354 are 4.8” by 3.0”, about the same dimensions as that of popular touch cell phones. The PPC-04-3354 is small enough to fit in a 2U rack enclosure.
Features
- WQVGA (480 x 272) Resolution with LED Backlight
- TI AM3354 ARM Cortex-A8 1 GHz processor
- Inexpensive Open-Frame Design
- 10/100 Base-T Ethernet
- 3 RS232 & 1 RS232/422/485 Port
- 1 USB 2.0 (High Speed) Host port
- 1 USB 2.0 (High Speed) OTG Port
- 512 MB embedded SDRAM
- Up to 16GB eMMC Flash
- Up to 16MB of Serial Data Flash
- Battery backed Real Time Clock
- Micro SD Flash Card Socket
- 1 SPI & 1 I2C port
- 1 Audio Beeper
- Timer/Counters and Pulse Width Modulation (PWM) ports
- 8 A/D Channels with 12-bit Analog-to-Digital converter
- Graphic LCD Interface
- Touchscreen Interface and Software Controlled Backlight On/Off & Brightness
- JTAG for debug, including real-time trace
- FREE Eclipse IDE with GCC & GDB development tools
- Linux or Android Operating system
- Optional Power Over Ethernet (POE)
- Optional Audio with Line-in/out
Overview
The PPC-04-3354, an ultra compact Panel PC with a 4.3 inch WQVGA (480 x 272) TFT color LCD and a resistive touch screen. The dimensions of the PPC-04-3354 are 4.8” by 3.0”, about the same dimensions as that of popular touch cell phones. The PPC-04-3354 is small enough to fit in a 2U rack enclosure.
Unlike other compact Panel PCs, the PPC-04-3354 comes with EMAC's Embedded Linux distribution installed and fully configured on the onboard flash disk. This allows the software engineer to concentrate on writing applications and not have to worry about configuration and setup. Just apply power and watch the User Interface appear on the vivid color LCD, Linux X-Windows desktop. Interact with the PPC-04-3354 using the responsive, integrated touch screen.

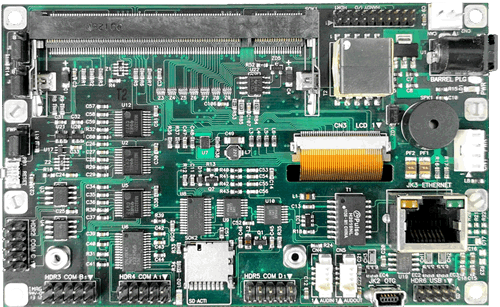

The PPC-04-3354 compact Panel PC utilizes a System on Module (SoM) for the processing core. This allows the user to easily upgrade, if more memory capacity, storage capacity or processing power is required. The PPC-04-3354 includes an embedded ARM A8 SoM; this ARM System on Module features a 1GHz Fanless Low Power Processor with Video and Touch. The SoM provided with the PPC-04-3354 supports up to 512MB of Embedded SDRAM, Up to 16GB of embedded eMMC Flash, and 16MB of serial data flash. Typical power consumption is less than 5 Watts and the LED backlight can be shut off when not in use to further decrease its power consumption.

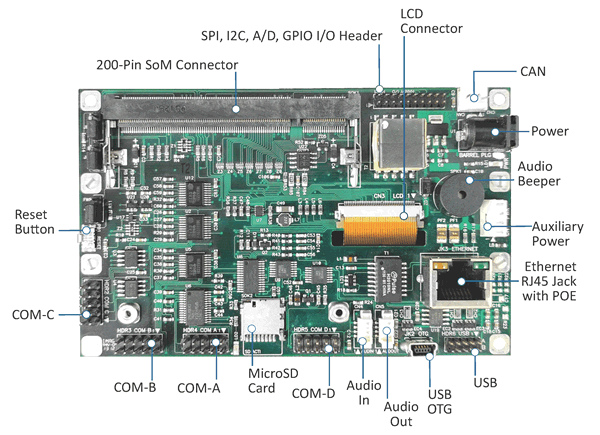

The PPC-04-3354 offers three RS-232 serial ports, and one RS232/422/485 port. Also provided are two USB 2.0 host ports, an Audio Beeper and a battery backed real time clock. A Micro SD card socket is provided for additional Flash storage. The PPC-04-3354 can be connected to a network using the 10/100 Base-T Ethernet controller and its onboard RJ-45 connector.
When developing CE 6.0 application for the PPC-04-3354, Microsoft Visual Studio 2005/2008 can be utilized. For Embedded Linux application development, EMAC provides a Free Eclipse IDE. Both Visual Studio and Eclipse provide everything the user needs for developing PPC-04-3354 applications. All the compiling, linking, downloading, and debugging inherent to software development can be done from one easy to use high level interface. EMAC provides an SDK for the PPC-04-3354, which contains source examples and drivers.
| Manuals | |
|---|---|
| PPC-04-3354_User_Manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| SoM-3354_Datasheet.pdf | Download (PDF) |
| PPC-04-3354_Datasheet.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | TI ARM Cortex A8 based Processor AM3354 |
| Clock Speed | 1 GHz |
| Memory | |
|---|---|
| RAM | 512 MB of DDR3 memory onboard |
| RAM Type | Embedded DDR3 SDRAM |
| Primary Flash | 4GB of eMMC Flash |
| Secondary Flash | 16MB of Serial Data Flash |
| Memory Misc. | upgrade to 16 GB eMMC Flash optional |
| Primary IO | |
|---|---|
| GPIO | 16x GPIO, (5x dedicated GPIO, 11x Configurable I/O) |
| Disk Interface | Micro SD |
| Audio | I2S Audio port with Line-In/Line-Out & beeper |
| Ethernet | 10/100 BaseT ethernet (POE optional) |
| USB | 1x USB Host, 1x USB OTG |
| Serial Ports | 3x RS-232 with handshaking, 1x RS-232/422/485, high-speed SPI with chip selects, I2C |
| Primary I/O Misc. | Some IO configuration can be changed in the software to operate differently, IO functions are listed as configured by default.
|
| Secondary IO | |
|---|---|
| CAN | 2.0B Port |
| Timers/ Counters/ PWM | 2x 3 channel, 16-bit timers/counters with capture, compare, and PWM, 20-bit interval timer plus 12-bit interval counter |
| Touch | 12-Bit 4-wire analog resistive Touchscreen |
| Secondary I/O Misc. | Touchscreen
|
| Display | |
|---|---|
| Display Type | 4.3 " TFT Color LCD |
| Resolution | 480 × 272 px |
| Pixel Pitch | 0.198 × 0.198 mm |
| LCD Colors | 265K |
| Luminance | 330 (cd/m²) |
| LCD Misc. |
|
| Analog | |
|---|---|
| A/D Channels | 8 |
| A/D Resolution | 12-bit |
| Analog Misc. |
|
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, Android |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 4.8" ×3" ×1.2" (121mm × 76mm × 30mm) |
| Weight | 5.7 oz |
| Power Requirements | |
|---|---|
| Typical Voltage | 5 V |
| Typical Current | 900 mA |
| Power Misc. |
|
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
Pricing
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PPC-04-3354-0R | 4.3" Open Frame Panel PC w/ Touchscreen, SoM-212ES & SoM-3354M. AM3354 1GHz, 512MB RAM, 4GB eMMC Flash, 4x COM, 2x USB2, 10/100 LAN, 4.3" LCD | $349.00 |
| PPC-04-3354-1R | 4.3" Open Frame Panel PC w/ Touchscreen, SoM-212ES & SoM-3354M. AM3354 1GHz, 512MB RAM, 4GB eMMC Flash, 4x COM, 2x USB2, 10/100 LAN, POE, Audio, 4.3" LCD | $399.00 |
| Build-to-order | |
|---|---|
|
EMAC can build the PPC-04-3354 with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required. |
Call for pricing |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-PWR-00032 | 5V @ 2.5A PS (110V @ 60 Hz US) | $20.00 |
| PER-PWR-00033 | 5V @ 3.2A PS (100-220V @ 47-63 Hz Intl.) | $28.00 |
| Operating Systems | ||
| SL05x-AON-xx | EMAC OE Linux 5.x for ARM | Free |
