MBPC-300

The MBPC-300 MicroBox PC chassis is an ideal case for system integrators using any card from the EBX PC 5 1/4" line of single board computers.

The PS-55A 55 Watt Switching power Supply has an AC input of 100 ~ 240 Volts and DC output of +5 Volts and +12 Volts. The PS-55A is especially designed to operate with the MBPC-300 MicroBox PC chassis.

Features and Specifications

Chassis: 2 expansion slots for PC/104; 2.5" HDD drive bay
Dimensions: 67.5 mm x 223 mm x 151 mm (2.65" x 8.78" x 5.94")
Combined weight: 1.3 kg (2.86 lbs)PS-55A Power Supply

Output Rating: 55W
Input Voltage:88 ~ 240 VAC Auto
Input Frequency: 50 ~ 60 HZ
Output Voltage: +5V @ 8A , +12V @ 1.5A
Dimensions: 223 mm X 65 mm X 45 mm ( 8.78" X 2.56" X 1.77" )
Combined Weight: 0.74 kg (1.63 lb)
Operating Temperature: 0° ~ 45°C (32° ~ 113°F)
Operating Humidity: 0% ~ 90% relative humidity, non-condensing

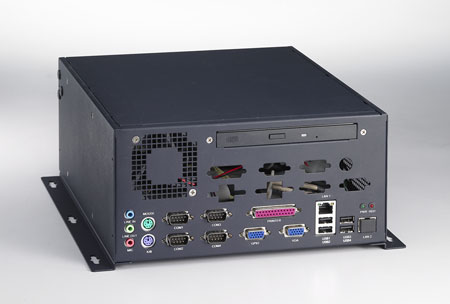

MBPC-400 Image

MBPC-400

The MBPC-400 Micro SBC Box is an ideal chassis for system integration; it offers great flexibility for housing PCM-95xx series 5.25" EBX CPU boards, with potential expansion via PCI interface card and PC/104 extension card. Sporting 4 extendable I/O windows, its compact size allows it to be mounted in equipment as an embedded PC controller.

Features and Specifications

Fits with all 5.25" EBX SBC
Built-in 80 W Power Supply
PC-104 card extension x 2 or PCI slot card x 1 plus PC/104 card x 1
2.5" HDD bay x 1
DRAM and HDD is easy accessible.
60 mm system cooling Fan
2U height for Rack installation
Four I/O widows for an easy and quick Customized I/O extension, as IR, FDD, LPT

Power Supply

Output Rating: 80W
Input Voltage:100 ~ 240 VAC Auto
Input Frequency: 50 ~ 60 HZ
Output Voltage: +5V @ 12A , +12V @ 1A
Dimensions: 290W x 220D x 90H, mm (11.3"W x 8.6"D x 3.5"H)
Combined Weight: 2.5 kg (5.5 lbs.)
Operating Temperature: 0° ~ 45°C (32° ~ 113°F)

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

MBPC-300

MBPC-300 ... MicroBox Chassis	111.00
PS-55A ..... Power Supply for MBPC-300	100.00

MBPC-400

MBPC-400-COMM ..... MicroBox Chassis w/80W POWER SUPPLY	237.00
MBPC-400-9577FG ... MicroBox Chassis w/80W P.S. for PCM-9577FG	248.00
MBPC-400-9578F .... MicroBox Chassis w/80W P.S. for PCM-9578F	253.00
MBPC-400-9579F .... MicroBox Chassis w/80W P.S. for PCM-9579F	295.00
MBPC-400-9580F .... MicroBox Chassis w/80W P.S. for PCM-9580F	315.00
MBPC-400-9581f .... MicroBox Chassis w/80W P.S. for PCM-9581f	253.00
