SoM-DB5700


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

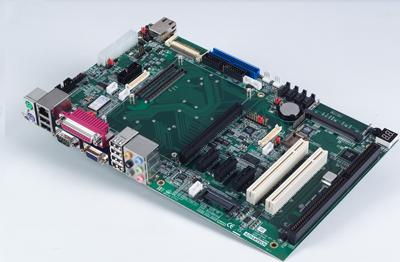

The SOM-DB5700 is versatile SOM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all COM Express type SOMs. The SOM-DB5700 provides access to all the SOM's I/O through on-board connectors.

Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the DB5700 when coupled with a COM Express SOM makes for a nice ATX compatible embedded PC.

Features


  • Standard ATX form factor (7.5" x 12.0")
  • 1 Giga LAN or 10/100 Base T with RJ-45 connector
  • 1 serial RS232 port and 1 RS232/422/485 port
  • Keyboard/Mouse connectors
  • 8 USB 2.0
  • 2 PCI Slots
  • 4 PCIe Slots
  • 1 Express Slot
  • 1 MiniPCI and 1 ISA Slots
  • VGA DB15 Video Connector and LCD connector
  • High Definition Audio
  • 4 SATA and 1 IDE connectors
  • ATX power connector

Overview


The SOM-DB5700 is versatile SOM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all COM Express type SOMs. The SOM-DB5700 provides access to all the SOM's I/O through on-board connectors.

Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the DB5700 when coupled with a COM Express SOM makes for a nice ATX compatible embedded PC.

When a unique Custom Carrier board is required, the amount of design work required is greatly minimized by the SOM approach. The custom Carrier designer does not have to worry about the processor, memory, and standard I/O functions and can concentrate on the I/O and dimensional aspects required for the application.

In situations where a custom Carrier is required but the customer does not have the capability to design such a board in-house, EMAC's Custom to Order Services (COS) can be utilized. Using COS, the customer can select from a library of standard I/O blocks. These blocks can be put together quickly into a form-factor of the customer's choosing, providing prototypes in as little as 30 days.

Manuals
SOM-DB5700_user_manual_Ed1.pdf
Data Sheets
som-db5700.pdf

Specifications


Primary IO
Audio
High Definition Audio
Video Out
VGA DB15 Video Connector and LCD connector
Ethernet
1 Giga LAN or 10/100 Base T with RJ-45 connector
USB
8x USB 2.0
Serial Ports
2x Serial Ports (1x RS232, 1x RS232/422/485)
Secondary IO
PS/2
Yes
Misc
SOM Type
COM Express Carrier Boards

Mechanical and Environmental


Dimensions
Size
7.5" ×12" (190mm × 304mm)
Power Requirements
Power Misc.
  • Voltage Requirements: Typical 3.3 & 5 Volts (12 Volts may be required depending on the SOM being used)
  • Current Requirements: The SOM-DB5700 requires very little current. (Current requirements are basically that of the SOM being used)
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SoM-DB5700-0 COM express development carrier board $315.00
SoM-DB5700G COM Express Development Carrier Board WITH gLAN $293.00

Carrier Board Options


Product #VariationPrice
$0.00
