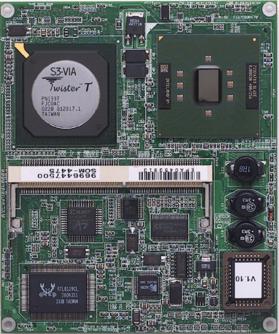

SoM-4475
15spi211SS23 The SoM-4475 is a powerful, fanless SoM CPU module able to drive the most demanding Kiosk, POS and POI applications requiring high performance graphics support. With support for Intel® Mobile Pentium® III and Celeron® processors up to 933 MHz, the SoM-4475 offers developers a low power and scaleable solution that fits a range ofneeds. The VIA VT8606/VT82C686A core chipset is a high performance 3D 4x AGP Graphics engine, giving any platform superior multimedia capability.
Features
- Embedded Intel® LV PIII/ULV Celeron® processor
- Fanless, Celeron 32 ~ 140° F operation (0 ~ 60° C)
- ETX form factor
- Powerful multimedia capability
- 18-bit LCD / 2-channel LVDS interface
Overview
The SoM-4475 is a powerful, fanless SoM CPU module able to drive the most demanding Kiosk, POS and POI applications requiring high performance graphics support. With support for Intel® Mobile Pentium® III and Celeron® processors up to 933 MHz, the SoM-4475 offers developers a low power and scaleable solution that fits a range ofneeds. The VIA VT8606/VT82C686A core chipset is a high performance 3D 4x AGP Graphics engine, giving any platform superior multimedia capability.
Specifications
| Processor | |
|---|---|
| CPU | LV Intel ® Pentium ® III |
| Clock Speed | 933 MHz |
| Processor Misc. |
|
| Memory | |
|---|---|
| BIOS/ Bootloader | AWARD 256 KB Flash BIOS |
| Memory Misc. | 2nd Cache Memory: 64 KB on CPU |
| Primary IO | |
|---|---|
| Disk Interface | 2x EIDE (Ultra DMA66) |
| Audio | VIA VT 82C686 AC 97 2.0 compliant (Mic in/Line in/ Line out) |
| Ethernet | RTL8136C IEEE 802.3u 100 BASE T Fast Ethernet |
| USB | 4x USB, 1x USB 1.1 compliant |
| Serial Ports | 2x Serial Ports |
| Primary I/O Misc. | IrDA: 115 Kbps, IrDA 1.1 compliant |
| Secondary IO | |
|---|---|
| Expansion | |
|---|---|
| Bus Expansion | PCI/ISA |
| Misc | |
|---|---|
| SOM Type | EOL SOMs |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.7" ×4.5" (93mm × 114mm) |
| Power Requirements | |
|---|---|
| Voltage | 5 V |
| Typical Voltage | 5 V |
| Typical Current | 2.44 A |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SoM-4475FL-J | Celeron 400 CPU, VGA, LCD/LVDS, Audio, LAN | Call |
| SoM-4475FL-M | Celeron 650 CPU, VGA, LCD/LVDS, Audio, LAN | Call |
| SoM-4475FL-R | PIII 933 CPU, VGA, LCD/LVDS, Audio, LAN | Call |
Carrier Board Options
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| SoM-FANKIT | Fan Kit for SoM-ETX Modules | Call |
