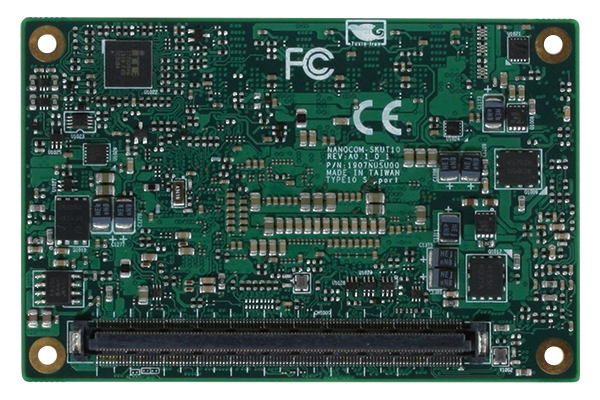

COM-SKU
- Intel® Skylake series SOC
- Onboard 4GB DDR4 memory
- Support Industrial Temperature
32Cpi111CC64
32Cpi111CC64 COM Express Type 10 Module with the 6th Gen Intel® Core™ Series CPUs.
Traditionally powered by SoCs instead of a full-fledged processor due to the limited area, which measures 84 x 55 mm (equivalent to a business card), the NanoCOM-SKU, the latest entry to the company’s NanoCOM product line, greatly improves on that with an Intel® Core™ i7-6600U CPU, along with a maximum of 4 GB of onboard DDR4 memory while drawing about 18W of power in full loading, a string of feats still unheard of in the embedded community. SKUs with other Core processors and RAM are also available.
Features
- Intel® Core™ i7-6600U series SOC
- Onboard 4GB DDR4 memory
- 1x Gigabit Ethernet
- 1x DDI,
- 18/24-bit Single-Channel LVDS LCDs/eDP
- High Definition Audio Interface
- 2x SATA
- 2x USB3.0
- 8x USB2.0
- 4x PCI-Express〔x1〕
- 8x GPIO
- SMbus
- I2C
- LPC
- COM Express Mini size, type 10, 84mm x 55mm
- Support Industrial Temperature
Overview
COM Express Type 10 Module with the 6th Gen Intel® Core™ Series CPUs.
Traditionally powered by SoCs instead of a full-fledged processor due to the limited area, which measures 84 x 55 mm (equivalent to a business card), the NanoCOM-SKU, the latest entry to the company’s NanoCOM product line, greatly improves on that with an Intel® Core™ i7-6600U CPU, along with a maximum of 4 GB of onboard DDR4 memory while drawing about 18W of power in full loading, a string of feats still unheard of in the embedded community. SKUs with other Core processors and RAM are also available.
With an exceptional level of performance but still retaining the compactness of the form factor, the module is slated to eliminate the bottlenecks and inadequacies commonly found in Atom™ or other equivalent SoC-powered modules when applied on more performance-demanding applications, which include graphics-intensive medical equipment or digital signage, and high-loading robotics and automation controllers used in industrial automation, bringing not only the best in any situation, but also opening new realm for more possibilities.
Specifications
| Processor | |
|---|---|
| CPU | Intel Skylake Family i7/i5/i3 and Celeron Series SoC Processor |
| Clock Speed | 2.6 GHz |
| Processor Misc. | Intel® Skylake Family i7/i5/i3 and Celeron Series SoC Processor
|
| Memory | |
|---|---|
| RAM | 4GB DDR4 Onboard |
| Memory Misc. | Non-EEC DDR4-2133, 4GB DDR4 Onboard Standard, Other options Build to order |
| Primary IO | |
|---|---|
| GPIO | 8-Bit |
| SDIO | 1x SDIO |
| Disk Interface | 2x SATA |
| Audio | High definition audio interface |
| Video Out | LVDS/eDP, DDI x 1 |
| Ethernet | Intel® I219 GbE |
| USB | 2x USB3.0, 8x USB2.0 |
| Serial Ports | 2x 2-Wire |
| Secondary IO | |
|---|---|
| I2C | 1x i2C |
| Expansion | |
|---|---|
| Bus Expansion | 4x PCIe (x1) |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ) |
| SOM Type | COM Express Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.307" ×2.165" (83mm × 54mm) |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Power Misc. | i7-6600U 12V@1.5A. Under 100% loading. |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | (OPTIONAL WIDE TEMP : -40°C ~ 85°C) |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| COM-SKUW7-042R | NANOCOM-SKUW2-A10-0001 i7-6600U 2x 2.6GHz, 4GB DDR4, 2x SATA, 2x COM, 2x USB3, 8x USB2, 1x GbE LAN, 1xDDI, LVDS -40~85° C | $1115.00 |
| COM-SKUi3-042R | NANOCOM-SKU-A10-0003, i3-6100U 2x 2.3GHz, 4GB DDR4, 2x SATA, 2x COM, 2x USB3, 8x USB2, 1x GbE LAN, 1xDDI, LVD | $612.00 |
| COM-SKUi7-042R | NANOCOM-SKU-A10-0001, i7-6600U 2x 2.6GHz, 4GB DDR4, 2x SATA, 2x COM, 2x USB3, 8x USB2, 1x GbE LAN, 1xDDI, LVDS | $1036.00 |
| Build to Order | ||
| COM-SKUi5-042R | NANOCOM-SKU-A10-0002, i5-6300U 2x 2.4GHz, 4GB DDR4, 2x SATA, 2x COM, 2x USB3, 8x USB2, 1x GbE LAN, 1xDDI, LVDS | $875.00 |
| COM-SKUiC-042R | NANOCOM-SKU-A10-0004, C-3955U 2x 2.0Ghz, 4GB DDR4, 2x SATA, 2x COM, 2x USB3, 8x USB2, 1x GbE LAN, 1xDDI, LVDS | $300.00 |
Carrier Board Options
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-FAN-0014PR | NANOCOM-FAN01, CPU Cooler 84*55*22.2mm Silver use with Heat Spreader (HSP not included) | $25.00 |
| PER-FAN-0015PR | NANOCOM-SKU-HSP01 Heat Spreader 84*55*11mm Black NanoCOM-SKU (additional cooling required, Cooling not included) | $30.00 |
