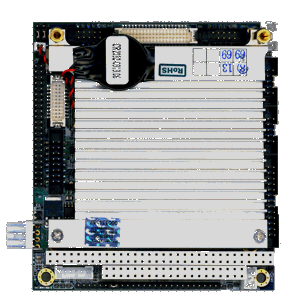

PCM-3375


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The PCM-3375 utilizes an onboard VIA 533 MHz Mark Fanless processor, which has an integrated VIA Twister chipset, making the PCM-3375 one of the smallest and powerful SBCs on the market. Unlike other high-end PC/104 SBCs, the PCM-3375 maintains the true PC/104 standard form-factor and does not require “wings”. The PCM-3375 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. PC/104- I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 expansion modules.

Features


  • VIA Mark 533MHz Fanless CPU
  • Supports CompactFlash
  • PC/104 Expansion Interface
  • 10/100BaseT Ethernet
  • 18-bit LCD & CRT interface

Overview


The PCM-3375 utilizes an onboard VIA 533 MHz Mark Fanless processor, which has an integrated VIA Twister chipset, making the PCM-3375 one of the smallest and powerful SBCs on the market. Unlike other high-end PC/104 SBCs, the PCM-3375 maintains the true PC/104 standard form-factor and does not require “wings”. The PCM-3375 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. PC/104- I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 expansion modules. The PCM-3375 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

The integrated Savage4™ AGP 4X 3D Graphics core maintains excellent graphics performance and provides VGA/LCD support up to 1400 x 1050. SDRAM memory capacity up to 256MB is large enough to drive the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE.net, Windows NTE, and DOS 6.22. A CompactFlash socket supports Type I/II CompactFlash Cards, which can be used to eliminate the use of fragile hard disks, increasing reliability in harsh environments. Two USB 1.1 ports are available as well as one parallel port (SPP/EPP/ECP modes), one high-speed RS-232 and one high-speed RS-232/485/422 serial port. With its industrial grade reliability, the PCM-3375 can operate continuously at temperatures up to 140º F (60º C) without a fan. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability (no moving parts) are essential.

Specifications


Processor
CPU
VIA Mark Fanless CPU
Clock Speed
533 MHz
Processor Misc.

Chipset: VIA VT8606

Memory
RAM
Up to 512MB SODIMM PC133 SDRAM
Primary Flash
1x CompactFlash™ card Type I
Memory Misc.

Display

  • Up to 1280 x 1024 CRT, and 1024 x 1024 18-bit LCD
Primary IO
Disk Interface
1x FDD, 1x EIDE (DMA 33)
Ethernet
Intel 82551ER 10/100 Base-T Fast Ethernet
Serial Ports
1x Parallel, 1x RS-232, 1x RS-232/422/485
Primary I/O Misc.

Infrared: 115 Kbps, IrDA 1.1 Compliant

Secondary IO
PS/2
Yes

Mechanical and Environmental


Dimensions
Size
3.8" ×3.5" (96mm × 88mm)
Weight
0.097 kg
Power Requirements
Voltage
5 V
Typical Current
1.9 A
Max Boot Current
2.06 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-3375F-l PCM-3375 Mark 533 MHZ W/ LVDS Call

Peripheral Options


Product # Description Price
Cables & Adapters
CAB-40-001-1 USB 2 port cable w/ mounting bracket $11.00
CAB-20-001-1 44-pin to dual 40-pin EIDE Cable $20.00
