PPC-103T Panel PC



Features

Specifications

Pricing



AFL-08B Manual

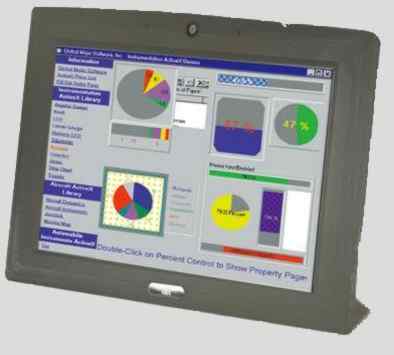

The AFL-08B is an Intel® Atom N270 powered all-in-one touch screenpanel PC with a rich variety of functions and peripheral connections. It is designed for easy and simplified integration into conference center, home automation, and building control applications.

An Intel® 945GSE graphics memory controller hub (GMCH) coupled with an Intel®ICH7M input/output controller hub ensures optimal memory, graphics, and peripheral I/O support. The system comes with 1.0 GB of preinstalled DDR2 SDRAM and supports a maximum of 2.0 GB ensuring smooth data throughputs with reduced bottlenecks and fast system access.

Two serial ports, two USB 2.0 ports, and one external SATA port provide simplified connectivity to a variety of external peripheral devices. Wi-Fi capabilities and two RJ-45 Ethernet connectors ensure uninterrupted connection of the system to an external LAN.

The AFL-08B panel PC is an elegant yet sophisticated system that is as easily implemented in commercial, industrial, and corporate environments as the home.

Applications

  • Point-of-information / Point-of sale terminals
  • Interactive kiosks
  • Entertainment terminals
  • Banking / Office automation
  • Production process control
  • Factory automation systems



FEATURES

  • 8" LED backlight LCD panel with resistive touch screen
  • Intel® Atom process N270 1.6GHz CPU
  • System memory up to 2 GB SDRAM
  • Built-in 300K pixel camera with low light function
  • Built-in 802.11b/g Wireless Giga LAN
  • Built-in digital microphone
  • Built-in two 1.5 W speakers
  • Mini PCIe Socket
  • Bluetooth module


SPECIFICATIONS

General Specifications

  • CPU: Atom N270 1.6 GHz CPU
  • Display Type: 8"" TFT LCD
  • Memory: One 200 pin SODIMM socket up to 2GB DDR, 1GB built-in.
  • Network (LAN): Wireless LAN 802.11 b/g PCIe mini card module
  • Audio: AMP 1.5W + 1.5W internal speakers, built in mic
  • I/O ports:
    • 2 serial ports: RS-232 x 1, RS-232/422/485 x 1
    • 1 parallel port, 2 USB 2.0 ports
    • Two RJ-45 GbE LAN ports
    • One Audio line-out jack
  • SSD: Supports one internal Type II CompactFlash™ socket
  • Watchdog Timer: 255 level timer interval, setup by software, system reset

Power Supply

  • Output Rating : 36 Watts
  • Input Voltage: 90-264VAC @50/60 12VDC
  • Output Voltage: 12VDC

LCD Display

  • Display Type: 8 " TFT LCD
  • Max. Resolution/Colors: 800 x 600 @ 256 K
  • Pixel Pitch: 0.0675 x 0.2025 (mm)
  • Luminance (cd/m2): 300 nits
  • Viewing Angle: 130 ° (horizontal), 120 °(vertical)
  • Backlight MBTF: 30,000 hrs. (LED Backlight)



Mechanical and Environmental

  • Dimensions (W x H x D): 234 x 184 x 42 mm (9.2" x 7.2 " x 1.65 ")
  • Weight:0.8 Kg (1.76 lbs)
  • Operating Temperature: -10 ~ 50 ° C (14 ~ 122 ° F)
  • Relative Humidity: 10 ~ 95% @ 40° C (non-condensing)
  • EMC: CE, FCC, CCC


PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

PPC-Afl-08b ..... PPC 8" w/ Atom 1.6GHz, WLAN, 1GB RAM, CAM

USD876.00

(SSD/HDD not included.)



Other Options:
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash)
Operating Systems
Custom and Semi-custom Engineering Services
