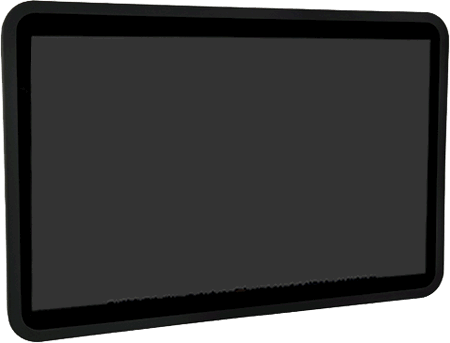

PPC-215T


  • Intel Celeron J1900 Quad Core CPU
  • 21.5" LCD with Full HD Resolution – 1920 x 1080
  • 4 GB DDR3L RAM; 64 GB SATA SSD FLASH
  • Projected Capacitive 10-Point Multitouch Touchscreen

This innovative IP65 Front Capacitive Touchscreen PC with its silent fanless operation, high reliability, and fine craftsmanship, stands out from the competition.

Features




  • Intel Celeron J1900 Quad Core CPU
  • 21.5" LCD with Full HD Resolution – 1920 x 1080
  • 4 GB DDR3L RAM; 64 GB SATA SSD FLASH
  • Projected Capacitive 10-Point Multitouch Touchscreen
  • Optional Bluetooth & GPS
  • 32Bit and 64Bit support, Linux and Win 7/8/10 support
  • Pre-installed Linux
  • Integrated Wi-Fi (Intel 533AN)



Internal Connectors

    • 1x SO-DIMM Slot, max. 8GB, DDR3L-1333 Single channel memory
    • 1x 12V DC power connector (2-pin); 1x 4-pin SATA power connector
    • 2x S-ATA 3GB/s ports; 1x 5-pin LCD power connector
    • 1x VGA pin header; 1x DP-Pin-Header; 1x LVDS connector
    • 1x S/PDIF output pin header
    • 1x Line-Out / Mic-In audio pin header
    • 1x 4-pin (2x2W) audio amplifier connector
    • 1x PS/2 keyboard/mouse connector (6-pin)
    • 1x USB 2.0 header supports additional 4x USB 2.0 ports
    • 3x RS232/RS485 COM connectors, switchable between RS232/RS485 in BIOS
    • 1x 8-bit Digital I/O interface
    • 1x Chassis Fan connector



External Connectors

    • 1x Display port
    • 1x VGA-out (from internal header)
    • 1x USB 3.0
    • 3x USB 2.0 ports
    • 2x COM port Full-PIN (RS232/485; 5V/12V)
    • 2x COM port 3-PIN (RX, TX, GND; RS232/485 switchable)
    • 2× 10/100/1000Mbit RJ45 Ports
    • 2x W-LAN connector  (802.11 a/b/g/n wi-fi adapter onboard)
    • S/PDIF-Out (1x Cinch, 1x Torx)
    • MIC-In, EAR-Out
    • 8x In/Out GPIO as RJ45
    • 1x 12V DC-In (screwable)
    • 1x On/Off-button; 1x Button-Line with On/Off + 4 GPIO-buttons on front panel
    • 1x 2.5“ module slot, changeable SSD included

Expansion Slots

    • 2x Mini-PCIe Card slots with PCIe and USB interface (2x Full Height/Half height changeable)
    • 1x PCIeX1 Straddle connector

Overview


This innovative IP65 Front Capacitive Touchscreen PC with its silent fanless operation, high reliability, and fine craftsmanship, stands out from the competition.

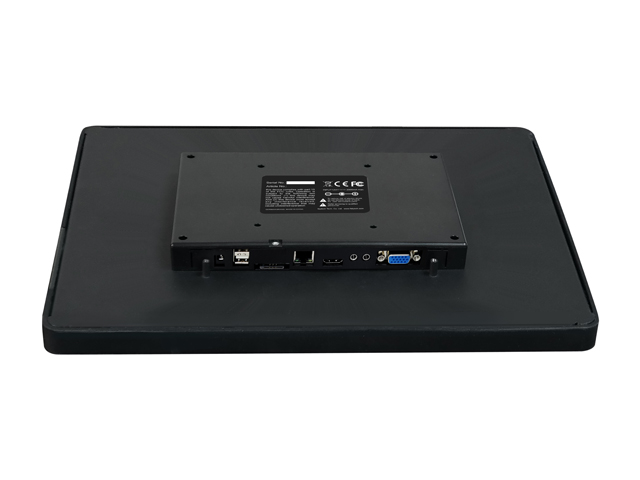

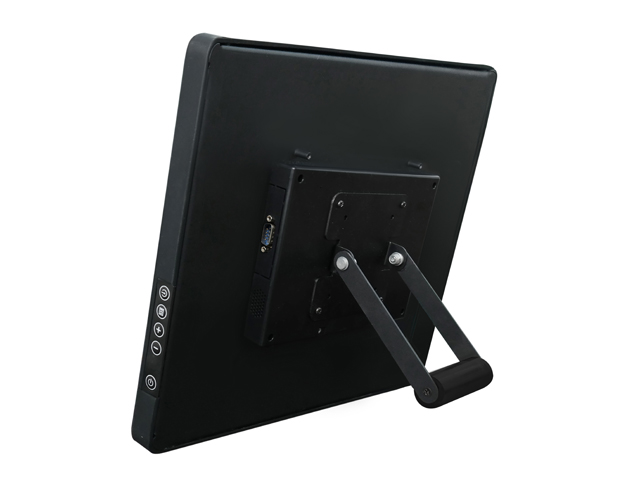

The Touchscreen PC features a sleek modern appearance. Flat edge to edge glass with a patented silicone rubberized seal ensures the front panel is water proof and dust proof meeting the requirements of IP65 standards. The back has a sturdy aluminum case manufactured out of a continuous casting mold with stable VESA-100 fixation bolts offering numerous industrial and consumer connectors like four serial ports, eight GPIOs or USB 3.0.
The heart of the Touchscreen PC is an industrial mainboard with the powerful but fanlessly cooled Intel Celeron J1900 QuadCore processor with up to 2.42GHz Core speed, equipped out of the box with 4 GB of RAM and a 64GB SSD Drive running Linux. The Intel´s HD Graphic chipset, supporting FullHD, DirectX 11.1 and OpenGL 4.0 makes the system ready for eyepopping graphic displays.
The capacitive touch panel is completely inhouse developed by renowned engineers. Anti Glare chemically etched surface treatment, 10-finger multitouch and unlimited touches without failure on the touch panel are class leading features. Behind that touch panel are A+ panels, guaranteeing that there is not even a single sub-pixel defect. As an option, customers can chose optical bonding and high brightness panels to further improve the visual impression of the product.
These industrial touch PCs ensure the performance and stability required for long term operation in today’s demanding
manufacturing, industrial, commercial, and retail environments.

Manuals
Data Sheets

Specifications


Processor
CPU
Intel Celeron J1900 Quad-Core CPU
Clock Speed
2.42 GHz
Memory
RAM
Up to 4GB DDR3 SODIMM
RAM Type
1x DDR3L SODIMM Module
Primary Flash
64GB SSD
Memory Misc.



Memory Upgradeable to 8GB DDR3L

Primary IO
GPIO
8x In/Out GPIO as RJ45
Disk Interface
2x SATA
Audio
Realtek 887 8 -channel high definition audio codec
Video Out
1x Display port; 1x VGA-out
Ethernet
2x 10/100/1000Mbit Realtek PCIe GB LAN 8111G RJ45
USB
1x USB 3.0, 3x USB 2.0 Ports
Serial Ports
4x COM ports
Primary I/O Misc.

4x Serial ports as follows:

    • 2x COM port Full-PIN (RS232/485; 5V/12V)
    • 2x COM port 3-PIN (RX, TX, GND; RS232/485 switchable)
Secondary IO
Display
Display Type
LED backlit 21.5" LCD
Resolution
1920 × 1080 px
LCD Colors
16.7M
Viewing Angle
170/160
Luminance
250
Expansion
Bus Misc.

one Mini-PCIe Slot taken by Wifi Card

Misc
Operating Systems
EMAC OE Linux, WES 7 - Windows Embedded Standard 7, Windows 10 IoT Enterprise LTSC

Mechanical and Environmental


Dimensions
Size
20.79" ×12.76" ×2.28" (528mm × 324mm × 57mm)
Weight
8.56 kg
Power Requirements
Voltage
12 V
Typical Current
2.5 A
Sleep Current
41 mA
Environmental
Low Operating Temperature-10 C (14 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-215T-0 21.5" Intel Celeron J1900 Quad-Core, 4GB RAM, 64GB SATA SSD Flash, 4x COM, 1x USB3, 3x USB2, 2x GbE, WIFI, HDMI, (-10 to 60*C) $1100.00
