SoM-4450


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The CPU is EOL for this product, please see this article for more information.

Features


FEATURES

  •     Compact and powerful
  •     10/100 Mbps Ethernet
  •     18-bit LCD/1 channel LVDS interface
  •     AC' 97 V 2.0 Audio
  •     Less than 8 Watts of power consumption



Overview


The CPU is EOL for this product, please see this article for more information.

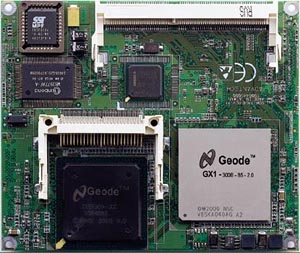

Many gains were made by utilizing the Geode™ GX1 processor. The GX1 processor provides the lowest power consumption/high speed combination of any x86 processor at these performance levels. These processors also support most popular web plug-ins and leverage existing software and hardware investments. The GX1 processor brings 0.18-micron technology to the System on Module line and allows users to enjoy the added speed and efficiency 0.18-micron technology has to offer. Combined with the CS5530A system chipset and RTL 8139 Ethernet chipset, the SOM-4450 is a low power, high performance platform ready to be integrated with application customer solution boards covering multiple applications.

Manuals
Data Sheets

Specifications


Processor
CPU
Geode GX1
Clock Speed
300 MHz
Processor Misc.

System Chipset: NS CX 5530

Memory
Primary Flash
Supports CompactFlash™ card
BIOS/ Bootloader
AWARD 256 KB Flash BIOS
Primary IO
Disk Interface
2 x EIDE (Ultra DMA33), 1 x FDD/LPT
Audio
AC' 97 V 2.0 Audio
Video Out
NS CX5530 CRT/LCD 1- 4 MB shared
Ethernet
10/100 BaseT Ethernet
USB
2 USB ports, USB 1.1 compliant
Serial Ports
2x Serial Ports
Primary I/O Misc.
  • IrDA: 115 Kbps, IrDA 1.0 compliant

VGA/Flat-Panel Interface

  • Chipset: NS CX 5530
  • Memory Size: 1-4 MB UMA share memory
  • Resolution CRT Mode: 1024x768@24 bpp(60Hz)
  • LCD/Simultaneous Mode: 1024x768216 bpp(60Hz)
  • LCD Interface: 18-bit TFT panels up to XGA resolution
  • LVDS: 18 bit ANSI EIA/TIA-644, over 10 meters transmission (SOM-4450FL-G0A1)
  • TV-out: Supports both NTSC/PAL
Secondary IO
LPT Port
Yes
Expansion
Bus Expansion
PCI/ISA
Misc
SOM Type
EOL SOMs

Mechanical and Environmental


Dimensions
Size
3.7" ×4.5" (93mm × 114mm)
Weight
0 g (0 lbs)
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
1.5 A
Max Boot Current
4 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SoM-4450-0 ETX SOM W/ GX1-300 CPU, VGA, LCD, AUDIO, LAN, & TV-OUT (FLASH DISK AND RAM NOT INCLUDED) $234.00
