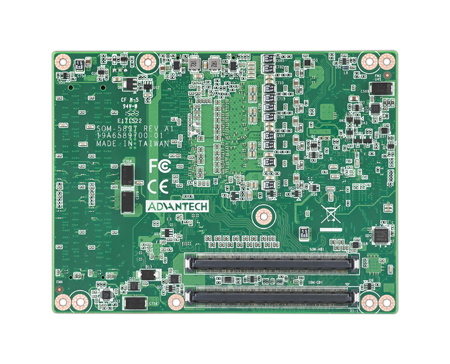

SOM-5897
- 6th Gen Intel Core i7/i5/i3/Celeron + PCH QM170
- Dual DDR4 SODIMM up to 32GB
- Support XDP, TPM2.0
- Flexible I/O support: 8x PCIe x1(Gen3) with LAN, TPM2.0
32Spi91143
32Spi11143 SOM-5897 is equipped with the Intel® 6th Generation Core™/ Celeron/ Xeon product family, which are manufactured on Intel 14nm process technology. SOM-5897 ECC/non-ECC memory supports DDR4 2133MT/s with 1.2V power design, and up to 32GB of dual channel. SOM-5897 not only supports higher memory bandwidth, but also has 33% better battery life than previous generations. SOM-5897 is able to support 8 x PCIex1 as well as x4, x8 configurations if requested. Most important of all, SOM-5897 adopts a 28mm low profile cooler with a TDP of 45watt at 60°C ambient temperature (optional accessory).
Features
- 6th Gen Intel Core i7/i5/i3/Celeron + PCH QM170
- Dual DDR4 2133 SODIMM modules, 1.2V Low Power Memory,
- Up To 32GB of Memory
- Support XDP, TPM2.0
- Flexible I/O support: 8x PCIe x1(Gen3) with LAN, TPM2.0
Overview
SOM-5897 is equipped with the Intel® 6th Generation Core™/ Celeron/ Xeon product family, which are manufactured on Intel 14nm process technology. SOM-5897 ECC/non-ECC memory supports DDR4 2133MT/s with 1.2V power design, and up to 32GB of dual channel. SOM-5897 not only supports higher memory bandwidth, but also has 33% better battery life than previous generations. SOM-5897 is able to support 8 x PCIex1 as well as x4, x8 configurations if requested. Most important of all, SOM-5897 adopts a 28mm low profile cooler with a TDP of 45watt at 60°C ambient temperature (optional accessory). SOM-5897 is suitable for rich I/O applications with high performance requirements, such as ultra sound, military, broadcasting, and industrial automation fields.
Compared with previous generations there is 30% improvement in processor performance and up to 50% better 3D graphics. It supports Qual/ Dual core CPU with GT4e/ GT2, DX12, OpenGL 4.4, and OpenCL 2.0 functions. In addition, multiple displays are supported such as dual or triple displays. HDMI/DisplayPort with 4K2K resolution and dual channel LVDS and 16 simultaneous channels at 1920x1080 full HD resolution are also available.
SOM-5897 is suitable for computing intensive designs, thermally sensitive applications, graphics/media insensitive designs and I/O demanding applications.
| Manuals | |
|---|---|
| SOM-5897 manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| SOM-5897_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | 6th Gen Intel Xeon/Core i7/i5/i3/Celeron |
| Clock Speed | 2.8 GHz |
| Processor Misc. | i7-6820EQ 4/8x 2.8-3.5GHz 45w |
| Memory | |
|---|---|
| RAM | Up to 32GB DDR4 SODIMM |
| BIOS/ Bootloader | AMI UEFI 128Mbit |
| Primary IO | |
|---|---|
| GPIO | 8x |
| Disk Interface | 4x SATAIII 6.0Gb/s |
| Audio | Intel HD Audio Interface |
| Video Out | VGA, LVDS, 2x HDMI1.4/DVI/Displayport1.2 |
| Ethernet | 1x GbE Intel i219 |
| USB | 4x USB 3.0 & 8x USB 2.0 |
| Serial Ports | 2x 2-Wire |
| Secondary IO | |
|---|---|
| SPI | yes |
| I2C | yes |
| Expansion | |
|---|---|
| Bus Expansion | COM Express Type 6 |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE ) |
| SOM Type | COM Express Modules |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 4.92" ×3.74" (124mm × 94mm) |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SOM-5897C3-S9 | COMe Basic, i3-6102E 2x1.9GHz, 2x DDR4 SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI | $737.00 |
| SOM-5897C3-U7 | COMe Basic, i3-6100E 2x2.7GHz, 2x DDR4 SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI | $737.00 |
| SOM-5897C5-S9 | COMe Basic, i5-6442EQ 4x1.9GHz, 2x DDR4 SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI | $850.00 |
| SOM-5897C5-U7 | COMe Basic, i5-6440EQ 4x2.6GHz, 2x DDR4 SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI | $850.00 |
| SOM-5897C7-U0 | COMe Basic, i7-6822EQ 4x2.0GHz, 2x DDR4 SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI | $1020.00 |
| SOM-5897C7-U8 | COMe Basic, i7-6820EQ 4x2.7GHz, 2x DDR4 SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI | $1020.00 |
| SOM-5897C7X-U8 | COMe Basic, i7-6820EQ 4x2.7GHz, 2x DDR4 SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI -40~85C | $1288.00 |
| SOM-5897C7Z2-U0 | COMe Basic, i7-6822EQ 4x2.0GHz, 2x DDR4 SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI -40~85C | $1288.00 |
| SOM-5897E4C-U0 | COMe Basic, E3-1505LV5 4x2.0GHz, 2x DDR4 ECC SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI | $1118.00 |
| SOM-5897E4C-U7 | COMe Basic, E3-1505MV5 4x2.8GHz, 2x DDR4 ECC SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI | $1118.00 |
| SOM-5897E4C-U8 | COMe Basic, E3-1515MV5 4x2.8GHz, 2x DDR4 ECC SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI | $1231.00 |
| SOM-5897E4X-U0 | COMe Basic, E3-1505LV5 4x2.0GHz, 2x DDR4 ECC SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI -40~85C | $1396.00 |
| SOM-5897E4X-U7 | COMe Basic, E3-1505MV5 4x2.8GHz, 2x DDR4 ECC SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI -40~85C | $1396.00 |
| SOM-5897E4X-U8 | COMe Basic, E3-1515MV5 4x2.8GHz, 2x DDR4 ECC SODIMM, 4xSATA, 2xCOM, 4xUSB3, 8xUSB2, GbE LAN, VGA, 2xDDI -40~85C | $1520.00 |
