SBC-657

This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

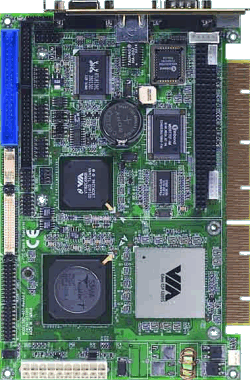

The SBC-657 is an all-in-one VIA Eden processor based single board computer (SBC) with a AGP CRT/LCD controller, a PCI 100Base-T Ethernet interface.The SBC-657 achieves outstanding performance that surpasses any other SBC in its class. In addition, the onboard SSD interface supports type II Compact Flash, with memory capacity above 1 GB.

Features

  • Embedded low power VIA Eden 667 MHz
  • Fanless, 0 ~ 60�C (32 ~ 140�F) operation
  • Realtek RTL 8139C 10/100Base-T Fast Ethernet
  • Supports Compact Flash (SSD) over 1 GB
  • PISA bus interface
  • PC/104 expansion connector

Overview

The SBC-657 is an all-in-one VIA Eden processor based single board computer (SBC) with a AGP CRT/LCD controller, a PCI 100Base-T Ethernet interface.The SBC-657 achieves outstanding performance that surpasses any other SBC in its class. In addition, the onboard SSD interface supports type II Compact Flash, with memory capacity above 1 GB.

Onboard features include four serial ports (three RS-232, one RS-232/ 422/485), one multi-mode parallel (ECP/EPP/SPP) port, Pin header for four USB (Universal Serial Bus) ports, a floppy drive controller, and a keyboard-PS/2 mouse interface. The built-in high speed PCI IDE controller supports Ultra DMA/100 mode. Up to two IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives, etc.

The SBC-657 also features power management to minimize power consumption. It complies with the ACPI standard and supports three types of power saving features: doze, standby, and suspend mode. In addition, the board's watchdog timer can automatically reset the system or generate an interrupt in case the system stops due to a program bug or EMI.

The SBC-657 is a highly integrated SBC that combines, video, and network functions on a single computer board. It provides up to 1280 x 1024 resolution @ 24 bit color utilizing shared display memory up to 32 Meg. Major onboard devices adopt PCI technology to achieve outstanding computing performance making the SBC-657 one of the world's best and most powerful all-in-one Single Board Computer.

Manuals
Data Sheets

Specifications

Processor
CPU
Embedded low power VIA Eden
Clock Speed
667 MHz
Processor Misc.

Chipset: VIA VT8806/VT82C686B
Memory
RAM
1x 144-pin SODIMM up to 512MB
Primary Flash
1x CompactFlash™ card Type I/II
Primary IO
Disk Interface
2x FDD, 2x EIDE (Ultra DMA100)
Ethernet
IEEE 802.3u 10/100BASE-T Fast Ethernet compatible with on-board RJ-45 connectors Realtek RTL 8139C
USB
2x USB
Serial Ports
1x Parallel SPP/EPP/ECP, 3x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • I/O Chipset: VT82C686B
  • IR interface: Supports one IrDA Tx/Rx header
  • DMA: 7 DMA channels (8237 equivalent)
  • Interrupt: 15 interrupt levels (8259 equivalent)

Flat panel/CRT interface

  • Chipset: VIA Twister™ chip with integrated Savage4™ 2D/3D/Video Accelerator
  • Frame buffer: Supports 8/16/32MB frame buffer with system memory
  • Interface: 4X AGP VGA/LCD interface, Support for 9, 12, 15, 18, 24, 36 bit TFT and optional 16- or 24-bit DSTN panel
Secondary IO
PS/2
Yes
Display
CRT-VGA Interface
1280 x 1024@16bpp (60Hz
LVDS Interface
Supports 2 Channel (2 x 18bit) LVDS interface
Expansion
Bus Expansion
1x PC/104, 1x ISA bus, 1x PCI

Mechanical and Environmental

Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
0.3 kg
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
3.3 A
Power Misc.
  • Battery: Lithium battery for data retention
  • Power management: I/O peripheral devices support power saving and doze/ standby/ suspend modes. APM 1.2 compliant
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SBC-657-0 Half-Size VIA EDEN PISA Slot Card W/ ATX Call
SBC-657-01 Half-Size VIA EDEN PISA Slot Card W/ ATX Call

Additional Options
