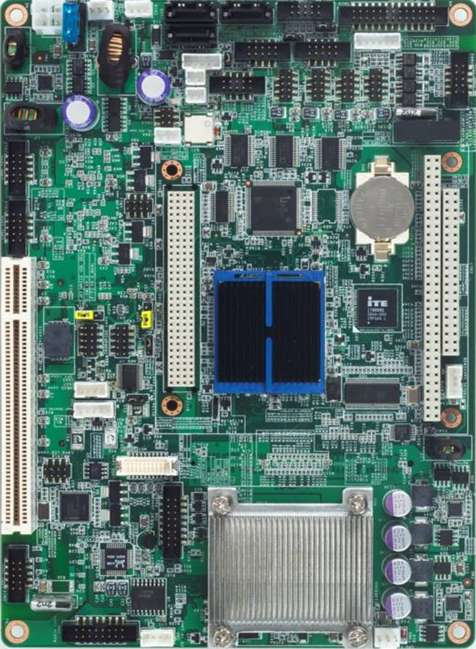

PCM-9562


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The PCM-9562 is centered on the low power Intel® Atom Single Core N450 or Dual Core D510 processor which supports enhanced Intel “SpeedStep” technology and uses Intel’s N450/D510 chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption. **Flash Disk and Memory not included.**

Features


  • Embedded Intel® Atom Fanless N450 or D510 (Dual Core) Processor
  • Supports DDR2 memory
  • Supports Dual Independet Display
  • Supports Up to 3 Gig Ethernets
  • Supports Up to 6 Serial ports
  • Supports 8 USB 2.0 ports
  • Supports 3 SATA drives
  • Supports PC/104+, PCI & Mini PCI Express Expansion
  • Supports +5 V and +12 V power; or single +5 V power
  • Wide Temperature Version Available

Overview


The PCM-9562 is centered on the low power Intel® Atom Single Core N450 or Dual Core D510 processor which supports enhanced Intel “SpeedStep” technology and uses Intel’s N450/D510 chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCM-9562's design is based on the EBX form factor and provides expansion support via PC/104+, a PCI slot and a Mini PCI Express slot. The EBX form factor also provides convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 8" x 5.75") offers all the functions of a rack type industrial computer, but still fits in the space of a CD-ROM drive.

On-board features include: six serial ports, eight USB (Universal Serial Bus) 1.1/2.0 ports, three Gig Ethernet ports, an Audio port and a PS/2 keyboard/mouse interface. The built-in high-speed SATA Hard Driver controller supports a maximum transfer rate of 300MB per second. Up to three drives can be connected, including large hard disks, CD-ROM drives, and tape backup drives.



**Flash Disk and Memory not included.**

Manuals
PCM-9562.pdf
Data Sheets
PCM-9562_DS.pdf

Specifications


Processor
CPU
Embedded Intel Atom N450/D510 (Dual Core)
Clock Speed
1.66 GHz
Processor Misc.
  • Chipset: N450/D510
  • L2 Cache: 512 KB/1 MB
Memory
RAM
1x SODIMM up to 2GB DDR2 667/800MHz
Primary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
AMI 16 Mbit
Primary IO
Audio
Realtek ALC888 HD codec with AC97 Line-in/Line-out/Mic-in
Video Out
Intel Dual Display CRT/LCD up to 224 MB shared
Ethernet
IEEE 802.3u 10/100/1000 Base-T with 1x RJ45 connector
USB
8x USB 2.0
Serial Ports
3x RS-232, 2x RS-232/422/485, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.
  • SATA Interface: Three SATA Channels supporting 3 drives
  • Optional Serial Port: 1x RS232 port
  • Ethernet Chipset:
    • LAN1 - Intel 82567
    • LAN2 - Intel 82583V
    • LAN3 - Intel 82583V (Optional - Contact Sales - Minimum Order Quantity is required.)



Secondary IO
PS/2
Yes
Display
Display Type
Flat Panel and CRT displays
Chipset
Intel N450/D510
Resolution
Up to 1400 x 1050/2048 x 1536 @ 60 Hz
LVDS Interface
Supports 1 channel (18-bit) 1366 x 768 LVDS LCD Panel
Multi-Display
Dual Independent Display CRT + LVDS
Expansion
Bus Expansion
1x PC/104+, 1x PCI Bus, 1x Mini PCI Express
Misc
Operating Systems
EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22

Mechanical and Environmental


Dimensions
Size
8" ×5.75" (203mm × 146mm)
Weight
850 g (1 lbs)
Power Requirements
Power Misc.
  • Power Management APM 1.2, ACPI 3.0 supported
  • Power Requirements: AT / ATX (Both AT/ATX can support ACPI)
    • AT: 12V ±10% only
    • ATX: 12V ±10%, 5VSB ±5% (5V stand-by is for auto power off function)
    • Maximum:
      • PCM-9562N: 13.9W (1159 mA @ 12V, 6 mA @ 5 VSB)
      • PCM-9562D: 16.9W (1404 mA @ 12V, 8 mA @ 5 VSB)
      Typical:
      • PCM-9562N: 10.8W (893 mA @ 12V, 8 mA @ 5 VSB)
      • PCM-9562D: 13.6W (1130 mA @ 12V, 10 mA @ 5 VS)
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Environmental Misc.

Temperature PCM-9562NZ: - 20 to + 80°C

Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9562D ATOM 1.6GHZ D510 DUAL CORE SBC W/Video, DUAL GIG LAN Call
PCM-9562N ATom 1.6GHz N450 Fanless SBC w/video, Dual GIG LAN (one remaining in stock) $324.00
PCM-9562NZ ATOM 1.6GHZ N450 Wide temp SBC W/Video, DUAL GIG LAN, 1 GB RAM Call

Peripheral Options


Product # Description Price
Wiring Kits
PCM-10586-9562E Wiring Kit for the PCM-9562 $55.00
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SL013-AMN-00060 Xenomai Real-Time Extensions (one-time charge) Call
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
