PCM-9388

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

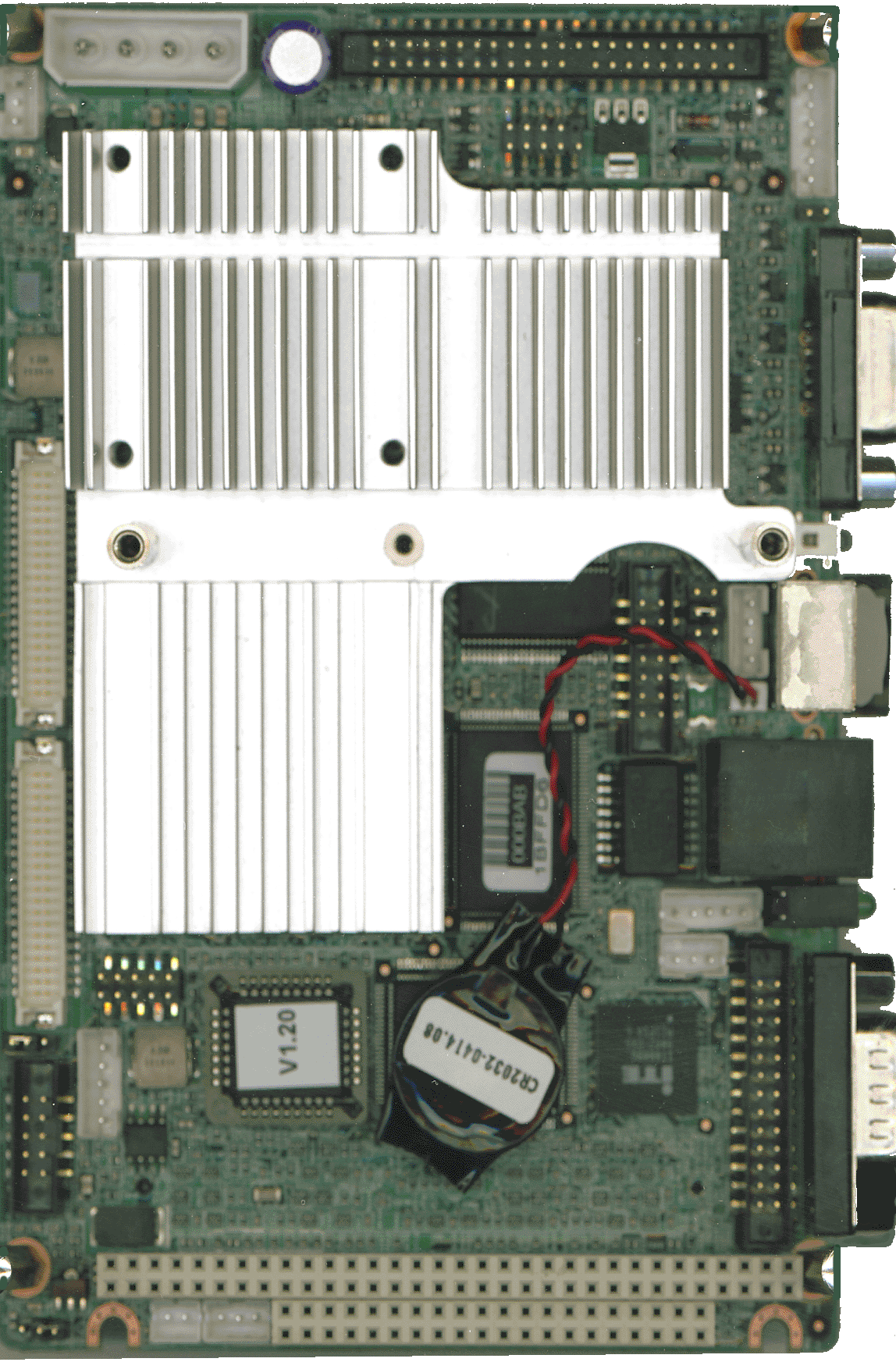

The PCM-9388 is centered on a powerful Intel® Celeron® M processor that supports an onboard 600MHz to 1GHz processor. The Intel® 852GM chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. **Flash Disk and Memory not included.**

Features

  • Embedded Onboard Intel® Fanless Celeron® M Processor
  • Supports DDR memory
  • Supports 10/100 BASE-T Ethernet
  • Supports Dual Video, CRT and LVDS LCD or TTL LCD
  • Supports 2 x USB 2.0 ports
  • Supports PC/104 Expansion
  • Supports AT & ATX power

Overview

The PCM-9388 is centered on a powerful Intel® Celeron® M processor that supports an onboard 600MHz to 1GHz processor. The Intel® 852GM chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution.

The PCM-9388's design is based on the small Half-EBX form factor and provides support for PC/104 module expansion. The Half-EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 5.7" x 4 ") offers all the functions of a single board industrial computer, but still fits in the space of a 3.5" Hard drive.

On-board features include: two serial ports, Dual Video, one multi-mode parallel (ECP/EPP/SPP) port, two USB (Universal Serial Bus) 2.0 ports, an Ethernet port, PS/2 keyboard/mouse interface, Audio and a EIDE (UDMA 33) which supports up to two IDE devices, including large hard disks and CD-ROM drives.



**Flash Disk and Memory not included.**



Specifications

Processor
CPU
Embedded Intel® ULV Celeron® M
Clock Speed
600 MHz
Processor Misc.
  • Clock Speed: 600 GHz / 1.0GHz
  • Chipset: Intel 852GM GMCH + ICH4
Memory
RAM
1x 200-pin SODIMM socket up to 1GB DDR
Primary Flash
1x CompactFlash™ card Type I
BIOS/ Bootloader
AWARD® 4 Mbit
Primary IO
GPIO
1x 8-bit GPIO
Disk Interface
1x EIDE (UDMA 33)
Audio
AC97 2.0 with mic-In/line-in/line-out support
Video Out
Intel 852G Dual Display CRT/LCD up to 64 MB shared
Ethernet
10/100 Base T with 2x RJ-45 connectors wih Realtek RTL 8100CL
USB
2x USB 2.0
Serial Ports
1x RS-232, 1x RS-232/422/485, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.

Display

  • Chipset: Intel 852GM
  • Video Memory: Supports up to 64 MB (shared) memory
  • Display Type: Flat Panel and CRT displays
  • Resolution: Up to 1600 x 1200 @ 85 Hz
  • TTL Interface: Supports 18-bit TTL
  • LVDS Interface: Supports 36-bit LVDS LCD Panel
  • Dual Display: Dual Independent Display: CRT + LVDS, CRT + TTL
Secondary IO
Display
Display Type
Flat Panel and CRT displays
Chipset
Intel 852GM
Resolution
UP TO 1600 x 1200 @85 Hz
TTL Interface
Supports 18-bit TTL
LVDS Interface
Supports 36-bit LVDS LCD Panel
Multi-Display
Dual Independent Display: CRT + LVDS/CRT + TTL
Expansion
Bus Expansion
1x PC/104
Misc
Operating Systems
EMAC OE Linux
Operating Systems Compatibility
  • RTAI Real-Time Linux
  • Microsoft Windows XP / XPE
  • Microsoft Windows CE.net
  • Microsoft MS-DOS 6.22 & RomDos 6.22

Mechanical and Environmental

Dimensions
Size
5.7" ×4" (144mm × 101mm)
Weight
850 g (1 lbs)
Power Requirements
Power Misc.
  • Maximum: +5 V @ 2.75 A, +12 V @ 0.17A
  • Typical: +5 V @ 1.78 A, +12 V @ 0.16A
  • Power Management APM, ACPI S1, S5 supported
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products
PCM-9376, PCM-9365, VDX-6328

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9388F Celeron® M 600 SBC, VGA, LCD, Audio, Ethernet $307.00
PCM-9388F-S0 Celeron® M 1G SBC, VGA, LCD, Audio, Ethernet $323.00

Additional Options
