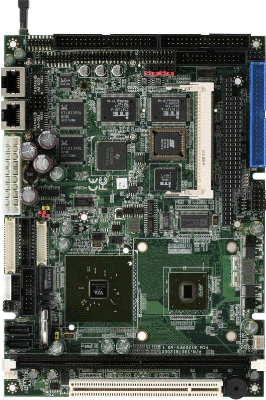

PCM-8120


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.
The PCM-8120 adopts a VIA C7 processor which features low power consumption and transcendent performance. In addition to the VIA C7 processor from 1GHz to 2GHz, this model can be equipped with an Eden V4 Bus (400MHz to 1.5GHz) processor. Moreover, 240-pin DDRII DIMM system memory is up to 1GB. For network connection, the PCM-8120 deploys Realtek RTL 8139DL 10/100Base-TX chip and features two RJ-45 ports onboard. **Flash Disk and Memory not included.**

Features


  • Embedded VIA C7/ Eden (V4 Bus) series processors up to 2GHz
  • DIMM DDR II 400/533 up to 1GB
  • PC/104, PCI, Type III Mini PCI & Type II PCMCIA
  • Dual 10/100Base-Tx Ethernet
  • Supports IDE, SATA II x 2, Compact Flash & FDD
  • 4 COM Ports, 6 USB 2.0 Ports, Parallel Port & PS/2
  • Dual-channel LVDS, DVI and TV-out
  • High Definition Audio 7.1 CH
  • MPEG-4 accelerator

Overview


The PCM-8120 adopts a VIA C7 processor which features low power consumption and transcendent performance. In addition to the VIA C7 processor from 1GHz to 2GHz, this model can be equipped with an Eden V4 Bus (400MHz to 1.5GHz) processor. Moreover, 240-pin DDRII DIMM system memory is up to 1GB. For network connection, the PCM-8120 deploys Realtek RTL 8139DL 10/100Base-TX chip and features two RJ-45 ports onboard.

This new Compact Board configures a VIA CX700M integrated display chipset to support CRT/LVDS, LVDS/TV or CRT/TTL, CRT/DVI, TV/TTL, TV/DVI simultaneous/dual view display. In addition, it supports MPEG-4 accelerator to enhance the performance of multimedia applications.



**Flash Disk and Memory not included.**

Manuals
Data Sheets

Specifications


Processor
CPU
VIA C7/Eden Fanless
Clock Speed
2 GHz
Processor Misc.
  • Chipset: CX700M
Memory
RAM
240-pin DDR II DIMM max. 1GB (DDR-400/533)
Primary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
AWARD Plug & Play ISA BIOS 512KB
Primary IO
GPIO
16x programmable
Disk Interface
1x EIDE (Ultra DMA 100)
Audio
On Board VIA VT1708 HD Audio CODEC (Mic-in and line-out 1/8
Video Out
VIA CX700M Dual Display CRT/LVDS up to 128 MB Shared
Ethernet
10/100 Base-T Intel® 82551ER
USB
6x USB 2.0
Serial Ports
3x RS-232, 1x RS-232/422/485, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.
  • I/O Chipset: ITE IT8712 + IT8888G
  • Serial ATA: 2 Channels of SATAII with RAID 0 & 1
  • Floppy Disk Drive Interface: 1x Floppy channel
  • IrDA: 1x IrDA Tx/Rx header
  • Etherent Interface: Dual IEEE 802.3u 100 BASE-T Fast Ethernet compatible



Secondary IO
PS/2
Yes
Display
Chipset
VIA CX700M integrated
Resolution
Up to 1600x1200@32bpp
LVDS Interface
Up to 48-bit dual channel LVDS TFT LCD
Multi-Display
CRT+LVDS
Expansion
Bus Expansion
1x PC/104, 1x PCMCIA, 1x Mini PCI
Misc
Operating Systems
EMAC OE Linux, MicroPython

Mechanical and Environmental


Dimensions
Size
5.75" ×8" (146mm × 203mm)
Weight
850 g (1 lbs)
Power Requirements
Voltage
5 V
Power Misc.
  • Hardware Status Monitoring: Supports Power Supply Voltages, Fan Speed &Temperature Monitoring
  • Power Requirements (Celeron M 600, 256 M DDR266)
    • Maximum: +5 V @ 2.63 A, +12 V @ 0.03 A
    • Typical: +5 V @ 2.0 A, +12 V @0.03 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-8120-05 EDEN 1 GHZ SBC W/Audio,TTL,LVDS,DVI,TV,DUAL LAN Call
PCM-8120-06 C7 2 GHZ SBC W/Audio,TTL,LVDS,DVI,TV,DUAL LAN Call

Peripheral Options


Product # Description Price
Cables & Adapters
PCM-8120 Cable Kit Cable Kit Call
PCM-8120 DVI Cable DVI Cable Call
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
