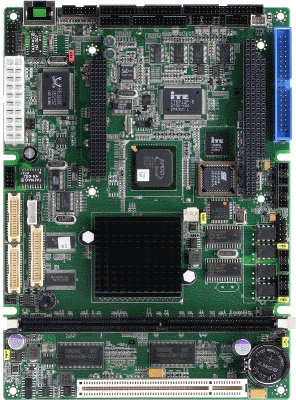

PCM-5895
15ppi711PP24 The CPU is EOL for this product, please see this article for more information
The PCM-5895 is an all-in-one multimedia AMD Geode™ LX processor based single board computer (SBC) with an integrated audio controller, a LCD/CRT Video controller, dual 100Base-Tx Ethernet ports, and one PCI expansion slot. This compact (only 5.75"“ x 8") unit offers all the functions of a rack mount industrial computer, but still fits in the space of a CD-ROM drive. **RAM and Flash Disk not included.**
Features
- Onboard AMD Fanless Geode LX800/900, 500/600 MHz Processor
- 24-bit LVDS TFT LCD
- Supports Type II CompactFlash
- Provides PC/104+ and PCI expansion
- 4 COM, 4 USB 2.0, & Digital I/O
- Dual 10/100 BaseT Ethernet
- Supports DDR Memory
- Dual CAN Bus (PCM-5895B)
- 8 GPIO Lines
**RAM and Flash Disk not included.**
Overview
The PCM-5895 is an all-in-one multimedia AMD Geode™ LX processor based single board computer (SBC) with an integrated audio controller, a LCD/CRT Video controller, dual 100Base-Tx Ethernet ports, and one PCI expansion slot. This compact (only 5.75"“ x 8") unit offers all the functions of a rack mount industrial computer, but still fits in the space of a CD-ROM drive.
On-board features include four serial ports (three RS-232, one RS-232/ 422/485), one multi-mode parallel (ECP/EPP/SPP) port, four USB 2.0 ports, a floppy drive controller, and a keyboard/PS/2 mouse interface. The built-in high speed PCI IDE controller supports Ultra DMA/100 mode. Up to two IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives, etc.
| Manuals | |
|---|---|
| pcm-5895b.pdf | Download (PDF) |
| pcm-5895a.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| PCM-5895 Rev.B.pdf | Download (PDF) |
| PCM-5895 Rev.A.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | AMD Geode LX800 Fanless |
| Clock Speed | 500 MHz |
| Processor Misc. | Chipset: AMD Geode LX + CS5536 |
| Memory | |
|---|---|
| RAM | 184-pin DDR DIMM Max. 1GB (DDR 333/400) with optional onboard memory 256MB |
| Primary Flash | 1x CompactFlash™ card Type II |
| BIOS/ Bootloader | AWARD 1MB flash ROM |
| Memory Misc. |
|
| Primary IO | |
|---|---|
| Disk Interface | 1x EIDE (UDMA 100) supporting 2 IDE devices |
| Audio | Line-In |
| Video Out | CX5536 CRT/LCD 1 - 16 MB Shared |
| Ethernet | 2x 10/100 Base-TX RJ-45 Realtek RTL8139DL |
| USB | 4x USB 2.0 |
| Serial Ports | 3x RS-232, 1x RS-232/422/485 |
| Primary I/O Misc. |
|
| Secondary IO | |
|---|---|
| CAN | 2x CAN Bus |
| Expansion | |
|---|---|
| Bus Expansion | 1x PCI, (OPTIONAL) 1x PC/104+ |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, FreeRTOS |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 8" ×5.75" (203mm × 146mm) |
| Weight | 544 g (1 lbs) |
| Power Requirements | |
|---|---|
| Typical Voltage | 5 V |
| Typical Current | 2.2 A |
| Power Misc. | Power Type: AT/ATX |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PCM-5895-A10-01 | PCM-5895-A10-01, Geode LX800 500MHz, SODIMM RAM, CF, IDE, Floppy, 4x COM, 4x USB2, 2x LAN, VGA, TTL, LVDS | Call |
| PCM-5895B-10 | PCM-5895-B10, Geode LX800 500MHz, SODIMM RAM, CF, IDE, 4x COM, 4x USB2, 2x LAN, VGA, LVDS, TTL | Call |
| Build to Order | ||
| PCM-5895-B10-03 | PCM-5895-B10-03, Geode LX800 500MHz, 256MB RAM, CF, IDE, 4x COM, 2x CAN, 4x USB2, 2x LAN, PC/104+, VGA, LVDS, TTL | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Wiring Kits | ||
| PCM-A030 | Wiring Kit for PCM-5895A | $37.00 |
| PCM-K004 | Wiring Kit for PCM-5895B | $54.00 |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SL013-AMN-00060 | Xenomai Real-Time Extensions (one-time charge) | Call |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| SD622-000-0010 | MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS 6.22 LICENSES are EOL and no longer SOLD, see ROM-DOS 6.22 Part number: SD622-000-0005 as alternate. | Call |
| SD622-000-0005 | ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA | $35.00 |
| SC600-000-0010D | Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $25.00 |
