PCM-1812

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

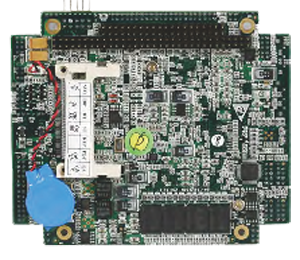

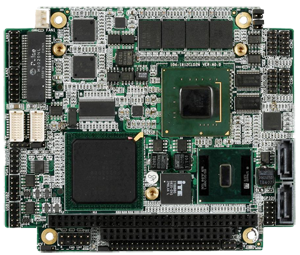

The PCM-1812 is an industrial embedded PC104 motherboard that offers high performance and low power consumption. It adopts the Intel Atom N270 processor and Mobile Intel 945GSE + ICH7M chipset; it is a fanless stable solution for pc104 projects. This product can be used in the fields of medical treatment, numerical controlling, traffic, data acquisition and industrial automation where low power in a limited space is required. **CompactFlash card not included.**

Features

  • Atom N270 1.6G/533MHz CPU
  • Onboard 1GB DDR2 Memory & Compact Flash Socket
  • Supports VGA/LVDS
  • Supports 2 x10/100/1000 Mbps Ethernet interface
  • Supports 4 x USB 2.0 & 4 x COM
  • Wide Temp -40 to 80C

Overview

The PCM-1812 is an industrial embedded PC104 motherboard that offers high performance and low power consumption. It adopts the Intel Atom N270 processor and Mobile Intel 945GSE + ICH7M chipset; it is a fanless stable solution for pc104 projects. This product can be used in the fields of medical treatment, numerical controlling, traffic, data acquisition and industrial automation where low power in a limited space is required.



**CompactFlash card not included.**

Manuals
104-1812CLD2N-manual.pdf
Download (PDF)
Data Sheets

Specifications

Processor
CPU
Intel Atom N270 1.6G/512k/FCBGA8-437 CPU.
Clock Speed
533 MHz
Processor Misc.

Chipset: Intel QG82945GSE+ NH82801GBM (ICH7M).
Memory
RAM
1GB DDR On-board
Primary Flash
1x CompactFlash™ card Type I
BIOS/ Bootloader
AMI BIOS
Primary IO
GPIO
1x 8-bit digital I/O connector
Video Out
Intel 945GSE VGA Dual Channel LVDS
Ethernet
RTL8111 10/100/1000Mbit with 2x RJ45 Ports
USB
4x USB 2.0
Serial Ports
2x RS-232, 2x RS-422/485
Primary I/O Misc.
  • SATA Interface:  2 x SATA interface

LVDS supports 18-bit
Secondary IO
Expansion
Bus Expansion
1x PC/104
Misc
Operating Systems
EMAC OE Linux, MicroPython

Mechanical and Environmental

Dimensions
Size
4.56" ×3.78" (115mm × 96mm)
Power Requirements
Power Misc.
  • Power Supply: AT
  • Power Consumption:  11W
Environmental
Low Operating Temperature-40 C (-40 F)
High Operating Temperature80 C (176 F)
Related Products
PCM-3362

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-1812N-Z2 PC/104 SBC ATOM N270 Industrial temp .-40 TO 80C $495.00

Peripheral Options

Product # Description Price
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00

Additional Options
