MIO-2261 P-ITX
22Mpi711 55
22Mpi611 55

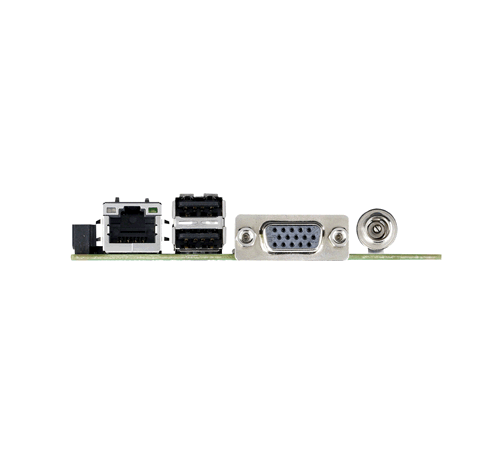

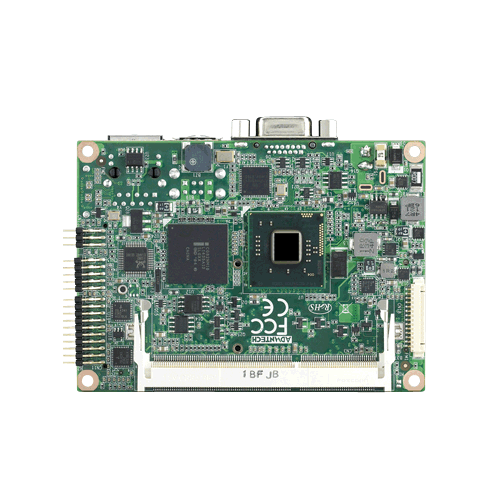

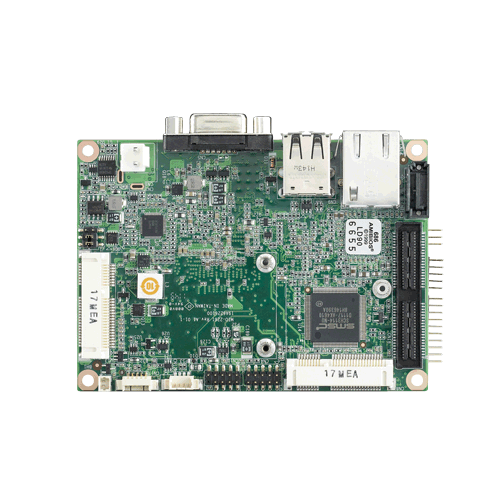

22Mpi111 54 MIO-2261 is a MI/O-Ultra SBC (Single Board Computer) with Embedded Intel® Atom™ N2600 1.6 GHz and N2800 1.86 GHz Processor. The MIO-2261 can support DDR3 memory up to 4 GB, has four USB 2.0 compatible ports, one GbE (up to 1000 Mbps) interface, LVDS and VGA support, HD (High Definition) audio, and one half size mini-PCIe and MIOe expansion slot. In addition, MIO-2261 also supports one SATA drive, two COM ports, one SMBus, one GPIO and one mSATA slot. The innovative MI/O (multiple I/O) Extension SBC is equipped with flexible multiple I/O to assist integrators in developing optimized solutions.
Features
- Embedded Intel® Atom™ Dual-Core N2600/N2800 + Intel NM10
- Up to 4 GB DDR3 800 MHz (N2600) DDR3 1066 MHz (N2800)
- 2x RS-232(ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)
- 1x SATA II, Full-size mSATA
- Dual Independent display: 18/24-bit LVDS + VGA
- 1x 10/100/1000Mbps Ethernet
- Mini PCI Express & MIOe
- 4 USB 2.0 Ports
- Rich I/O interface with 2 COM, 1 SATA, 4 USB 2.0, GPIO, SMBus, mSATA, and MIOe expansion interface
- Supports SUSIAccess and Embedded Software APIs
- Audio: Realtek ALC892, High Definition Audio (HD), Line-in, Line out
- Watchdog
- Power Type Single 12V DC power input (Supports DC power hot plug)
- Power Consumption (Typical) N2600: 0.35 A @ 12 V (4.2 W) N2800: 0.46 A@ 12 V (5.52 W)
- Power Consumption (Max, test in HCT) N2600: 0.76 A @ 12 V (9.12 W) N2800: 0.80 A @ 12 V (9.6 W)
- Operating Temperature: 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
- Non-Operating Temperature: -40° C ~ 85° C and 60° C @ 95% RH non-condensing
- Dimensions (L x W): 100 x 72 mm (3.9" x 2.8")
- Weight 0.48 kg (1.06 lb), weight of total package
- Total Height Top Side: 15.65 mm (including heatsink); Bottom Side: 16.4 mm; PCB: 1.6 mm
Overview
MIO-2261 is a MI/O-Ultra SBC (Single Board Computer) with Embedded Intel® Atom™ N2600 1.6 GHz and N2800 1.86 GHz Processor. The MIO-2261 can support DDR3 memory up to 4 GB, has four USB 2.0 compatible ports, one GbE (up to 1000 Mbps) interface, LVDS and VGA support, HD (High Definition) audio, and one half size mini-PCIe and MIOe expansion slot. In addition, MIO-2261 also supports one SATA drive, two COM ports, one SMBus, one GPIO and one mSATA slot. The innovative MI/O (multiple I/O) Extension SBC is equipped with flexible multiple I/O to assist integrators in developing optimized solutions.
| Manuals | |
|---|---|
| MIO-2261_User_Manual.pdf | Download (PDF) |
| MIO-2261_Startup_Manual.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| MIO-2261_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Embedded Intel® Atom™ Dual-Core N2600/N2800 + Intel NM10 |
| Clock Speed | 1.86 GHz |
| Memory | |
|---|---|
| RAM | Up to 4 GB DDR3 800 MHz (N2600) DDR3 1066 MHz (N2800) |
| BIOS/ Bootloader | AMI EFI 16 Mbit BIOS |
| Primary IO | |
|---|---|
| GPIO | 8-bit GPIO |
| Disk Interface | 1 x SATA II, Full-size mSATA |
| Audio | Realtek ALC892 High Definition Audio (HD) Line-in / Line out |
| Video Out | DirectX 9, Dual Independent display: 18/24-bit LVDS + VGA |
| Ethernet | 1x 10/100/1000Mbps |
| USB | 4x USB 2.0 Ports |
| Serial Ports | 1x RS-232 with 5v/12v or 1x RS-422/485 by BOM Option |
| Secondary IO | |
|---|---|
| Keypad | Yes
|
| PS/2 | Yes
|
| Display | |
|---|---|
| Chipset | Intel Atom N2600/ N2800 + Intel NM10 |
| LVDS Interface | 18/24-bit LVDS1: up to 1366 x 768 |
| Multi-Display | Dual Independent display: 18/24-bit LVDS + VGA |
| Expansion | |
|---|---|
| Bus Expansion | Mini PCI Express & MIOe |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 3.9" ×2.8" (99mm × 71mm) |
| Weight | 1.06 lb |
| Dimensions Misc. | 100 x 72 mm (3.9" x 2.8") |
| Power Requirements | |
|---|---|
| Voltage | 12 V |
| Typical Current | 3 A |
| Environmental | |
|---|---|
| Low Operating Temperature | 0 C (32 F) |
| High Operating Temperature | 60 C (140 F) |
| Upper Operating Humidity | 95% |
| Related Products | |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| MIO-2261N-S6A1E | Pico-ITX, MIO-2261N, N2600, 2xCOM, 2xCOM, 4xUSB2, 1xGbE, VGA | Call |
| MIO-2261N-S8A1E | Pico-ITX, MIO-2261N, N2800, 2xCOM, 4xUSB2, 1xGbE, VGA | Call |
| MIO-2261Z-2GS6A1E | Pico-ITX, MIO-2261Z-WT, N2600, 2GB RAM, 2xCOM, 4xUSB2, 1xGbE, VGA (-20-80C) | Call |
| MIO-2261Z2-2GS6A1E | Pico-ITX, MIO-2261Z-IT, N2600, 2GB RAM, 2xCOM, 4xUSB2, 1xGbE, VGA (-40-85C) | Call |
| MIO-2261Z2-2GS8A1E | Pico-ITX, MIO-2261Z-IT, N2800, 2GB RAM, 2xCOM, 4xUSB2, 1xGbE, VGA (-40-85C) | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
