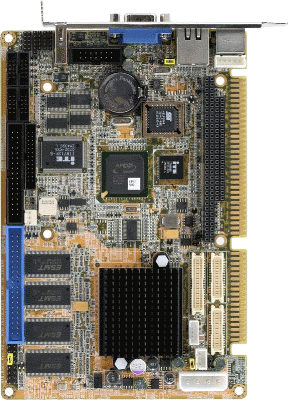

HSB-813S


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

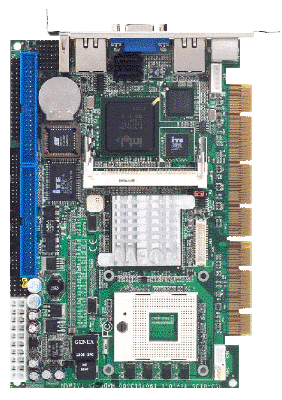

The HSB-813S is an economic half-size PISA Single Board Computer (SBC) based on the Intel Pentium M 479 Socket with a LVDS VGA controller. The HSB-813S achieves outstanding performance and low power consumption.

Onboard features include two serial ports (one RS-232, & one RS-232/422/485), one multi-mode parallel (ECP/EPP/SPP) port, five USB 2.0 ports, a floppy drive controller, and a PS/2 keyboard/ mouse interface.

Features


  • Onboard Intel Pentium M Socket 479
  • Integrated 2D/3D Graphic Accelerator
  • 5 USB 2.0 Ports
  • On board 10/100 Mbps Ethernet with optional 2nd 10/100/1000 BaseT Port
  • Supports Compact Flash (SSD)
  • 2 Serial Ports
  • AC97 Audio
  • General Purpose Digital I/O
  • PISA Card with ISA, PCI, and Mini PCI Expansion Connectors

Overview


The HSB-813S is an economic half-size PISA Single Board Computer (SBC) based on the Intel Pentium M 479 Socket with a LVDS VGA controller. The HSB-813S achieves outstanding performance and low power consumption.

Onboard features include two serial ports (one RS-232, & one RS-232/422/485), one multi-mode parallel (ECP/EPP/SPP) port, five USB 2.0 ports, a floppy drive controller, and a PS/2 keyboard/ mouse interface.

HSB-813S supports up to 2GB of DDR333 system memory and the chipset used on the HSB-813S is the Intel 82855GME + Intel 82801DB which supports USB 2.0. Video is provided by an integrated VGA controller in the Intel 82855GME chipset that supports CRT and LVDS simultaneous dual independent display, with up to 128Mb shared system memory. The LCD interface is up to 48-bit and supports dual LVDS display.
HSB-813S targets the common industrial applications include factory automation systems and production process control devices. If you are looking for a cost-effective and reliable solution for your essential application, HSB-813S definitely is your first choice.

Specifications


Processor
CPU
Pentium M Socket 479
Processor Misc.

Chipset: Intel 82855GME + Intel 82801DB

Memory
RAM
2x 200-pin 2.5V DDR SODIMM Socket support DDR memory up to 2GB
BIOS/ Bootloader
AWARD Plug & Play FWH BIOS - 4 Mb ROM
Primary IO
Disk Interface
1x FDD, 2x EIDE (UDMA 100), 2 SATA
Audio
AC97 (Mic-in/Line in/Line out/CD-in)
Video Out
Intel 855G Dual Display CRT/LCD
Ethernet
10/100Base-T Ethernet Port 82562EZ/82541GI/82551QM
USB
5x USB 2.0
Serial Ports
1x Parallel EPP/ECP, 1x RS-232, 1x RS-232/422/485
Secondary IO
PS/2
Yes
Display
CRT-VGA Interface
1280 x 1024 @ 32bpp (100MHz)
LVDS Interface
Up to 48-bit LVDS/TTL LCD Support
Multi-Display
Dual Independent CRT+LVDS
Expansion
Bus Expansion
PISA (ISA/PCI) Mini PCI
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS

Mechanical and Environmental


Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
0.71 g (0 lbs)
Power Requirements
Voltage
5 V
Power Misc.

Battery: Lithium battery for data retention

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
HSB-813S-E2 Half-Size PISA SOCKET 479 W/DUAL 100 BaseT Call
HSB-813S-VE Half-Size PISA SOCKET 479 W/100 BaseT Call
HSB-813S-VG Half-Size PISA Socket 479 W/100 & 1000 BaseT Call
