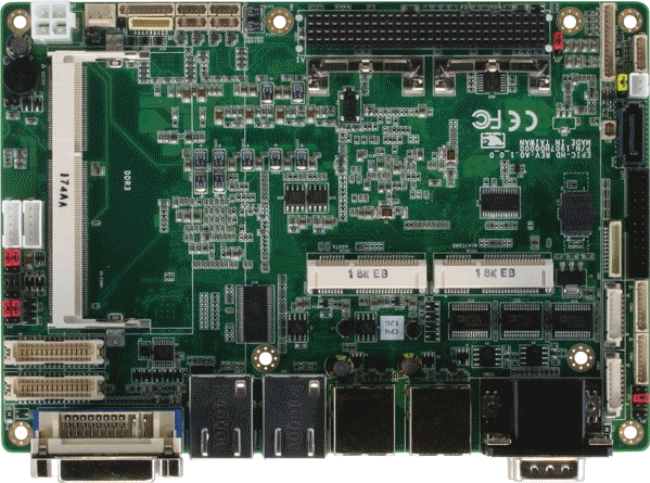

EPIC-HD07

This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

The CPU for this board is EOL, click here for more information on the AMD G-Series (LX800 CPU EOL)

Features

  •  Onboard AMD G Series T56N/T44R/T40R Dual/Single Processor
  • AMD G Series CPU + A55E
  • SODIMM DDR3 1066/1333 MHz, Max. 4GB
  • Gigabit Ethernet x 2, RJ-45 x 2
  • Up to 24-bit Dual Channel LVDS LCD, CRT, DVI-I (Optional)
  • 2CH HD Audio
  • SATA 3.0Gb/s x 1, mSATA Slot x 1
  • USB 2.0 x 8, COM x 6, 16-bit Digital I/O
  • Expansion: Mini Card x 1, PCI-104 x 1 (Co-lay with LPT)
  • +12V, AT/ATX
  • CPU and PCH On Solder Side For Easy System Integration
  • Supports AAEON SDK Utility: Hi-Safe



Overview

The CPU for this board is EOL, click here for more information on the AMD G-Series (LX800 CPU EOL)

The EPIC-HD07 uses an onboard AMD® G-series™ T56N/T44R/T40R Processor and features up to 4GB DDR3 SODIMM 1066/1333 system memory. Moreover, the EPIC-HD07 adopts AMD® A55E chipset to achieve excellent performance. In addition, the EPIC-HD07 deploys a Realtek® 8111E Ethernet chip to feature two RJ-45 ports onboard. The display chipset of EPIC-HD07 supports 18/24-bit dual/single channel LVDS LCD and optional DVI function. In addition to the PCI-104 and Mini Card expansion the EPIC-HD07 also features one SATA, one mSATA for storage, eight USB 2.0 ports, six COM ports, 16-bit Digital I/O co-lay with LPT function for flexible I/O expansion. EPIC-HD07 is an excellent choice for your vital applications.

Specifications

Processor
CPU
AMD G series T56N/T44R/T40R Dual/ Single Core
Clock Speed
1 GHz
Processor Misc.

Chipset: AMD A55E

Memory
RAM
4GB SODIMM DDR3
BIOS/ Bootloader
UEFI
Primary IO
GPIO
Support 16-bit(Programmable)
Disk Interface
1x SATA 3.0 Gb/s, 1x mSATA
Audio
Line-in/Line-out/Mic-in
Ethernet
Realtek 8111E for 10/100/1000Base-TX RJ-45 x 2
USB
8x USB 2.0
Serial Ports
5x RS-232, 1x RS-232/422/485, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.

Display:

  • Chipset: AMD G series CPU integrated.
  • Memory: Shared system memory nup to 384 MB
  • Resolutions:  2560 x 1600 T56N (18W), 1920 x 1200 T44R/T40R (9W/5.5W), 1920 x 1200 for DVI, 1920 x 1200 for dual channel LVDS, 1400 x 1050 for single channel LVDS
  • LCD Interface: 24-bit single channel LVDS x 1, 24-bit dual-channel LVDS x 1



Secondary IO
Keypad
Yes
PS/2
Yes
Touch
Supports 4/5-wire resistive touch screen (optional)
Display
Chipset
AMD G series CPU integrated
Resolution
2560 x 1600 T56N (18W) 1920 x 1200 T44R/T40R (9W/5.5W) 1920 x 1200 for DVI 1920 x 1200 for dual channel LVDS 1400 x 1050 for single channel LVDS
Expansion
Bus Expansion
PCI-104 x 1, Mini Card x 2 (One support mSATA) 16-pin DIO 8 in/ 8out
Misc
Operating Systems
EMAC OE Linux, MicroPython

Mechanical and Environmental

Dimensions
Size
4.5" ×6.5" (114mm × 165mm)
Weight
1.2 lb
Power Requirements
Voltage
12 V
Typical Voltage
12 V
Typical Current
1.64 A
Power Misc.

Battery: Lithium battery
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
80%

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
TF-EPIC-HD07-A10 CPU T56N, Display CRT + LVDS1, CRT + LVDS2 $304.00
TF-EPIC-HD07-A10-01 CPU T44R, Display CRT + LVDS1, CRT + LVDS2 Call
TF-EPIC-HD07-A10-02 CPU T40R, Display CRT + LVDS1, 4x RS-232, 1x Mini Card, Storage 1x SATA, LVDS 1 24-bit, 1CH Call
