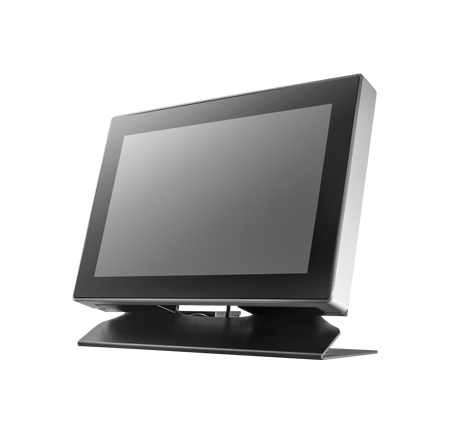

UTC-510D

  • Low Power & Fanless design
  • Built-in Intel® Bay Trail E3825 / N2807 / J1900
  • Glass Panel with Projected Capacitive Touchscreen
  • VESA 75 mm standard mounting
  • Detachable plastic frame
  • Optional POE, Wifi Bluetooth support

UTC-510 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

Features

  • Low Power & Fanless design
  • Built-in Intel® Bay Trail N2807 / J1900 (UTC-510D POE)
  • Built-in Intel® Bay Trail E3825 / J1900 (UTC-510D)
  • Providing Natural Viewing Experience with 16:10 10.1" Display
  • Glass Panel with Projected Capacitive Touchscreen
  • Front panel complies with IP65 protection standard
  • Landscape & Portrait screen mode support by different applications
  • VESA 75 mm standard mounting holes for varied mounting demands
  • Detachable plastic frame design for panel mount applications
  • POE supported on Bay Trail N2807 / J1900 platform

Overview

UTC-510 features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

Manuals
Data Sheets
UTC-510P-R01_S01_DS.pdf
Download (PDF)
UTC-510P-M01E_DS.pdf
Download (PDF)
UTC-510P-B0x_DS.pdf
Download (PDF)
UTC-510D_DS.pdf
Download (PDF)
UTC-510D(POE).pdf
Download (PDF)

Specifications

Processor
CPU
Intel® Bay Trail N2807 / J1900 / E3825
Clock Speed
2.42 GHz
Processor Misc.

Intel® Atom™ E3800 Product Family/Celeron®N2000 Series SoC Processor

  • J1900: Quad core 2.00~2.42 GHz/ 10W
  • N2807: Dual core 1.58~2.16 GHz/ 4.3W
  • E3825: Dual Core 1.33 GHz/ 6W
Memory
RAM
up to 8GB DDR3L Sodimm
RAM Type
DDR3L SODIMM up to 8GB
Primary Flash
1x 2.5 Inch SATA HDD & 1x mSATA
Memory Misc.

Systems built with 2GB of memory installed, other sizes can be custom ordered.

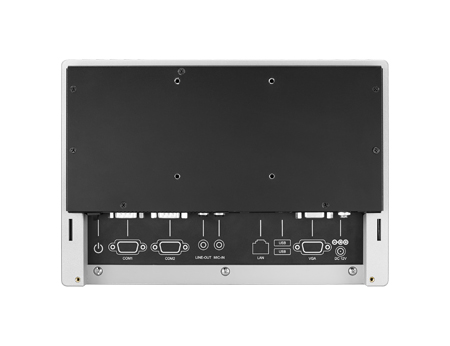

Primary IO
Disk Interface
SATA
Audio
2x 2w speakers
Video Out
HDMI
Ethernet
1 x Gigabit Ethernet (RJ-45)
USB
3 x USB 2.0 / 1 x USB 3.0
Serial Ports
2 x RS-232 COM (COM1 Supports RS422 & RS485)

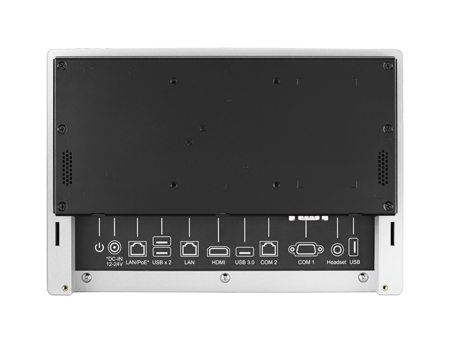

Primary I/O Misc.

POE version has 2x Gigabit Ethernet
Secondary IO
Display
Display Type
10.1" TFT LCD with LED backlight
Resolution
1280 × 800 px
Pixel Pitch
0.1695 × 0.1695 mm
LCD Colors
16.7M
Viewing Angle
170 / 170
Luminance
350
Expansion
Bus Misc.

POE version -

1x Half size MiniPCIe
1x Half size mSATA
Misc
Operating Systems
EMAC OE Linux, Android, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE )

Mechanical and Environmental

Dimensions
Size
10.45" ×7.18" ×1.56" (265mm × 182mm × 39mm)
Weight
1.8 kg
Power Requirements
Voltage
12 V
Typical Current
840 mA
Max Boot Current
1.67 A
Power Misc.

POE model:

  • POE IEEE 802.3at/30W
  • DC Input Rating Optional (12 V/3 A ~ 24 V/1.5 A, 36W ITE Adapter)
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature45 C (113 F)
Upper Operating Humidity
95%
Environmental Misc.

Operating temperature by model-

UTC-510DP-ATB0E 0 ~ 40° C (32 ~ 104° F)
UTC-510DG-ATB0E 0 ~ 40° C (32 ~ 104° F)
UTC-510DP-ATB1E 0 ~ 35° C (32 ~ 95° F)

UTC-510DP-APB0E 0 ~ 45° C (32 ~ 113° F)
UTC-510DP-APB1E 0 ~ 40° C (32 ~ 104° F)

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
UTC-510DG-ATB0 UTC-510DG-ATB0E 10.1" no touch, E3825 2x1.33 GHz, 2GB, SATA, mSATA, 2x COM, 3x USB2, 1x USB3, 1x GbE, 2x speakers, Headphone & Mic, HDMI, 0 ~ 40° C $620.00
UTC-510DP-APB0 UTC-510DP-APB0E 10.1" P-CAP Touch, N2807 2x1.58 GHz, 2GB, SATA, mSATA, 2x COM, 3x USB2, 1x USB3, 2x GbE, POE, 2x speakers, Headphone & Mic, HDMI, 0 ~ 45° C $730.00
UTC-510DP-APB1 UTC-510DP-APB1E 10.1" P-CAP Touch, J1900 4x2 GHz, 2GB, SATA, mSATA, 2x COM, 3x USB2, 1x USB3, 2x GbE, POE, 2x speakers, Headphone & Mic, HDMI, 0 ~ 40° C $755.00
UTC-510DP-ATB0 UTC-510DP-ATB0E 10.1" P-CAP Touch, E3825 2x1.33 GHz, 2GB, SATA, mSATA, 2x COM, 3x USB2, 1x USB3, GbE, 2x speakers, Headphone & Mic, HDMI, 0 ~ 40° C $675.00
UTC-510DP-ATB1 UTC-510DP-ATB1E 10.1" P-CAP Touch, J1900 4x2 GHz, 2GB, SATA, mSATA, 2x COM, 3x USB2, 1x USB3, GbE, 2x speakers, Headphone & Mic, HDMI, 0 ~ 40° C $680.00
Build-to-order

EMAC can build the UTC-510D with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required.

Call for pricing

Additional Options
