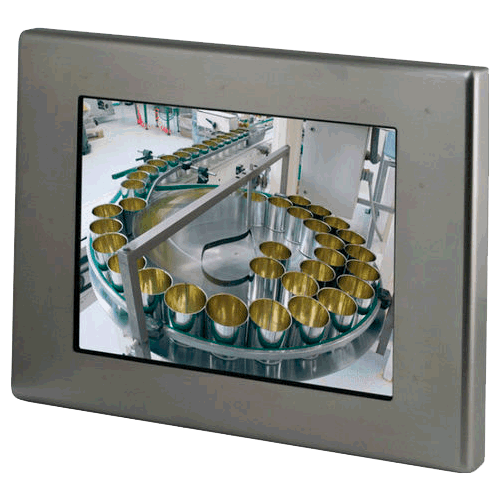

PPC-6123 Stainless 12.1" Panel PC
22Ppi811PP55

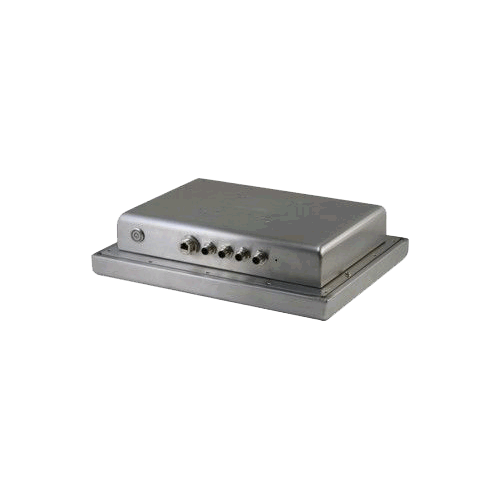

22Ppi111PP55 PPC-6123 Full IP66 Stainless Panel PC is a high-performance computing and completely fan-less solution for applications in the Food industry, because PPC-6123 has the full IP-66 protection, 316L stainless and 7H Hardness surface. PPC-6123 comes with Intel® AtomTM D2550 processor, 12.1” TFT LCD Display with LED Backlight 316L Stainless, 7H hardness surface, Sealing enclosure (IP66 certificated) and Water proof I/O connectors for Ethernet , multi-COM port, audio and USB interfaces.
Features
- 12.1” XGA (1024 x 768) TFT LCD Display
- IP66/NEMA4x-Compliant Stainless Type 316L System
- Intel® Atom™ D2550 Dual Core Onboard 1.86GHz
- Up to 4 GB DDR3 SODIMM (Wide-Temp. and Factory- Installed)
- 1x RS-232, 1x RS-232/422/485
- 2x USB 2.0 Ports
- 1x 10/100/1000Base-TX
- 1x 2.5 Inch SATA Hard Disk Drive / 1x CFast™ Slot (Internal) (Wide-Temp. and Factory- Installed )
- 1x Mini-card
- LCD Display type: 12.1" TFT-LCD
- Max. Resolution: 1024 x 768
- Max. Colors: 262k colors
- Luminance: 500 nits
- Viewing Angle: 160°(H)/160°(V)
- Back Light: LED
- Back Light: MTBF (hours) 50,000
- Touchscreen Type: Glass-Film-glass, anti-scratch 7H
- Light Transmission: 80%
- Lifetime (Times): 10 milliion touches
- Operating Temperature: -4°F ~ 122°F (-20°C ~ 50°C) Ambient without Airflow & -4°F ~ 130°F (-20°C ~ 55°C) Ambient with Airflow
- Storage Humidity 5%~90% @40°C, non-condensing
- Power Requirements: 9~30V DC input
- Gross Weight 18.1 lb (8.2 Kg)
- Dimensions: 14.6” x 11.2” x 3.42” (370mm x 285mm x 87mm)
Overview
PPC-6123 Full IP66 Stainless Panel PC is a high-performance computing and completely fan-less solution for applications in the Food industry, because PPC-6123 has the full IP-66 protection, 316L stainless and 7H Hardness surface. PPC-6123 comes with Intel® AtomTM D2550 processor, 12.1” TFT LCD Display with LED Backlight 316L Stainless, 7H hardness surface, Sealing enclosure (IP66 certificated) and Water proof I/O connectors for Ethernet , multi-COM port, audio and USB interfaces.
Besides, for system integrators, a simple, complete, compact and highly integrated system helps you smoothly build an industrial grade solution into your applications. By this concept, PPC-6123 is design with valuable features (listed in next section) to serve various field of markets such as Factory and Outdoor, especially Food industry.
| Manuals | |
|---|---|
| AFP-6123 Manual 2nd Ed.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| AFP-6123.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ D2550 Dual Core Onboard |
| Clock Speed | 1.86 GHz |
| Memory | |
|---|---|
| RAM | Up to 4 GB DDR3 SODIMM |
| RAM Type | Up to 4 GB DDR3 SODIMM (Wide-Temp. and Factory- Installed) |
| BIOS/ Bootloader | AMI BIOS |
| Primary IO | |
|---|---|
| Disk Interface | 1x 2.5 Inch SATA Hard Disk Drive / 1x CFast™ Slot (Internal) (Wide-Temp. and Factory- Installed ) |
| Ethernet | 1x 10/100/1000Base-TX |
| USB | 2x USB 2.0 Ports |
| Serial Ports | 1x RS-232, 1x RS-232/422/485 |
| Secondary IO | |
|---|---|
| Touch | Glass-Film-glass anti-scratch 7H |
| Display | |
|---|---|
| Display Type | 12.1" TFT-LCD |
| LCD Colors | 262k colors |
| Viewing Angle | 160°(H)/160°(V) |
| Luminance | 500 nits |
| LCD Misc. | LCD
Touchscreen
|
| Expansion | |
|---|---|
| Bus Misc. |
|
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 14.6" ×11.2" ×3.42" (370mm × 284mm × 86mm) |
| Weight | 18.1 lb |
| Dimensions Misc. | 14.6” x 11.2” x 3.42” (370mm x 285mm x 87mm) |
| Power Requirements | |
|---|---|
| Power Misc. | Power Requirements: 9~30V DC input |
| Environmental | |
|---|---|
| Low Operating Temperature | -20 C (-4 F) |
| High Operating Temperature | 55 C (131 F) |
| Upper Operating Humidity | 90% |
| Environmental Misc. | Storage Humidity 5%~90% @40°C, non-condensing ■ IP66/NEMA4x-Compliant Stainless Type 316L System |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| PPC-6123HTT-A1-1012 | 12.1" Touch Panel PC with Atom.D2550, 2G RAM with antenna connector B3 | Call |
| PPC-6123HTT-A2-1012 | 12.1" Touch Panel PC with Atom D2550.2G RAM without antenna connector B3 | Call |
