PPC-104T-N270


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

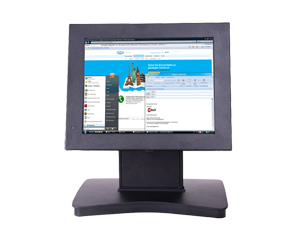

The PPC-104-N270 Touch PC is a Intel Atom N270 1.6 Ghz processor based Touch PC. This 10" Touch-PC is suitable for use in harsh work environments in industry or in point of sale. The unit includes a robust aluminum housing and screwed power plug. (Shown with Optional Stand)

Features


  • 10" Fanless Touch PC
  • Intel Atom N270 1.6 GHz
  • 2GByte DDRII SODIMM
  • 16GB SATA SSD Hard Drive
  • 2 x 10/100/1000Mbit RJ45 Ports
  • Mini-PCI expansion slot
  • Realtek ALC662, 5.1 Channel High Definition Audio Codec w/ 2 loudspeakers
  • 6x USB 2.0 ports, 4 as external
  • VESA-100 bracket holes for mounting
  • 2x 12V DC-In (1x screwable)
  • Wireless 802.11
  • Optional - Bluetooth, IP65, 3-36V

Overview


The PPC-104-N270 Touch PC is a Intel Atom N270 1.6 Ghz processor based Touch PC. This 10" Touch-PC is suitable for use in harsh work environments in industry or in point of sale. The unit includes a robust aluminum housing and screwed power plug. (Shown with Optional Stand)

Manuals
Data Sheets

Specifications


Processor
CPU
Intel Atom N270
Clock Speed
1.6 GHz
Processor Misc.

CPU Misc: 533MHz Front Side Bus

Memory
RAM
up to 2GB RAM
Primary IO
Audio
Realtek ALC 662 Audio Codec, supports 2/4 Channel Audio-Out, 2x 2W loudspeaker
Ethernet
2x 10/100/1000Mbit RJ45 Ports
Serial Ports
3x COM/RS232 headers
Primary I/O Misc.
  • Mini-PCI Expansion slot: for optional wireless networking or other Mini-PCI peripherals.
  • Additional I/O
    • 1x MiniPCI-E (W-Lan card with Intel 4965 Chip integrated)
    • 2x SATA 300MB/s ports
    • 1x Front Panel Audio header (used for loudspeaker)
    • COM1, COM2 used as external connectors
    • COM2 switchable between RS232/RS485 via jumper JP3
    • 1x front panel header

Touchscreen

  • Type: 4-wire analog resistive
  • Typical Reaction Time <10 (ms)
  • Lifetime: >1 Million Touches
Secondary IO
Display
Display Type
10" Color Display
Resolution
1024 × 768 mm
LCD Colors
262, 144
Viewing Angle
150° (horizontal), 130 ° (vertical)
LCD Misc.
  • Max. Showable Resolution: 1920x1200
  • Contrast: 600 : 1
Misc
Operating Systems
EMAC OE Linux, MicroPython

Mechanical and Environmental


Dimensions
Size
10.1" ×8" ×1.9" (256mm × 203mm × 48mm)
Weight
2.9 kg
Power Requirements
Voltage
12 V
Power Misc.
  • 12V DC-In
  • Optional 3-36V (Call for Lead Time - Minimum Order Quantity may apply)
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-104T-N270-1 ATOM N270 1.6GHZ, 2GB RAM, 16GB SATA SSD, 2x LAN Call

Peripheral Options


Product # Description Price
Operating Systems
SL05x-AON-xx EMAC OE Linux 5.x for ARM (Free installation at time of purchase of SBC & media) Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
