i-SIB

This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

Prices starting at $1516.00

Pricing
Datasheet & Manual
Request a quote

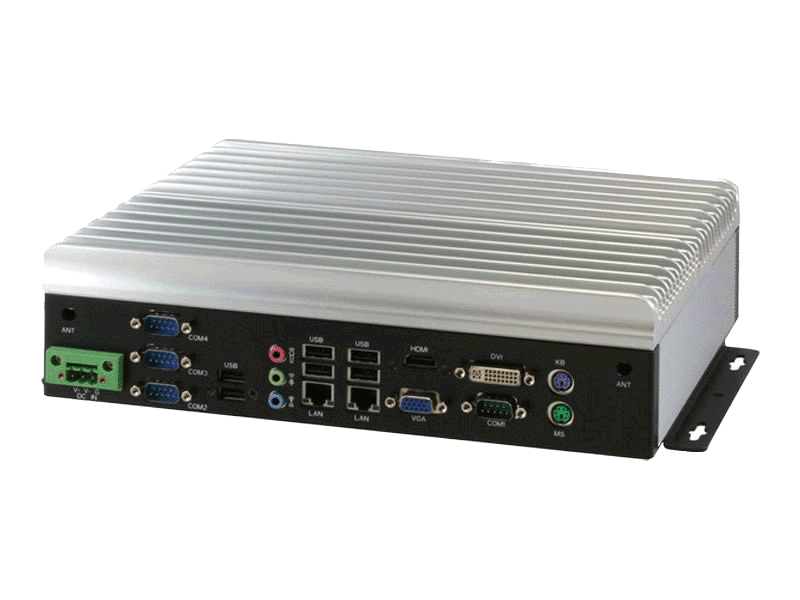

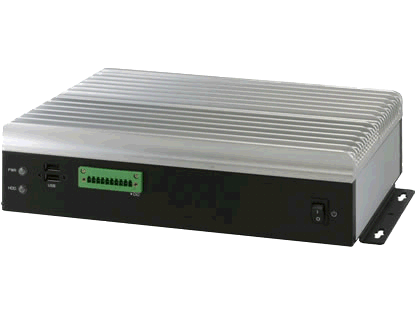

The i-SIB adopts the Intel® Core™ i7/i5 Processor with the Intel® QM57 chipset. System memory features two DDR3 800/1066 SODIMM sockets supporting up to 8 GB. It offers two 10/100/1000Base-TX Ethernet LAN RJ-45 ports, four COM ports and eight USB2.0 ports. The i-SIB uses the Intel® Gen 6.0 integrated Graphics Engine and supports dual view by VGA, DVI, and HDMI.The i-SIB comes comes ready to run with the Operating System installed on a Compact Flash disk.

Features

  • Intel® 32/45nm Core™ i7/i5/i3 rPGA988 CPUs With Graphic& Memory Controller
  • Fanless Design CPU TDP < 35W, Intel® Core™ i7-620M and i5-520M
  • 204-Pin Dual-Channel DDR3 800/1066 MHz SODIMM x 2 (UpTo 8 GB)
  • Intel® Gen 6.0 Integrated Graphics Engine Supports MultipleDisplays with VGA, DVI, HDMI
  • Intel® 10/100/1000Base-TX x 2
  • Wide DC Power Input : 10V DC ~ 30V DC

Overview

The i-SIB adopts the Intel® Core™ i7/i5 Processor with the Intel® QM57 chipset. System memory features two DDR3 800/1066 SODIMM sockets supporting up to 8 GB. It offers two 10/100/1000Base-TX Ethernet LAN RJ-45 ports, four COM ports and eight USB2.0 ports. The i-SIB uses the Intel® Gen 6.0 integrated Graphics Engine and supports dual view by VGA, DVI, and HDMI.The i-SIB comes comes ready to run with the Operating System installed on a Compact Flash disk.

Purchase an EMAC SIB and you should be up, running and building applications the first day. The i-SIB's combination of Fanless, High Performance graphics and an abundance of I/O make the i-SIB the ideal solution for Digital Signage, Kiosk, or any other graphics intensive embedded application.

Click Here for more information on EMAC's Linux for SIBs.

Manuals
i_sib.pdf
Download (PDF)
Data Sheets

Specifications

Processor
CPU
Intel® Core™i7/i5/i3 w/ Graphic & Memory Controller
Clock Speed
2.4 GHz
Processor Misc.

Fanless Design CPU TDP < 35W, Intel® Core™ i7-620M and i5-520M
Memory
RAM Type
204-Pin Dual-Channel DDR3 800/1066 MHz SODIMM x 2 (UpTo 8 GB)
Primary IO
GPIO
8-bit GPIO
Disk Interface
2.5
Audio
Audio line-in
Video Out
CRT/LCD 128MB
Ethernet
Dual 10/100/1000Base-TX
USB
8 USB 2.0 (Full Speed) Host ports
Serial Ports
3 RS232, 1 RS232/485
Secondary IO
Power Supply
Optional Power Supply 12V@ 7A 84W
Misc
Operating Systems
EMAC OE Linux
Operating Systems Compatibility
  • Linux & RTAI Real-Time Linux
  • Microsoft Windows XP, WES09

Mechanical and Environmental

Dimensions
Size
8.27" ×11.22" ×2.95" (210mm × 284mm × 74mm)
Weight
5100 g (11 lbs)
Dimensions Misc.

Mounting: Desk/Wall mount
Power Requirements
Power Misc.
  • Wide DC Power Input: 10V DC ~ 30V DC
  • Power Consumption: 70W
  • Power draw at 12V: 5.83A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature45 C (113 F)

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-00100 I-SIB W/ I5 CPU, 4GB DDR3, 4x COM, 8x USB, 2x GBE, 4GB CF $1516.00
SIB-00110 I-SIB W/ I7 CPU, 4GB DDR3, 4x COM, 8x USB, 2x GBE, 4GB CF $1647.00

Peripheral Options

Product # Description Price
Cables & Adapters
CAB-80-020 C5 US cord "Mickey Mouse" three round. $8.00
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
