SIB-A5D35 Low Power Embedded Server

  • Atmel ARM Cortex A5 ATSAMA5D35 536Mhz
  • 512 MB of LP DDR2 RAM
  • 4 GB of eMMC Flash
  • 16MB of Serial Data Flash
  • 4x Serial ports
  • 1x 10/100 BaseT Ethernet

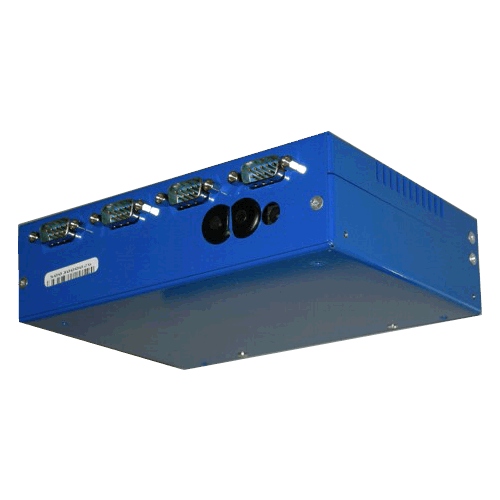

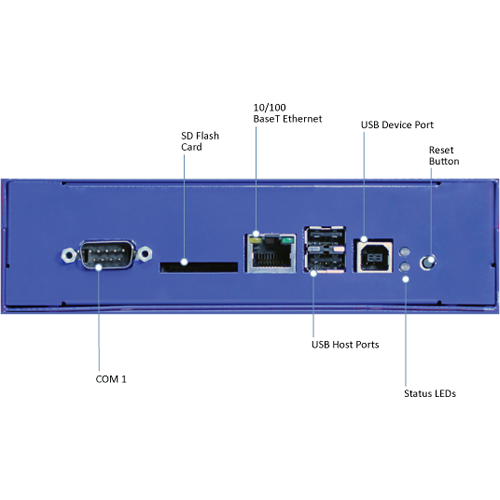

The EMAC Low-Power Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Low-Power SIB utilizes the Atmel ARM Cortex A5 ATSAMA5D35 536Mhz fanless processor allowing it to run Linux with available RTOS. Like all SIBs, the Low-Power SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Low-Power SIB is designed as a light industry server, but it is just as comfortable in a basement wiring closet, in a factory, or sitting on a workbench.

Features

  • Atmel ARM Cortex A5 ATSAMA5D35 536Mhz
  • 512 MB of LP DDR2 RAM
  • 4 GB of eMMC Flash
  • 16MB of Serial Data Flash
  • 3x RS-232 & 1x RS-232/485/422
  • 1x 10/100BaseT Ethernet
  • 2x USB 2.0 (Full Speed) Host ports
  • 1x USB 2.0 (Full Speed) Device port
  • SD/MMC Flash Card Interface
  • I2S Audio Port Line-in & Line-out (Optional on Deluxe)
  • 2x SPI Ports (3 SPI CS)
  • 1x I2C Ports
  • 1x CAN Ports
  • 24x General Purpose digital (PLD) I/O lines (on Carrier Board)
  • 18x GPIO (3.3V) Lines
  • 1x SDIO
  • 4x channels of 12 bit A/D (0 to 2.5V)
  • SD Card Socket with Status LED
  • External Reset Button
  • Battery backed Real Time Clock
  • Timer/Counters/Pulse Width Modulation (PWM) Ports
  • 4 Channel 10-bit Analog-to-Digital converter
  • Extremely Reliable (No Moving Parts)
  • Wall-Mount Power Supply
  • 0-70*C Operation temperature (32-158*F).  Optional:  -40° ~ +85C°
  • Operating Humidity:  10% ~ 90% Relative non-condensing
  • Supports APM Sleep Mode
  • Voltage 5v +/- 10%
  • Power (does not include power drawn by any external USB devices)
  • 415mA Typical (~2 Watts)
  • 490mA Max Boot
  • 1.75" ×6.5" ×4.5" (44.5mm × 165mm × 114.3mm)

Overview

The EMAC Low-Power Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Low-Power SIB utilizes the Atmel ARM Cortex A5 ATSAMA5D35 536Mhz fanless processor allowing it to run Linux and WinCE Operating Systems. Like all SIBs, the Low-Power SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications.  While also offering APM sleep mode, which allows for low power consumption, while still supporting real-time operating systems (RTOS) such as Xenomai. The Low-Power SIB is just as comfortable in a basement wiring closet as it is on a desktop.

The low power requirements of the LP-SIB also means low heat generation and lends itself ideal for battery operated or backed-up systems. Right out of the box, the LP-SIB is configured for Ethernet, serial IP, serial terminal, and raw serial connections. Other devices, including PPP modem links, may be added and configured by the user.

Purchase a EMAC SIB and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.

Manuals
SoM-A5D35_User_Manual.pdf
Download (PDF)
Data Sheets
SIB-A5D35-Datasheet.pdf
Download (PDF)

Specifications

Processor
CPU
Atmel ARM Cortex A5 ATSAMA5D35
Clock Speed
536 MHz
Memory
RAM Type
DDR2
Primary Flash
16MB of Serial Data Flash
Secondary Flash
4 GB of eMMC Flash
Primary IO
GPIO
18x 3.3V I/O lines
SDIO
1x SDIO SD Port
Disk Interface
SD/MMC Flash Card Interface
Audio
I2S Audio Port Line-in and Line-out (Optional on deluxe option)
Ethernet
1x 10/100 BaseT Ethernet
USB
2x USB 2.0 Host, 1x USB 2.0 Device
Serial Ports
3x RS232, 1x RS232/422/485
Primary I/O Misc.

24x General Purpose digital (PLD) I/O lines (on Carrier Board)

  • 8x GPIO Lines are High Drive Digital Output Lines with Status LEDs (500 ma. sink)
  • 8x Digital Input lines
  • 8x Digital Output lines with 20 ma. drive
Secondary IO
CAN
1x CAN port
Timers/ Counters/ PWM
Timer/Counters and Pulse Width Modulation (PWM) Port
Secondary I/O Misc.

2x SPI Ports (3 SPI CS)
2x I2C Ports

Analog
A/D Channels
4
Analog Misc.

4x channels of 12-bit A/D (0 to 2.5V on deluxe option)
Misc
Operating Systems
EMAC OE Linux

Mechanical and Environmental

Dimensions
Size
1.75" ×6.5" ×4.45" (44mm × 165mm × 113mm)
Weight
1 lb
Power Requirements
Typical Voltage
5 V
Typical Current
415 mA
Max Boot Current
490 mA
Power Misc.
Voltage 5v +/- 10%
Power (does not include power drawn by any external USB devices)

Supports APM Sleep Mode
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature70 C (158 F)
Upper Operating Humidity
90%
Environmental Misc.
Optional:  -40° ~ +85C°
Operating Humidity:  10% ~ 90% Relative non-condensing

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-A5D35-000-R SIB-A5D35 Atmel ARM Cortex A5 ATSAMA5D35 536Mhz, 512MB LP DDR2 RAM, 4GB eMMC flash, 5x COM, 2x USB2, 1x LAN, 5v PS. $375.00
SIB-A5D35-031-R SIB-A5D35 Atmel ARM Cortex A5 ATSAMA5D35 536Mhz, 512MB LP DDR2 RAM, 4GB eMMC flash, 5x COM, 2x USB2, A/D, D/A, Audio, 1x LAN, 5v PS. $445.00
Build-to-order

EMAC can build the SIB-A5D35 Low Power Embedded Server with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required.

Call for pricing

Peripheral Options

Product # Description Price
Operating Systems
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
SL050-AON-x EMAC OE Linux 5.0 for ARM (Free installation at time of purchase of SBC & media) Free
