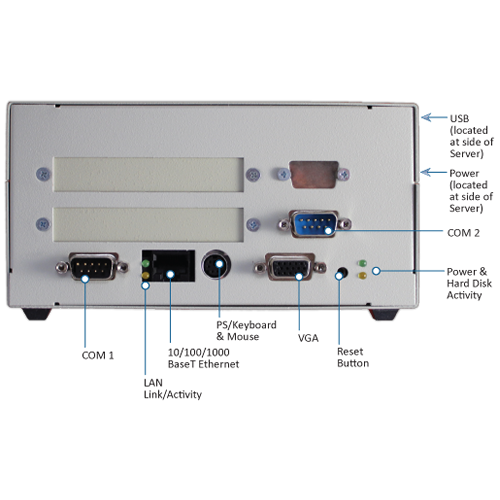

Server In a Box SIB-104


  • AMD Geode LX800 500 Mhz fanless processor
  • 256 MB DDR RAM Expandable to 1GB
  • 4GB Compact Flash Drive Expandable to over 32GB
  • Ethernet, 3x RS-232, RS-232/485, 2x USB 2.0, 8 GPIO lines
  • ISA onboard PC/104 expansion with space for two PC/104 modules
  • No moving parts

The CPU is EOL for this product, please see this article for more information

The EMAC Server-In-a-Box/104 (SIB/104) and Deluxe SIB/104 are powerful servers with a small footprint and low cost.

Features


  • AMD Geode LX800-500 Mhz based SBC
  • 256 MB DDR RAM Expandable to 1GB
  • 4GB Compact Flash Drive Expandable to over 32GB
  • Analog SVGA Video with 2D/3D graphic & MPEG4 decoding
  • 10/100 Base-T Ethernet
  • Three RS-232 & One RS-232/485 Serial Port
  • One Parallel port supports SPP/EPP/ECP
  • Two USB Host ports, USB 2.0 compliant
  • Eight General Purpose I/O lines configurable as Input or Output
  • ISA bus expansion with onboard PC/104 connector
  • Space to accommodate up to two PC/104 modules
  • Extremely Reliable (No Moving Parts)
  • 30 Watt Seperate Brick Power Supply & Enclosure

Overview


The EMAC Server-In-a-Box/104 (SIB/104) and Deluxe SIB/104 are powerful servers with a small footprint and low cost. These SIBs utilizes the AMD Geode LX800, 500MHz fanless processor allowing it to run Linux, WinCE and XPE Operating Systems. Like all SIBs, the SIB/104 have no moving parts and feature a rugged enclosure design making it an ideal choice for most industrial applications. The SIB/104 and Deluxe SIB/104 are just as comfortable in a basement wiring closet as on a desktop.

Purchase an EMAC SIB/104 and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.
Click Here for more information on EMAC's XPE for SIBs.

Manuals
PCM-9375.pdf
Data Sheets

Specifications


Processor
CPU
AMD Geode LX800
Clock Speed
500 MHz
Memory
Memory Misc.

RAM:

    • 256 MB DDR RAM Expandable to 1GB (Standard)
    • 512  MB DDR RAM Expandable to 1GB (Deluxe)


Flash: 4GB Compact Flash Drive Expandable to over 32GB

Primary IO
GPIO
8x GPIO
Video Out
Analog SVGA Video with 2D/3D graphic & MPEG4 decoding
Ethernet
10/100 Base-T Ethernet
USB
2x USB 2.0
Serial Ports
3x RS-232, 1x RS-232/485, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.
  • Ethernet:
    • 10/100 Base-T Ethernet (Standard)
    • Dual 10/100 Base-T Ethernet (Deluxe)

  • Internal Hard Drive (Optional)
  • LVDS LCD video output (Optional)
  • Two additional USB 2.0 Host ports (Optional)
Secondary IO
LPT Port
Yes
Power Supply
30 Watt Seperate Brick Power Supply (Included)
Secondary I/O Misc.

Integrated 60 Watt Power Supply (Optional)

Expansion
Bus Misc.

Space to accommodate up to two PC/104 modules

Misc
Operating Systems
EMAC OE Linux, ROM-DOS 6.22 / MS-DOS 6.22 , Windows Embedded Standard 2009 / WES09 (Windows XPE ) , WES 7 - Windows Embedded Standard 7

Mechanical and Environmental


Dimensions
Size
2.75" ×6.53" ×4.45" (69mm × 165mm × 113mm)
Weight
2 lb
Dimensions Misc.

Mounting: Desk/Wall mount

Power Requirements
Voltage
5 V
Typical Voltage
5 V
Power Misc.
  • Power Supply: 30 Watt Seperate Brick Power Supply & Enclosure
  • Power Requirements:
    • Maximum: +5 V @ 1.2 A, +12 V @ 0.23A
    • Typical: +5 V @ 0.6 A, +12 V @ 0.03A
Environmental
Environmental Misc.
  • Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
  • Wide Temp Version: -4° to 176° F (-20° to 80° C)
  • Operating Humidity: 10% ~ 90% Relative Humidity, non condensing

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-00010 LINUX SIB/104 W/30W PS $455.00
SIB-00210 WES09 SIB/104 W/30W PS $575.00
SIB-02010 DELUXE LINUX SIB/104 W/30W PS $515.00
SIB-02210 DELUXE WES09 SIB/104 W/30W PS $635.00
