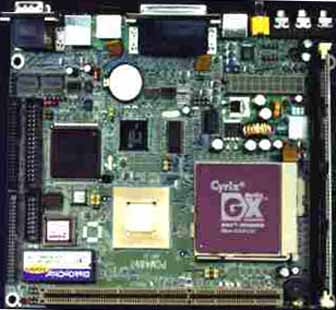

PCM-4897 Single Board Computer

Features

Specifications

Pricing

PCM-4897 Manual (1.70MB)
PCM-4897 Drivers (172KB)

The PCM-4897 is an enhanced, all-in-one single board computer with a local bus SVGA controller and two serial ports. The PCM-4897 offers all the functions of an ATX-compatible industrial computer on a single board, but it fits in the space of 5 1/4" floppy drive(only 5.75" x 8"). For maximum performance, the PCM-4897 also supports On-board features include two serial-ports(two RS-232 ), one parallel port, an enhanced IDE hard-drive controller (for up to two drives), a floppy drive controller and a keyboard-PS/2 mouse interface. The PCM-4897 also has on-board sound, USB ports and composite video out.

The board's watchdog timer can automatically reset the system or generate an interrupt if it stops due to a program bug or EMI problem. The PCM-4897 also complies with the "Green Function" standard, is APM 1.1 compliant, and supports three types of power-saving features: doze, standby, and suspend mode. All display and Ethernet configuration is set through the software. A single Flash chip holds the system BIOS, VGA BIOS and the network boot ROM image. This minimizes the number of chips and eases configuration. You can change the display BIOS or install a boot ROM simply by programming the Flash chip. If you need any additional functions, you can add up to six industry-standard PC/104 modules to the on board PC/104 expansion connector.

FEATURES

NS Geode 233MHz
Supports CRT and 18-bit TFT panels
Integrated AC-97 2.0 (meets PC98™ Basic Audio spec.) SoundBlaster-compatible legacy audio
DiskOnChip®(SSD) up to 1 GB

SPECIFICATIONS

General Functions

CPU: NS Geode 233MHz
CPU type: Intel® Socket 7
BIOS: Award 256KB FLASH BIOS
Chipset: NS CX5530 I/O Chipset NS97317
Memory: Onboard one 168-pin DIMM socket supports 128Mbytes SDRAM
Enhanced IDE: Supports two IDE drives. Supports Ultra DMA33 Mode with data transfer rate up to 33MB/sec.
FDD interface: Supports two floppy disk drives, 5.25" (360KB and 1.2MB) and/or 3.5" (720KB, 1.44MB, and 2.88MB)
Parallel port: Configured to LPT1, LPT2, LPT3 or disabled. Supports SPP, ECP, and EPP modes
Serial port: Two RS-232 serial ports. Ports can be configured as COM1, COM2, COM3, COM4 or disabled individually. (16C550 equivalent)
IR interface: Support one IrDA Tx/Rx header
KB/Mouse connector: 6-pin mini-DIN connector supports PC/AT keyboard and PS/2 mouse
USB connectors: Dual USB ports onboard
Battery: Lithium battery for data retention
DMA channels: 7 DMA channels (8237 equivalent)
Interrupt levels: 15 interrupt levels (8259 equivalent)
Power management: I/O peripheral devices support power saving and doze/standby/suspend modes. APM 1.2 compliant

Flat panel CRT Interface

Chipset: NS CX5530
Display memory: Shared memory up to 4MB
Display type: Supports non-interlace CRT and TFT Flat Panel displays. Can display both CRT and Flat Panel simultaneously
Resolution: Up to 1024 x 768@64K colors (CRT/LCD simultaneous display)

Audio Interface

Chipset: NS CX5530. Compatible with SoundBlaster, SoundBlaster Pro, and Windows Sound System Dual DMA support w/FIFO buffers, full duplex operation
Interface: Onboard Line in, Line out, and Mic in jacks

TV Display Interface

Chipset: Chrontel 7003
Interface: Onboard (RCA/S) jacks support NTSC/PAL composite outputs

SSD Interface

One 32-pin DIP socket supports M-Systems DiskOnChip® 2000 series up to 1 GB

Expansion Interface

PISA slot: One PCI/ISA slot onboard

Mechanical and Environmental

Power supply Voltage: +3.3V, +5V, +12V, -12V
Typical power requirement: +5V @ 2.2A (Cyrix GXm 200MHz)
Operating temperature: 32° to 140° F (0° to 60° C)
Board size: 200 mm(L) x 160mm(W)
Weight: 1.2 lb. (0.5 kg)

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-4897 ... NS Geode Board
(CPU & Memory Not Included)

USD ~~252.00~~

EMAC Special ...

227.00

Available Options
Central Processing Unit (CPU)
System Memory (RAM)
Hard Drives
Operating Systems
PC/104 Modules
LCDs and Touchscreens
Enclosures and Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
