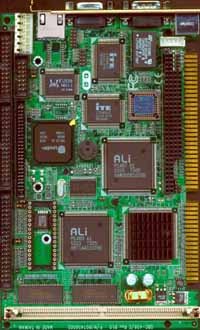

The SBC-456 is an all-in-one single board 486 computer with an on-board flat panel VGA/LCD controller. It packs all the functions and display capabilities of an industrial computer onto a single, half-size card. The SBC-456 is particularly suited for embedded applications.

The on-board PCI-bus controller uses the SM-712 chipset with 2 MB of SGRAM video memory. This chipset, used with the local PCI-bus, enables 32-bit graphic throughput at up to 33 MHz. Excellent for display-intensive applications, it supports various LCD types, including TFT, STN, B/W and EL.

Another feature of the SBC-456 is the inclusion of a high speed, local bus IDE controller. This controller supports (through ATA PIO) mode 3 and mode 4 hard disks, enabling data transfer rates in excess of 11 MB/second. Up to four IDE devices can be connected, including large hard disks, CD-ROM drives, tape backup drives or other IDE devices. The built-in, enhanced IDE controller provides a 4-layer, 32-bit, posted write-buffer and a 4-layer, 32-bit read-prefetch buffer to boost IDE performance.

On-board features include a DiskOnChip® Socket, a CompactFlash™ Socket, three high-speed RS-232 serial ports with 16C550 UARTs, one high-speed RS-232/422/485 serial port, one bi-directional SPP/EPP/ECP parallel port and a floppy-drive controller. In addition to the 486's 16 KB of on-chip cache memory, the SBC-456 includes an extra 128 KB of second level on-board cache memory and 10/100Base-T Ethernet support.

If program execution is halted by a program bug or EMI, the board's 16-stage watchdog timer can automatically reset the CPU or generate an interrupt. This ensures reliability in unmanned or standalone systems.

The SBC-456 supports 5 V FPM/EDO DRAM with 8 MB on-board. It also provides one 72-pin SIMM (Single In-line Memory Module) socket for its on-board system DRAM. This socket gives you the flexibility to configure your system from 8 MB up to 64 MB of DRAM.

FEATURES

Onboard AMD 486DX5-133 CPU (SQFP)
SM712 LCD controller with 2MB EDO memory
One 10/100Base-T Fast Ethernet
Supports DiskOnChip® up to 1GB and Compact Flash™ Memory
Four Com Ports
PC/104 expansion connector

SPECIFICATIONS

General Functions

CPU: AMD 486DX5-133 (SQFP)
Chipset: ALi 1487/1489
System Memory: FPM/EDO On board 8M, SIMM x 1, Max. 64MB
2nd Cache Memory: Onboard 128KB L2 Cache
BIOS: AMI 128KB Flash BIOS
I/O Chipset: ITE IT8661F, Fully 16-bit I/O decoded
I/O: IDE x 1, FDD x 1, KB x 1, Mouse x 1, RS-232 x 3, RS-232/422/485 x 1, Parallel x 1
Watchdog Timer: Can generate a system reset, IRQ15 or NMI
Battery: Lithium battery
DMA: 7 DMA channels (8237 equivalent)
Interrupt: 15 interrupt levels (8259 equivalent)

Flat Panel/CRT Interface

Chipset: SM-712
Display Memory: Built in 2MB SGRAM
LCD Interface: 36 bit TFT/DSTN/MONO LCD panel
Resolution: 1024 x 768@ 16bpp colors

Ethernet Interface

Chipset: Realtek™ RTL8139C
Ethernet Interface: 10/100Base-T RJ-45 connector x 1

SSD Interface

Supports DiskOnChip® up to 1GB, Compact Flash™ Socket

Expansion Interface

ISA interface, PC/104 connector x 1

Mechanical and Environmental

Power supply Voltage: +5V (4.75V to 5.25V), -12V, +3.3V, AT
Operating temperature: 32° to 140° F (0° to 60° C)
Board Size: 7.3" (L) x 4.8" (W) (185 mm x 122 mm)
Weight: 0.66 lb. (0.3 kg)

PRICING (Single Unit. Includes: Integration, Setup, and Testing)
Not Recommended for New Designs. Consider: HSB-440I

SBC-456E ... 486 SBC w/ 8 MB/ ISA/ PC104/ Ethernet	361.00
SBC-456 .... 486 SBC w/ 8 MB/ ISA/ PC104	336.00

Available Options
System Memory (RAM)
Hard Drives
Flash Memory (DiskOnChip®)
Operating Systems
PC/104 Modules
LCDs and Touchscreens
Enclosures, Backplanes,& Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
