PCM-9581 Pentium M EBX SBC

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

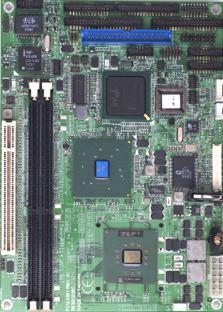

PCM-9580 SBC Image

Features

Specifications

Pricing

PCM-9581 Manual (3.4 MB)

PCM-9581 is centered on a powerful Intel® Pentium® M or Celeron® M processor with Award® BIOS that supports enhanced Intel “SpeedStep” technology and uses Intel’s 855GME and ICH4 I/O chipset. These chipsets are specifically for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to preserve battery life.

The PCM-9581's design is based on the EBX form factor and provides support for PCI module expansion. The EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 5.75" x 8") offers all the functions of a single board industrial computer, but still fits in the space of a 5.25" CD-ROM drive.

On-board features include: four serial ports, one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) 1.1/2.0 ports, an optional floppy drive controller, and a PS/2 keyboard/mouse interface. The built-in high-speed PCI IDE controller supports both PIO and UDMA/100 bus master modes. Up to four IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives.

Highly Integrated Multimedia SBC

The PCM-9581 is a highly integrated multimedia SBC that combines audio, video, and network functions on a single computer board the size of a 5.25" CD-ROM drive. It provides an AC-97 interface and supports Line-in, Line-out, and MIC-in via optional PCM-232 audio module, and up to 2048 x 1536 resolution. The PCM-9581 also supports optional TV-out for NTSC/PAL multimedia applications.

FEATURES

Embedded Celeron 600 MHz or Pentium® M @ 1.1 GHz, 1.6 GHz optional
Lower Cost Socketed SKt479w/855GME version available
Fanless Celeron Operation
High Performance, Low Power
Supports Gigabit Ethernet (PCM-9581FG)
Supports Embedded USB, 4 USB 2.0 ports
Supports up to 36-bit LVDS interface
Support ECC DDR Memory
AC97 3D surround stereo sound

SPECIFICATIONS

Single Board Computer System

Form Factor: EBX
CPU: Embedded Intel ® Pentium ® M Processor 1.1 GHz, 1.6 GHz (optional) w/64KB primary cache memory, Socket 478
L2 Cache: 1 MB on Pentium M processor
BIOS: AWARD 512 KB Flash BIOS
Chipset: System Chipset Intel 855GME GMCH/ICH4 Chipset 400MHz FSB
System Memory: Two 184 pin DIMM sockets, support ECC Double Data Rate (DDR) 128 MB to 2 GB, accepts 128/256/512/1024 MB DDR200/266/333 DRAM
Expansion Interface: Support for PCI 2.2 with 32-bit/33 MHz slot and Mini PCI interface
Watchdog Timer: 255 level timer intervals from 15 sec to 14835 sec
Battery: Lithium 3 V/196 mAH

Standard I/O

Enhanced IDE Interface: Dual IDE Channelsd (Ultra DMA 100)
Floppy Disk Drive Interface: 1 Floppy channel
Keyboard/Mouse Support: Mini-DIN connector for standard PS/2 keyboard and mouse
Serial Ports: 3 RS-232 ports and 1 RS-232/422/485 port
Parallel Port: 1 Parallel Port supports SPP/EPP/ECP mode
USB Ports: 4 USB 1.1/2.0 compliant ports
IrDA: 115 Kbps,IrDA 1.1 Compliant
GPIO: 8-bit general purpose input/output lines

Audio

ICH4 support AC’97 3D surround stereo sound. Supports Speaker out, CD-input, Line-in, Line-out, Microphone input.

Display

Chipset: Intel 855GME,Supports a single 1.5 V Accelerated Graphics Port Interface
Memory Size: Optimized Shared Memory Architecture,supports 1MB/8 MB frame buffer using system memory
Resolution
- CRT Mode: pixel resolution up to 1600 x 1200 at 85-Hz and 2048 x 1536 at 75-Hz
- LCD Mode: Dual channel LVDS panel support up to UXGA panel resolution with frequency range from 25 MHz to 112 MHz
LVDS: Supports 2 Channel 36-bit (optionally up to 48-bit) LVDS interface
TV-Out: Supports both NTSC/PAL, S-video and Composite Video (requires optional cable)

Solid State Disk

CompactFlash™ card Type I/II

Ethernet

Chipset:
- Intel® 82551ER 10/100 Base-T (PCM-9581F)
- Optional Intel® Gigabit 82551QM/82540EM (PCM-9581FG)
Interface:
- IEEE 802.3u 100 BASE-T Fast Ethernet comatible (PCM-9581F)
- IEEE 802.3z/ab 1000 BASE-T Gigabit Ethernet compatible (PCM-9581FG)

Mechanical and Environmental

Dimensions: 146 mm x 203 mm (5.7" x 8.0")
Weight: 0.85 kg (1.9 lbs.)
Power Supply Voltage: ATX,with Vcore 2 phase, +5 V power only can work
Power Requirements (Pentium M 1.6 G,256 M DDR 300)
- Maximum: +5 V @3.8 A, +12 V @0.4 A
- Typical: +5 V @3.8 A, +12 V @0.4 A
Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
Operating Humidity: 0 ~ 90% Relative Humidity, noncondensing

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22
Wind River VxWorks
QNX Neutrino RTOS

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-9581F-00 ... SKt479w/855GME SBC w/ VGA/ LCD/ LVDS/ LAN/ USB 2.0/ Audio	341.00
PCM-9581FG-00 .. SKt479w/855GME SBC w/ VGA/ LCD/ LVDS/ Gig LAN/ USB 2.0/ Audio	363.00
(CPU, Fan, Memory, Flash Disk, Cabling Kit, USB & TV Cables not included.)

PCM-9581F-M ... Embedded Celeron 600MHz 855GME SBC w/ VGA/ LCD/ LVDS/ LAN/ USB 2.0/ Audio	369.00
PCM-9581F-S0 ... Pentium M SBC w/ 1.1G CPU VGA/ LCD/ LVDS/ LAN/ USB 2.0/ Audio	807.00
PCM-9581FG-S0 .. Pentium M SBC w/ 1.6G CPU VGA/ LCD/ LVDS/ Gig LAN/ USB 2.0/ Audio	885.00
(Fan, Memory, Flash Disk, Cabling Kit, USB & TV Cables not included.)

Optional Components

PCM-10586-61 ... Wiring Kit for PCM-9581F	48.00
PCM-10586-6A ... Wiring Kit for PCM-9581FG	48.00
CAB-40-001-1 ... USB 2 Port Cable w/ Mounting Bracket	11.00
1703050306 ..... TV-Out Cable	10.00

Available Options
Central Processing Unit (CPU)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
