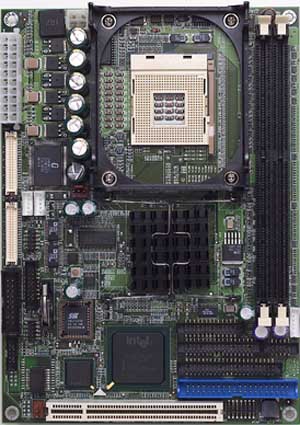

PCM-9580


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The PCM-9580 is a Socket 478 Pentium® IV single board computer (SBC) with Gigabit Ethernet, USB 2.0, 2-channel 48-bit LVDS, audio controller, a 4X AGP SVGA controller, one PCI slot, and an optional TV-out function. It supports Pentium® IV up to 3.06 GHz. The PCM-9580's design is based on the EBX form factor and provides support for PCI module expansion. The EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration.

Features


  • Socket 478 up to 3.06 GHz Intel® Pentium® 4
  • Supports Gigabit Ethernet (PCM-9580FG)
  • Supports Embedded USB, 4 USB 2.0 ports
  • Supports 2-channel 48-bit LVDS interface
  • Optional Audio Interface

Overview


The PCM-9580 is a Socket 478 Pentium® IV single board computer (SBC) with Gigabit Ethernet, USB 2.0, 2-channel 48-bit LVDS, audio controller, a 4X AGP SVGA controller, one PCI slot, and an optional TV-out function. It supports Pentium® IV up to 3.06 GHz. The PCM-9580's design is based on the EBX form factor and provides support for PCI module expansion. The EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 5.75" x 8") offers all the functions of a single board industrial computer, but still fits in the space of a 5.25" CD-ROM drive.

On-board features include: four serial ports, one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) 1.1/2.0 ports, an optional floppy drive controller, and a PS/2 keyboard/mouse interface. The built-in high-speed PCI IDE controller supports both PIO and UDMA/100 bus master modes. Up to four IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives.

The PCM-9580 features power management to minimize power consumption. It complies with the "Green Function" standard and supports Doze, Standby and Suspend modes. In addition, the board's watchdog timer can automatically reset the system or generate an interrupt if the system stops due to a program bug or EMI.
Highly Integrated Multimedia SBC

The PCM-9580 is a highly integrated multimedia SBC that combines audio, video, and network functions on a single computer board the size of a 5.25" CD-ROM drive. It provides an AC-97 interface and supports Line-in, Line-out, and MIC-in via optional PCM-232 audio module, and up to 1760 x 1200 resolution at 16.8 million colors with an 8 to 64 MB frame buffer (shared with system memory). Major on-board devices adopt PCI technology, to achieve outstanding computing performance when used with Intel® Pentium® IV processors. The PCM-9580 also supports optional TV-out for NTSC/PAL multimedia applications.

Manuals
Data Sheets

Specifications


Processor
CPU
Sock 478 for Intel® Celeron®/ Pentium® 4 (Northwood)/ Pentium® 4-M
Processor Misc.
  • L2 Cache: 256/512 KB on Celeron®/Pentium® 4 Processor
  • Chipset: System Chipset Intel® 845GV (845GV GMCH+ 82801 ICH4) 400/533 MHz FSB
Memory
RAM
2x 184-pin DIMM sockets support Non-ECC DDR Up to 2GB
Primary Flash
CompactFlash™ card Type I/II
BIOS/ Bootloader
AWARD 512 KB Flash BIOS
Primary IO
Disk Interface
1x FDD, 1x EIDE (UDMA 100) supporting 2x IDE devices
Audio
ICH4 support AC97 2.0 compliant
USB
4x USB 1.1/2.0 compliant
Serial Ports
4x RS-232
Primary I/O Misc.
  • Parallel Port: 1 Parallel Port supports SPP/EPP/ECP mode
  • Optional PCM231A: Line-in/Line-out/Mic-in support

Display

  • Chipset: Intel 845GV +Chrontel CH7017
  • Memory Size: 8 to 64 MB frame buffer using system memory
  • Resolution
    • CRT Mode: Max. 1760 x 1200 @ 32 bpp at 85 Hz
  • LVDS: Supports 2 Channel (2 x 24 bit) LVDS interface
  • TV-Out: Supports both NTSC/PAL, S-video and Composite Video

Ethernet

  • Chipset:
    • Intel® 82551ER (PCM-9580F)
    • Intel® 82540EM (PCM-9580FG)
  • Interface:
    • IEEE 802.3u 100 BASE-T Fast Ethernet comatible (PCM-9580F)
    • IEEE 802.3z/ab 1000 BASE-T Gigabit Ethernet compatible (PCM-9580FG)
Secondary IO
PS/2
Yes
Display
Chipset
Intel 845GV +Chrontel CH7017
Resolution
CRT Mode: Max. 1760 x 1200 @ 32 bpp at 85 Hz
LVDS Interface
Supports 2 Channel (2 x 24 bit) LVDS interface
Expansion
Bus Expansion
1x PCI
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Operating Systems Compatibility
  • RTAI Real-Time Linux
  • Wind River VxWorks
  • QNX Neutrino RTOS

Mechanical and Environmental


Dimensions
Size
5.7" ×8" (144mm × 203mm)
Weight
0.85 kg
Power Requirements
Max Boot Current
5.2 A
Power Misc.
  • Battery: Lithium 3 V/196 mAH
  • Power Supply Voltage: +5 V ± 5%, +12 V ± 5%, +3.3 V ± 5% (ATX 2.03 or ATX +12V 1.3)
  • Typical Power Requirement0.5A @ +5 V, 4.4A @ +12 V, 2.7A @ +3.3 V (with 256 MB DRAM, Pentium 4 3.06 GHz)
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9580F Socket 478 SBC W/ VGA/ LCD/ LVDS/ LAN/ USB 2.0/ Audio Call
PCM-9580FG Socket 478 SBC W/ VGA/ LCD/ LVDS/ GB LAN/ USB 2.0/ Audio Call

Peripheral Options


Product # Description Price
Peripherals
PCM-10586-6 Wiring kit for PCM-9580F Call
PCM-10586-6G Wiring kit for PCM-9580FG Call
PCM-231A Audio Module Call
Cables & Adapters
CAB-40-001-1 USB 2 port cable w/ mounting bracket $11.00
