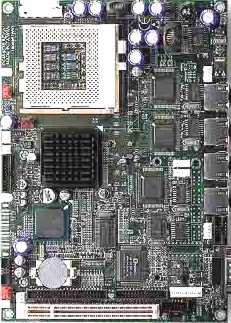

The PCM-9578 is a Socket 370 SBC designed with customer needs in mind. With the ability to accept Celeron or Pentium III processors up to 1.26GHz, supply 3 or 4, 10/ 100 Mbps Ethernet ports, the PCM-9578 is right at home in any network environment. The PCM-9578 can be used as a triple Ethernet firewall/DMZ device or a four Ethernet port device that allows centralized management of a Secure Virtual Network, including firewall security and VPNs or PCI add-on cards for encryption acceleration. Applied in any network environment or in a stand-alone chassis supplied by EMAC, the PCM-9578 has the processing power and reliability to handle your mission critical, high availability applications.

This product uses the Intel 815E 133 MHz Front-Side bus chipset with Northbridge and Integrated 2D/3D/Video Accelerator and supports 4x AGP VGA/LCD interface and up to 64 MB frame buffer using system memory. The board is effective for use as a mini-server or gateway device with the ability to add more ethernet ports through its fast PCI slot. The PCM-9578's powerful Pentium® III 1.26GHz, Multi-Port Ethernet, USB 1.1 and solid system chipset make it a perfect core technology for server equipment and other long life applications.

FEATURES

Socket 370 supports up to Pentium® III/512K 1.26GHz
Supports 3 or 4 Ethernet Ports with on-board RJ-45 Jacks
Provision for 8 GPIO lines for general purpose use or LAN control LED indicators
133MHz FSB and 4X AGP graphics for high performance applications

SPECIFICATIONS

Standard SBC Functions

CPU: Socket 370 for Intel® Celeron™/Pentium® III/512k (Tualatin) up to 1.26GHz
BIOS: Award 512 KB Flash memory
System memory: One SODIMM socket, 64 MB up to 512 MB SDRAM (PC133)
2nd cache memory: supports 128KB/256KB/512KB on the processor
Enhanced IDE interface: One external EIDE channel supports up to two EIDE devices. BIOS auto-detect, PIO Mode 3 or Mode 4, UDMA33 transfe
FDD interface: Optionally supports up to two FDDs
Serial ports: Two RS-232 serial ports
Parallel port: Parallel port supports SPP/EPP/ECP mode
Keyboard/mouse connector: Supports standard PS/2 keyboard and a PS/2 mouse
Power management: Supports power saving modes including Normal/Standby/Suspend modes. APM 1.2 compliant
USB: Two universal serial bus ports USB 1.1 compliant
Watchdog timer: 62 level timer intervals
Expansion: 1 PCI slot

VGA Video Interface

Chipset: Intel 815E chip with integrated 2D/3D/Video Accelerator
Frame buffer: Supports 8/32/64MB frame buffer with system memory
Interface: 4X AGP VGA interface
Display mode: CRT Modes: 1600 x 1200@8bpp (75Hz), 1280 x 1024@16bpp (85Hz), 1024 x 768@24bpp (85Hz)

Ethernet Interface

Chipset: 1 - Intel® 82801/82562ET and 2/3 - Intel® 82559ER
Ethernet interface: IEEE 802.3u 100BASE-T Fast Ethernet compatible
I/O address switchless setting
Built-in boot ROM

Solid State Disk

Supports one 50-pin socket for CFC type I/II

Mechanical and Environmental

Dimensions (L x W): 203 x 146 mm (8" x 5.75")
Power supply Voltage: +5V ±5%
Power requirements:
- Max: 10A @ +5V, 1.02A @ +12V (within 5ms after power on)
- Typical: 5.6A @ +5V (with 256 MB DRAM, Intel® Pentium®III/1.26GHz)
Operating temperature: 32 to 140°F (0 to 60°C)
Operating Humidity: 0% ~ 90% Relative Humidity, non-condensing
Weight: 0.85 kg (weight of total package)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22
Wind River VxWorks
QNX Neutrino RTOS

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-9578F-03 ....... SBC w/ 3 LAN, USB 1.1, and VGA	336.00
PCM-9578F-04 ....... SBC w/ 4 LAN, USB 1.1, and VGA	359.00

(CPU, Memory, Flash Disk, and Wiring Kit not included.)

Optional Add-ons

PCM-10586-5E00 ... Installation Wiring Kit (PCM-9578F)	39.00
CAB-40-001-1 ... USB Cable for PCM-9578	11.00
CAB-80-003-1 ... Power Cable ATX-EBX Adapter	8.00

Available Options
Central Processing Unit (CPU)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
LCDs and TouchScreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
