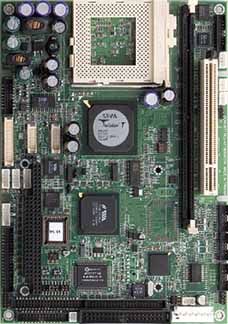

The new PCM-9577 is a socket 370 Pentium® III 5.25" form factor single board computer (SBC) with onboard Gigabit Ethernet and four USB 2.0 ports. The socket 370 can support up to Pentium® III/512K(Tualatin) 1.26GHz. This SBC includes a 4X AGP controller, an AC97 audio interface, a PCI Gigabit or 100Base-T Ethernet interface, 4 USB 1.1 or USB 2.0 ports and 2 channel LVDS interface. Other on-board features include a PCI slot, PC/ 104, optional Mini PCI socket, an LPT, UDMA/100 IDE, IrDA and 4 serial ports: three RS-232s, and one RS-232/422/ 485. The SSD solution supports CompactFlash™ cards.

This product uses a VIA Twister™ chip with Northbridge and Integrated Savage4™ 2D/3D/Video Accelerator and supports 4X AGP VGA/LCD interface and up to 32 MB frame buffer using system memory. The board is effective for use as a mini-server or gateway device with the ability to add more ethernet ports through its fast PCI slot. The PCM-9577's powerful Pentium® III 1.26GHz, Gigabit Ethernet, USB 2.0 and solid system chipset make it a perfect core technology for server equipment and other long life applications. The high quality TV-out capability makes numerous other applications available also.

True Multimedia SBC

The PCM-9577 supports 3D audio and complies with the AC97 standard and 3D engine 4X AGP VGA/LCD controller which supports DVD play. The PCM-9577 combines audio, TV-out (optional), and network functions on a single board computer the same size as the 5.25" form factor standard. Optional TV-out supports NTSC and PAL formats through composite video connectors and S-Video connectors via the optional cable kit.

FEATURES

Socket 370 supports up to Pentium® III/512K 1.26GHz
Supports Gigabit Ethernet (PCM-9577FG)
Supports Embedded USB, 4 USB 2.0 ports (PCM-9577FG)
133MHz FSB and 4X AGP graphics for high performance applications
Supports 24/36 bit TFT/DSTN LCD and 2 channel LVDS
Optional TV-Out

SPECIFICATIONS

Standard SBC Functions

CPU: Socket 370 for Intel® Celeron™/Pentium® III/512k (Tualatin) up to 1.26GHz
BIOS: Award 256 KB Flash memory
System memory: One DIMM socket, 64 MB up to 512 MB SDRAM (PC133)
2nd cache memory: supports 128KB/256KB/512KB on the processor
Enhanced IDE interface: Two channels supports up to four EIDE devices. BIOS auto-detect, PIO Mode 3 or Mode 4, UDMA33 transfer. Primary IDE supports up to UDMA66/100 mode.
FDD interface: Supports up to two FDDs.
Serial ports: Three RS-232 serial ports (COM1/3/4). One RS-232/422/485 serial port (COM2).
Parallel port: Parallel port supports SPP/EPP/ECP mode
Infrared port: Shared with COM4. Transfer rates up to 115Kbps
Keyboard/mouse connector: Supports standard PS/2 keyboard and a PS/2 mouse
Power management: Supports power saving modes including Normal/Standby/Suspend modes. APM 1.2 compliant
Watchdog timer: 62 level timer intervals
USB:
- Four universal serial bus ports USB 1.1 compliant (PCM-9577F)
- Four USB 2.0 Ports support embedded USB Type 1 shared with USB port 3 and port 4 (PCM-9577FG)
Expansion: 1 PCI slot, PC/104 connector for ISA and PCI control board, Mini PCI socket for Type III MiniPCI peripheral device

VGA/Flat-Panel Interface

Chipset: VIA Twister™ chip with integrated Savage4™ 2D/3D/Video Accelerator
Frame buffer: Supports 8/16/32MB frame buffer with system memory
Interface: 4X AGP VGA/LCD interface with support for 9 / 12 /15 / 18 / 24 / 36-bit TFT and 16 / 24-bit DSTN panel
Display mode: CRT Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (85Hz); LCD/Simultaneous Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (60Hz)
LVDS: Supports 2 Channel (2 x 18bit) LVDS interface

Ethernet Interface

Chipset: Intel® 82551ER(PCM-9577F) Intel® 82540EM (PCM-9577FG)
Ethernet interface: IEEE 802.3u 100BASE-T Fast Ethernet compatible (PCM-9577F) IEEE 802.3z/ab 1000 BASE-T Gigabit Ethernet compatible (PCM-9577FG)
I/O address switchless setting
Built-in boot ROM

Audio Function

Chipset: VIA 82C686
Audio controller: AC97 ver. 2.0 compliant interface
Audio interface: Mic in, Line in, CD audio in, Line out, Speaker L and R

Solid State Disk

Supports one 50-pin socket for CFC type I/II

Mechanical and Environmental

Dimensions (L x W): 203 x 146 mm (8" x 5.75")
Power supply Voltage: +5V ±5%, +12V ±5%
Power requirements:
- Max: 10A @ +5V, 1.02A @ +12V (within 5ms after power on)
- Typical: 5.6A @ +5V, 0.17A @ +12V (with 256 MB DRAM, Intel® Pentium®III/1.26GHz)
Operating temperature: 32 to 140°F (0 to 60°C)
Operating Humidity: 0% ~ 90% Relative Humidity, non-condensing
Weight: 0.85 kg (weight of total package)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22
Wind River VxWorks
QNX Neutrino RTOS

Not Recommended for New Designs. Contact us for a recommended replacment.

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-9577F ........ SBC w/ LAN, USB 1.1, and VGA/LCD	289.00
PCM-9577FG ....... Above SBC w/ Gb LAN and USB 2.0	314.00

(CPU, Memory, Flash Disk, and Wiring Kit not included.)

Optional Add-ons

PCM-10586-5A ... Installation Wiring Kit (PCM-9577F)	39.00
PCM-10586-5G ... Installation Wiring Kit (PCM-9577FG)	39.00
CAB-40-001-1 ... USB Cable for PCM-9577	11.00
CAB-80-003-1 ... Power Cable ATX-EBX Adapter	8.00
CAB-15-002-1 ... TV-Out Cable (PCM-9577F/FG-TV ONLY)	8.00
