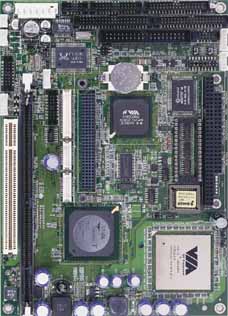

The new PCM-9575 is a new EBX form factor 5.25" single board computer (SBC) with an onboard new VIA Embedded low power Eden 667MHz, or Eden 400MHz processor. The VIA Eden processor uses advanced 0.13µ CMOS technology with 128KB L1 cache memory and 64KB L2 cache memory on-die. This board can operate without a fan at temperatures up to 60° C (140° F) and typically consumes under 14 Watts while supporting numerous peripherals. This SBC includes a 4X AGP controller, a PCI audio interface, a PCI Ethernet interface, and 2 channel LVDS interface. Its design is based on the EBX form factor that supports the PC/104+ interface for ISA/PCI module upgrades. Other on-board features include a PCI slot, an LPT, 2 USBs, IrDA and 4 serial ports: three RS-232s, and one RS-232/422/485. The SSD solution supports both DiskOnChip® 2000 and CompactFlash™ cards.

This product uses a VIA Twister™ chip with Integrated Savage4™ 2D/ 3D/Video Accelerator and supports 4X AGP VGA/LCD interface and up to 32 MB frame buffer using system memory. The board is effective for use as a mini-server or gateway device, through its ability to add more ethernet ports through its fast PC/104+ socket. This board combines well with the dual-ethernet PCM-3663 PC/104+ module, giving integrators network flexibilty. The PCM-9575's powerful, fanless processor choices and solid system chipset make it a perfect core technology for medical equipment and other long life applications.

FEATURES

Embedded low power VIA 400 MHz to 1 GHz processor
Applied EBX form factor standard and supports PC/104+ bus
Fanless operation at 60º C (PCM-9575F-J & PCM-9575F-M only)
133MHz FSB and 4X AGP graphics for high performance applications

SPECIFICATIONS

Standard SBC Functions

CPU: Embedded VIA low power Ezra/Eden processor, 128KB L1 cache memory on die
- Eden-400 MHz (PCM-9575F-J)
- Eden-667 MHz (PCM-9575F-M)
- C3 1 GHz (PCM-9575F-S)
BIOS: Award 256 KB Flash memory
System memory: One DIMM socket, 64 MB up to 512 MB SDRAM PC133
2nd cache memory: 64KB on the Ezra/Eden processor
Enhanced IDE interface: Two channels supports up to four EIDE devices. BIOS auto-detect, PIO Mode 3 or Mode 4, UDMA33 transfer. Primary IDE supports up to UDMA66/100 mode.
FDD interface: Supports up to two FDDs
Serial ports: Four serial RS-232 ports - COM1, 3, 4: RS-232, COM2: RS-232/422/485
Parallel port: Parallel port supports SPP/EPP/ECP mode
Infrared port: Shared with COM4. Transfer rates up to 115Kbps
Keyboard/mouse connector: Supports standard PC/AT keyboard and a PS/2 mouse
Power management: Supports power saving modes including Normal/Standby/Suspend modes. APM 1.2 compliant
Watchdog timer: 62 level timer intervals
USB: Two universal serial bus ports (4 USB ports optional)
Expansion: 1 PCI slot, PC/104+ connector for ISA and PCI control board

VGA/Flat-Panel Interface

Chipset: VIA Twister™ chip with integrated Savage4™ 2D/3D/Video Accelerator
Frame buffer: Supports 8/16/32MB frame buffer with system memory
Interface: 4X AGP VGA/LCD interface, Support for 9, 12, 15, 18, 24, 36 bit TFT and optional 16- or 24-bit DSTN panel
Display mode:
- CRT Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (85Hz)
- LCD/Simultaneous Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (60Hz)
LVDS: Supports 2 Channel (2 x 18bit) LVDS interface

Ethernet Interface

Chipset: RTL 8139
Ethernet interface: IEEE 802.3u 100BASE-T Fast Ethernet compatible
I/O address switchless setting
Built-in boot ROM

Audio Function

Chipset: VIA 82C686
Audio controller: AC97 ver. 2.0 compliant interface
Audio interface: Mic in, Line in, CD audio in, Line out, Speaker L and R

Solid State Disk

Supports one 50-pin socket for CFC type I/II
Supports M-Systems DOC® 2000

Mechanical and Environmental

Power requirements:
- Max: 4.5A @ +5V
- Typical: 3.1A@+5V(Eden 400MHz)
Operating temperature: 32 to 140°F (0 to 60°C)
Dimensions (L x W): EBX form factor, 8.0" x 5.75" (203mm x 146 mm)
Weight: 0.85 kg (weight of total package)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22
Wind River VxWorks
QNX Neutrino RTOS

PRICING (Single Unit. Includes: Integration, Setup, and Testing)
Not Recommended for New Designs. Consider: PCM-9579F

PCM-9575F-J ... Eden 400 MHz w/VGA, PC104+, SSD,& LAN	316.00
PCM-9575F-M ... Eden 667 MHz w/VGA, PC104+, SSD,& LAN	337.00
PCM-9575F-S ... C3 1 GHz w/VGA, PC104+, SSD,& LAN	359.00

(Flash Disk, Memory, and Wiring Kit not included.)
