EMC-i613 Celeron/Pentium 3 SBC

Features

Specifications

Pricing



PCM-9388 Manual

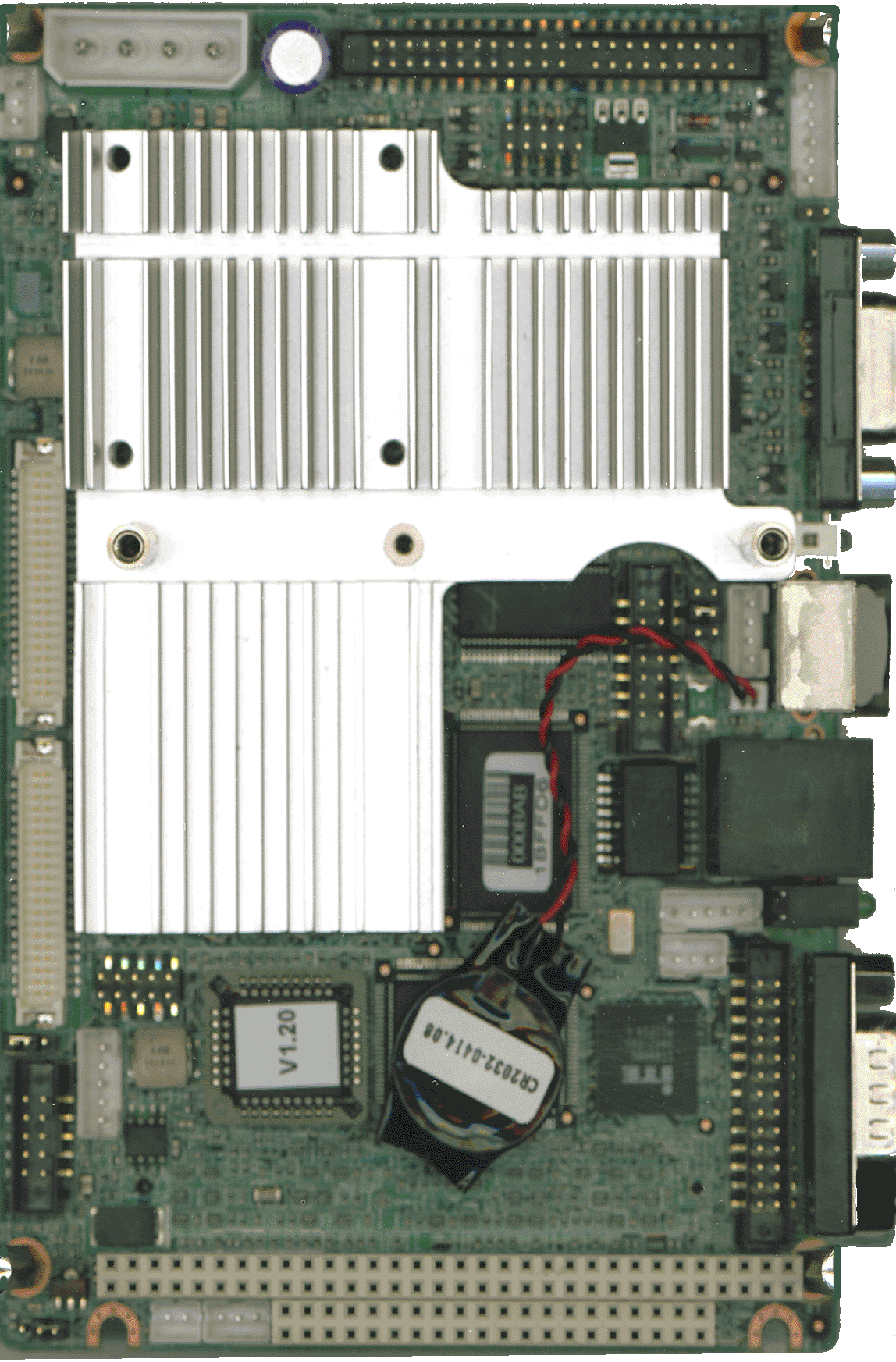

The PCM-9388 is centered on a powerful Intel® Celeron® M processor that supports an onboard 600MHz to 1GHz processor. The Intel® 852GM chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution.

The PCM-9388's design is based on the small Half-EBX form factor and provides support for PC/104 module expansion. The Half-EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 5.7" x 4 ") offers all the functions of a single board industrial computer, but still fits in the space of a 3.5" Hard drive.

On-board features include: two serial ports, Dual Video, one multi-mode parallel (ECP/EPP/SPP) port, two USB (Universal Serial Bus) 2.0 ports, an Ethernet port, two serial ports, PS/2 keyboard/mouse interface, Audio and a EIDE (UDMA 33) which supports up to two IDE devices, including large hard disks and CD-ROM drives.


FEATURES

  • Embedded Onboard Intel® Fanless Celeron® M Processor
  • Supports DDR memory
  • Supports 10/100 BASE-T Ethernet
  • Supports Dual Video, CRT and LVDS LCD or TTL LCD
  • Supports 2 x USB 2.0 ports
  • Supports PC/104 Expansion
  • Supports AT & ATX power


SPECIFICATIONS

Standard SBC Functions

  • CPU: Embedded Celeron M 600 Ghz. or 1.0 GHz
  • Chipset: Intel 852GM GMCH + ICH4
  • BIOS: AWARD® 4 Mbit
  • DRAM Memory: 1 x SODIMM socket, supports DDR266 DRAM up to 1 GB
  • Expansion: PC/104 Expansion Slot
  • Watchdog Timer: 1 - 255 sec, system reset
  • Power Management APM, ACPI S1, S5 supported

Standard I/O

  • IDE Interface: One EIDE UDMA 33
  • Serial Ports: One RS-232 and one RS-232/422/485 port
  • Parallel Port: Supports SPP, EPP, and ECP modes
  • USB Ports: Two onboard USB 2.0 ports
  • Keyboard/Mouse: One PS/2 keyboard and one PS/2 mouse
  • GPIO: 8-bit general purpose Input / Output port

VGA/Flat-Panel Interface

  • Chipset: Intel 852GM
  • Video Memory: Supports up to 64 MB (shared) memory
  • Display Type: Flat Panel and CRT displays
  • Resolution: Up to 1600 x 1200 @ 85 Hz
  • TTL Interface: Supports 18-bit TTL
  • LVDS Interface: Supports 36-bit LVDS LCD Panel
  • Dual Display: Dual Independent Display: CRT + LVDS, CRT + TTL

Ethernet Interface

  • Chipset: Realtek RTL 8100CL
  • Interface: 10/100 Mbps, onboard RJ45 connector

Audio Function

  • Supports AC97 Audio stereo sound; Line-in, Line-out, Mic-in

Solid State Disk

  • One CompactFlash™ socket supports Type I CompactFlash™ Cards (CFC).

Mechanical and Environmental

  • Power Requirements: AT/ATX (Celeron M 600 MHz with 1 GB SDRAM)
    • Maximum: +5 V @ 2.75 A, +12 V @ 0.17A
    • Typical: +5 V @ 1.78 A, +12 V @ 0.16A
  • Operating Temperature: 32 to 140F (0 to 60C)
  • Board Dimensions: 5.7" x 4.0" (145 mm x 102 mm)
  • Board Weight: 1.9 lbs. (0.85 kg)


Operating System Compatibility

  • Linux & RTAI Real-Time Linux
  • Microsoft Windows XP / XPE
  • Microsoft Windows CE /CE.net
  • Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

PCM-9388F ...... Celeron® M 600 SBC, VGA, LCD, Audio, ETH

307.00

PCM-9388F-S0 ... Celeron® M 1G SBC, VGA, LCD, Audio, ETH

323.00

(Flash Disk and Memory not included.)


Available Options
Single Board Computers (SBC)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services
