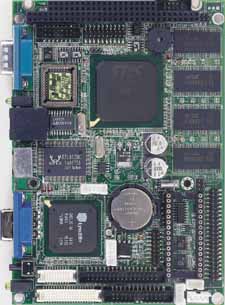

The new PCM-9340 is a 3.5” Half-EBX SBC with an on-board, embedded low power 133 MHz STPC Elite processor. Other on-board features include a VGA/LCD controller with 36-bit LCD TFT display and 10/100 Mbps PCI Ethernet interface. A PC/104 expansion connector is provided, as is optional SSD support for DOC 2000. 62 level watchdog timer and jumperless on-line setup is also supported.

With this board, system engineers can upgrade from 386-based to 486-based systems or from a 486 system using EDO RAM to a 486-based systems using SDRAM. A 486 level STPC Elite processor is mounted directly on board, thus simplifying configuration and installation as no jumpers for speed or Voltage must be set. In addition to ease of configuration, the STPC Elite 133 MHz low-power CPU has been specially designed to work well in environments with temperatures of up to 60°C without need of a fan. Eliminating the CPU fan from a system significantly increases both MTBF and application possibilities.

FEATURES

• On-board 133 MHz STPC Elite processor (fanless)

• On-board 32MB SDRAM
• On-board VGA/LCD display controller and 36-bit LCD TFT display
• 62-level watchdog timer, jumperless on-line setup sup-ported
• Supports wake on LAN, wake on ring (modem)
• Optional audio, SODIMM socket
• Supports CMOS data backup functions

SPECIFICATIONS

Standard SBC functions

• CPU: Embedded low power STPC Elite 133 MHz processor (fanless operation)
• BIOS: 2Mbit Flash BIOS, supports Plug & Play, APM
  • Supports Ethernet Boot ROM
  • Supports boot from CD-ROM
  • Supports boot from DOC
  • Supports boot from Compact Flash
• Chipset: STPC Elite 133 (on-chip)
• System memory: Onboard 32 MB SDRAM and one optional SDRAM SODIMM socket, max up to 64 MB
• IDE interface: One Enhanced IDE interface that supports 2 IDE devices PIO mode 3,4 with bus mastering up to 14 MB/sec.
• Floppy interface: Supports up to two FDDs (360 KB/1.2 MB/720 KB/1.44 MB/2.88 MB)
• Parallel port: One parallel port, supports SPP/EPP/ECP
• IR port: One 115 kbps IrDA compliant serial infrared
• Serial ports: 4 serial ports: COM1,3,4 (RS-232), COM2 (RS-232/422/485), RS-485 supports Auto flow control
• PC/104 expansion: 104-pin 16-bit PC/104 module connector
• Keyboard/mouse connector: Mini-DIN connector for keyboard and PS/2 mouse
• Power management: Supports APM
• Watchdog timer: 62-level timer interval, setup by software or jumperless selection, generates system reset or IRQ11 (standard)

SVGA / Flat Panel Interface

• Video Chipset: SMI LynxEM+ 712
• Display memory: 2 MB on the chip
• Display type: Simultaneous support for VGA and 36-bit TFT LCD display (supports 3.3 V LCD) Supports 3, 9,12,18, 24, 36-bit TFT and 16 or 24-bit DSTN Panel
• Resolution:
  • CRT Modes:
    • 1280 x 1024@16bpp (60Hz)
    • 1024 x 768@16bpp (85Hz)
    • 800 x 600 @24bpp(85Hz)
  • LCD/Simultaneous Modes:
    • 1280 x 1024@16bpp (60Hz)
    • 1024 x 768@16bpp (60Hz)
    • 800 x 600 @24bpp(60Hz)

Solid State Disk

• Supports DiskOnChip® 2000

Ethernet Interface

• Ethernet chipset: Realtek® RTL 8139C
• Ethernet type: IEEE 802.3u 100BASE-T
• Ethernet connection: RJ-45 connector equipped

Mechanical and Environmental

• Power Requirements:
  • Maximum: 5.0V @ 2A
  • Typical: +5.0V @ 1.62A
• Operating Temperature: 32° to 140° F (0° to 60° C)
  Wide-temp Version: -4° to 176° F (-20° to 80° C)
• Operating Humidity: 0% to 90% Relitive Humidity, non-condensing
• Dimensions: 4.0" x 5.75" (145mm x 102mm)
• Weight: 0.23kg (0.5lbs)

Operating System Compatibility

• Linux & RTAI Real-Time Linux
• Microsoft Windows CE /CE.net
• Microsoft Windows NT / NTE
• Microsoft MS-DOS 6.22 & RomDos 6.22
