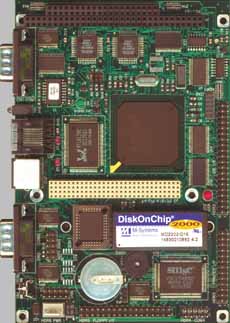

PCM-53E52 Half-EBX Single Board Computer

Features

Specifications

Pricing

PCM-53E52 Manual (440KB)

The PCM-53E52 is a compact Half-EBX board with PC/104+, SSD, Ethernet, and four COM ports. Unlike other compact Half-EBX boards, the PCM-53E52 has an optional Analog and Digital I/O Daughter Board, allowing for data acquisition and greater flexibility.

The PCM-53E52 features a low power AMD® ELAN-SC520 133 MHz processor (no fan required, 486/586 class processor roughly equivalant to a P120). This compact Half-EBX board has on board, 32MB of SDRAM memory standard. A 64MB and 128MB memory upgrade option is also available as is a DiskOnChip® 2000 (DOC) solid state flash disk (no moving parts). The PCM-53E52 can be connected onto a network using the Realtek™ RTL8139C 10/100Base-T Ethernet controller and onboard RJ-45 connector. In addition, the PC/104+ connectors provide both ISA and PCI connectivity.

The PCM-53E52 offers three RS-232 serial ports, one RS-232/422/485 serial port, and a parallel port that supports SPP/EPP/ECP parallel modes. This board includes a mini-DIN keyboard/mouse connector, an onboard 34-pin FDD interface that supports two floppy disk drives, and an onboard 44-pin EIDE interface that supports two EIDE devices. The PCM-53E52 is 5.75" in length and 4" wide, making it a great fit for harsh environment and limited-space applications.

PCD-E12 - I/O Daughter Board

PCD-E12 Manual (63KB)

The PCD-E12 Analog and Digital I/O Daughter Board adds micro-controller capability to the NEW PCM-53E52. The PCD-E12 features a Motorola HC12 processor, one CAN 2.0B port, one RS-232 port with handshake, 24 Digital I/O lines, eight high current sink outputs on a standard I/O Rack compatible 50 pin header, and 16 channels of A/D with 10-bit resolution (0 to 5V). The PCD-E12 also features onboard options such as eight channels of A/D 12-bit resolution (0 to 5V), four channels of D/A with 12-bit resolution, and a second RS-422/485 serial port for stand-alone use. In addition, the I/O daughter board supports up to a 24-key keypad and is capable of driving up to a 40 x 4 character LCD display.

FEATURES

Single Board Computer

Compact size (145 mm x 102 mm). Fits in the space of a 3½" HDD
ISA and PCI bus expansion with onboard PC/104+ connector
Onboard ELAN SC520 133MHz embedded microprocessor
Supports M-Systems’ DiskOnChip® 2000 Flash memory
Onboard 10/100 Base-T Ethernet interface
Onboard 32MB SDRAM memory
Onboard mini-DIN PS/2 keyboard/ mouse connector
Built-in Enhanced IDE hard disk drive interface, floppy disk interface and parallel port
Four serial ports: three RS-232 and one RS-232/422/485; on-board DB-9 connector is designated as COM1
Single +5 V power supply
Flexible OEM/ODM design

I/O Daughter Board Option

GP I/O Lines
A/D and D/A
CAN 2.0B Port
RS-232 Serial Port
Supports Keypads and Character LCD Displays

SPECIFICATIONS

Standard SBC Functions

CPU: Onboard ELAN SC520 133MHz embedded microprocessor
BIOS: General Software
RAM: Onboard 32MB SDRAM standard, 64MB and 128MB options available
Enhanced IDE HDD interface: Supports up to two Enhanced IDE devices.
FDD interface: Supports up to two FDDs
- 5.25" (360KB and 1.2MB) and/or
- 3.5" (1.44MB and 2.88MB)
Parallel port: One parallel port supports SPP/EPP/ECP parallel modes
Serial ports: Three RS-232 ports, one RS-232/422/485 port
PC/104+ expansion: 16-bit and 32-bit PC/104 module connectors
Keyboard/mouse connector: Mini-DIN connector for keyboard and PS/2 mouse

Solid State Disk

Supports DiskOnChip® 2000: Up to 1 GB Flash memory

Ethernet interface

Ethernet chipset: Realtek™ RTL8139C
Ethernet type: 10/100Base-T Ethernet controller
Ethernet connection: On-board RJ-45 connector

I/O Daughter Board

Processor: Motorola HC12
Digital I/O: 24 Digital I/O
- 8 Digital I/O
- 8 High Drive Outputs
- 8 Programmable Digital I/O, PWM's, or Counters
Analog Input: 16 ch. of 10-bit Resolution A/D (0 to 5V), an additional 8 ch. of 12-bit Resolution A/D (0 to 5V) option is also available.
Analog Output: Optional 4 Ch. 12-bit Resolution D/A (0 to 5V)
Serial Port: One RS-232 serial port, an additional RS-232/422/485 serial port is also available for stand-alone use.
Controller Area Network: One CAN 2.0B port
Keypads: Supports up to a 24-Key KeyPad
Displays: Supports up to a 40 x 4 Character LCD Display
Terminals: Optional Screw Terminal Board (PCD-39E00-000)

Mechanical and Environmental

Dimensions: 145mm x 102mm (5.7" x 4.0")
Weight: 0.17kg (0.37 lbs.)
Power Supply Voltage: +5V (4.57 ~ 5.25 V)
Maximum Power Requirements: +5V @ 1.5 A (typical)
Operating Temperature: 0° to 60° C (32° to 140° F)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-53E52-010 ... SC520-133 SBC w/ 32MB SDRAM	320.00
PCM-53E52-020 ... SC520-133 SBC w/ 64MB SDRAM	340.00
PCM-53E52-030 ... SC520-133 SBC w/128MB SDRAM	Call

(DiskOnChip® flash disk not included.)

Analog and Digital I/O Board

PCD-E12-0000 .... I/O Daughter Board	99.00
PCD-E12-0100 .... w/12 bit A/D Converter	159.00
PCD-E12-0300 .... w/12 bit A/D & 12 bit D/A	199.00


KEYPADS

E020-25 ... 12 KEY MEM TELEPHONE STYLE KEYPAD	25.00
E020-21 ... 16 KEY MEMBRANE HEX STYLE KEYPAD	30.00

DISPLAYS

E060-15 ... 20 CHAR. X 2 LINE LCD DISPLAY	49.00
E060-16 ... 20 CHAR. X 2 LINE LCD BACKLIT DISPLAY	65.00
E060-17 ... 20 X 2 VF Display	135.00

Available Options
System Memory (RAM)
Hard Drives
Flash Memory (DiskOnChip®)
Operating Systems
PC/104 Modules
Enclosures
Power Supplies
Terminal Boards
Signal Conditioning Cards
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
