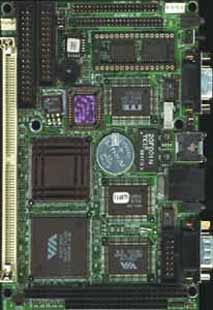

PCM-4823L Board Image

Features

Specifications

Pricing



PCM-4823 Manual (561KB)
PCM-4823 Drivers (3.33MB)

The Half-EBX PC is the ultimate cost-effective solution for limited space applications. These small all-in-one computers are the same size as a 3˝” hard disk drive and perform all the functions of an industrial computer and more! The PCM-4823 and PCM-4823L Half-EBX PCs are ultra-compact single board computers that integrate a 32-bit SVGA and LCD interfaces (PCM-4823 only) for a complete processing system.

On-board features include an Intel® DX4-100 processor, floppy disk controller, parallel port, an EDO DRAM SIMM socket, enhanced IDE, keyboard/mouse connector, and two standard serial ports. As energy efficient as it is space efficient, the PCM-4823/23L also supports power saving modes for I/O peripheral devices.

The PCM-4823 and PCM-4823L Half-EBX PCs are built especially for limited space embedded applications. Based on PC/AT architecture, they are compatible with most off-the-shelf software. In addition, because of the availability of inexpensive PC platforms, using the PCM-4823 or PCM-4823L can significantly reduce development time and cost. Moreover, mechanical configuration and system expansions are simple with industry standard PC/104 carrier modules.



FEATURES

  • Compact size (145 mm x 102 mm). Fits in the space of a 3˝" HDD
  • ISA-bus expansion with on-board PC/104 connector
  • On-board Intel® 486DX4-100 processor
  • Local bus VGA/LCD display controller (LCD, EL and VGA displays) plus on-board DB-15 connector (PCM-4823 only)
  • Supports M-Systems’ DiskOnChip® 2000 Flash memory
  • On-board 10Base-T Ethernet interface
  • Accepts up to 32 MB EDO DRAM
  • On-board mini-DIN PS/2 keyboard/ mouse connector
  • Built-in Enhanced IDE hard disk drive interface, floppy disk interface and parallel port
  • Two serial ports: one RS-232 and one RS-232/422/485; on-board DB-9 connector is designated as COM1
  • "Green Function" CPU card with sleep mode and low power consumption
  • Single +5 V power supply
  • Flexible OEM/ODM design


SPECIFICATIONS

Standard SBC Functions

  • CPU: On-board Intel® 486DX4-100 processor
  • BIOS: AWARD 128 KB Flash memory
  • Chipset: VIA 82C496G
  • RAM: One 72-pin SIMM socket. Accepts up to 32 MB FPM or EDO DRAM
  • Enhanced IDE HDD interface: Supports up to two Enhanced IDE (VL-bus) devices. Features BIOS auto-detect and Mode 3 transfer
  • FDD interface: Supports up to 2 FDDs
  • Parallel port: One parallel port suppors SPP/EPP/ECP parallel mode
  • Serial ports: One RS-232, one RS-232/422/485 port. Two 16C550 compatible UARTs
  • Infrared port: Supports up to 115 Kbps transmitting rate
  • PC/104 expansion: 104-pin 16-bit PC/104 module connector
  • Keyboard/mouse connector: Mini-DIN connector for keyboard and PS/2 mouse
  • Power management: APM 1.1 compliant power management
  • Watchdog timer: Generate system reset, software enabled. Timer interval 1.5 sec.

Local-Bus Flat Panel/VGA Interface (PCM-4823 only)

  • Video Chipset: C&T 65550
  • Display memory: 1 MB DRAM
  • Display type: Simultaneously supports CRT and Flat Panel (EL, LCD and gas plasma) display
  • Resolution:
    • Non-interlaced VGA monitor resolution up to 1024 x 768 @ 256 colors
    • Panel resolution: Supports up to 1024 x 768 @ 256 colors TFT panel

Solid State Disk

  • Supports DiskOnChip® 2000 for up to 144 MB Flash memory

Ethernet Interface

  • Ethernet chipset: Realtek™ RLT8019AS
  • Ethernet type: 10Base-T Ethernet, Novell NE2000 compatible
  • Ethernet connection: On-board RJ-45 connector

Mechanical and Environmental

  • Dimensions: 145mm x 102mm
  • Weight: 0.17kg (0.37lbs)
  • Power Supply Voltage: +5V (4.57 ~ 5.25V)
  • Operating Temperature: 32° to140° F (0° to 60° C)

Operating System Compatibility

  • Linux & RTAI Real-Time Linux
  • Microsoft Windows CE /CE.net
  • Microsoft Windows NT / NTE
  • Microsoft MS-DOS 6.22 & RomDos 6.22




PRICING (Single Unit. Includes: Integration, Setup, and Testing)
Not Recommended for New Designs. Consider: PCM-9340

PCM-4823 .... 486 Half-EBX Board w/ LAN & LCD

USD305.00

PCM-4823L ... 486 Half-EBX Board w/ LAN

USD232.00

(Flash Disk and Memory not included.)


Available Options
 System Memory (RAM)
Hard Drives
 Flash Memory (DiskOnChip®)
Operating Systems
PC/104 Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services


Product pricing, features, and specifications are subject to change without notice.
