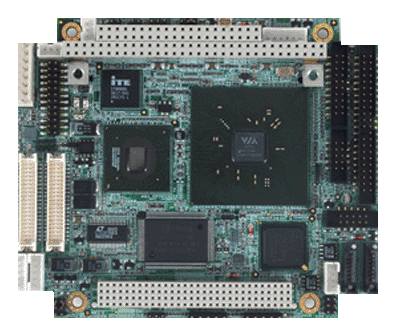

EMC-i613 Celeron/Pentium 3 SBC


PCM-3372 Manual

The PCM-3372 utilizes an onboard Intel Ultra-Low Voltage Fanless VIA Eden V4 400/600 MHz, which makes the PCM-3372 one of the smallest and most powerful SBCs on the market. The PCM-3372 gives developers a low power, high performing and scalable platform that can fit into the tightest places. PC/104+ I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 or PC/104+ expansion modules. The PCM-3372 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

The PCM-3372 provides the quality features available on SBC boards several times its size. The VIA CX700 graphic chipset has excellent graphics performance and provides flat panel support using digital dual independent displays with CRT and LVDS interfaces. SDRAM memory capacity up to 1GB is large enough to accommodate the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE.net, Windows Vista and DOS 6.22. Six USB 2.0 ports are available as well as 2 serial ports (RS-232 & RS-232/422/485). With its industrial grade reliability, the PCM-3372 can operate continuously at temperatures up to 140º F (60º C) without a fan. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability (no moving parts) are essential.



FEATURES

  • Intel Ultra Low Voltage Embedded VIA Eden Fanless Processor
  • Processor Speed Options from 400 Mhz to 1 GHz
  • 200-pin DDR SO-DIMM up to 1GB DDR2 SDRAM
  • Support Dual Indpendent Display (CRT, LVDS and TTL LCD)
  • Intel 82551ER 10/100 Base-T Ethernet
  • Both IDE and SATA Interfaces
  • 6 x USB Ports
  • 2 x Serial Ports
  • Compact Flash Socket
  • Supports PC/104 and PC/104+ Interface





SPECIFICATIONS

Standard SBC Functions

  • CPU: Embedded Via Eden 400/600 MHZprocessor and Ultra Low Voltage 1.0 GHz
  • L2 Cache: 128 KB
  • Chipset: VIA CX700
  • BIOS: Award 4 Mbit Flash BIOS
  • Memory: One 200-pin SO-DIMM socket supports up to 1 GB DDR2
  • IDE Interface: One EIDE, which supports 2 IDE Drives
  • SATA: Interface: Two Serial ATA channels
  • Serial Ports: One RS-232 Port , One RS-232/422/485 Port
  • USB Ports: Six onboard USB 2.0 ports
  • Expansion Bus : Supports One PC/104 and One PCI PC/104+ Interface
  • Power Management: ACPI Support, APMI 1.2
  • GPIO: 4 Input & 4 Ouput General Purpose I/O Lines
  • Watchdog Timer: 255-level Reset

VGA/Flat-Panel Interface

  • Chipset: VIA CX700
  • Video Memory: Supports up to 64MB Shared Memory
  • Display Type: Flat Panel and CRT displays
  • Resolution: Up to 1920 x 1440 @ 32 bpp
  • LCD Interface: Flat Panel 24/48-bit LVDS interface & TTL TFT LCD
  • Interface: Dual Independent CRT+LVDS

Ethernet Interface

  • Chipset: Intel 82551ER
  • Interface: 10/100 Base-T Ethernet

Audio Interface

  • Interface: HD Audio Stereo Sound supports Mic-In/Line-In/Line-Out

Mechanical and Environmental

  • Power Requirements: +5 V @ 1.45 A Typical (Eden ULV 1.0 GHz w/ 512MB RAM)
  • Operating Temperature: 32 to 140F (0 to 60C)
  • Board Dimensions: 4.5" x 3.8" (115 mm x 96 mm)

Operating System Compatibility

  • Linux & RTAI Real-Time Linux
  • Microsoft Windows XP / XPE
  • Microsoft Windows CE /CE.net
  • Microsoft Windows Vista
  • Microsoft MS-DOS 6.22 & RomDos 6.22



PRICING (Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
For a replacement Contact Us

PCM-3372F-J .. 400MHz VIA Eden SBC

USD EOL

PCM-3372F-M .. 600MHz VIA Eden SBC

USD EOL

PCM-3372F-S .. 1.0GHz ULV VIA Eden SBC

USD EOL

(Flash Disk and Memory not included.)


Available Options
Single Board Computers (SBC)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services
