PCM-3362 Atom PC/104+ N450 SBC

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

Features

Specifications

Pricing

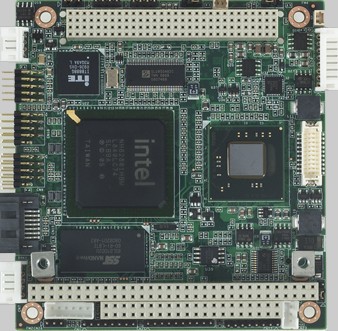

PCM-9580 SBC Image

PCM-3362 Manual

The PCM-3362 is centered on the low power Intel® Atom Single Core N450 processor which supports enhanced Intel “SpeedStep” technology and uses Intel’s N450 chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCM-3362's design is based on the PC/104+ form factor and provides expansion support via ISA & PCI Busses. The PCM-3362 gives developers a low power, low cost and scalable platform that can fit into the tightest places. PC/104+, PCI/104 and PC/104 expansion allows features to be quickly added using any one of EMAC’s many PC/104, PC/104+, or PCI/104 expansion modules. The PCM-3362 is perfect for applications such as data acquisition and industrial automation where low power in a limited space is required.

On-board features include: three serial ports, four USB (Universal Serial Bus) 1.1/2.0 ports, a Gig Ethernet port, an Audio port and a PS/2 keyboard/mouse interface. The built-in high-speed SATA Hard Driver controller supports a maximum transfer rate of 300MB per second. For more rugged applications the 2GB of on-board Flash can be utilized in place of the hard drive.

FEATURES

Embedded Intel® Atom Fanless N450 Processor
Supports DDR2 memory
Supports Dual Independet Display
Supports Gig Ethernets
Supports 3 Serial ports
Supports 4 USB 2.0 ports
Supports 1 SATA supporting 2 drives
Supports PC/104+ Expansion
Supports +5 V and +12 V power; or single +5 V power
Wide Temperature Version Available
OS can be booted from 2GB Resident on-board Flash

SPECIFICATIONS

Standard SBC Functions

CPU: Embedded Intel Atom N450 1.66GHz processor
L2 Cache: 512 KB
Chipset: N450
BIOS: AMI 16 Mbit
DRAM Memory: 1 x SODIMM socket, supports DDR2 667 DRAM up to 2GB
Flash: 2GB of Resident on-board Flash memory
Expansion: PC/104+
Watchdog Timer: 1 - 255 sec, system reset
Power Management APM 1.2, ACPI 3.0 supported

Standard I/O

SATA Interface: One SATA Channel
Real Time Clock: RTC with Lithium Battery
Serial Ports: 2 RS-232 and 1 RS-232/422/485 port
USB Ports: 4 onboard USB 2.0 ports
Keyboard/Mouse: One PS/2 keyboard and one PS/2 mouse
GPIO: 8-bit general purpose I/O port

VGA/Flat-Panel Interface

Chipset: Intel N450
Video Memory: Supports up to 224 MB (shared) memory
Display Type: Flat Panel and CRT displays
Resolution: Up to 1400 x 1050 @ 60 Hz
LVDS Interface: Supports 1 channel (18-bit) 1366 x 768 LVDS LCD Panel
Dual Display: Dual Independent Display: CRT + LVDS

Ethernet Interface

Chipset: Intel 82567V
Interface: 802.3u, 10/100/1000 Base-T, onboard RJ45 connector

Audio Function

Interface: HD Audio requires optional CODEC module.

Solid State Disk

2GB Resident on-board Flash.

Mechanical and Environmental

Power Requirements: AT / ATX (Both AT/ATX can support ACPI)
- AT: 5V ±10% only
- ATX: 5V ±10%, 5VSB ±5% (5V stand-by is for auto power off function)
- Maximum:
  - PCM-3362N: +5V @ 2.37A, +12V @ 7ma.
  Typical:
  - PCM-3362N: +5V @ 2A, +12V @ 5ma.
Operating Temperature: 32 to 140°F (0 to 60°C).
- PCM-3362Z: - 20 to + 80°C (includes 1GB of on-board RAM)
- PCM-3362Z2: -40 to + 85°C (includes 1GB of on-board RAM)
Board Dimensions: 96 x 90 mm (3.8" x 3.5")
Board Weight: 0.162 kg (0.357 lb) (with heat-sink)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows WES2009/XPE
Microsoft Windows CE

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

PCM-3362N .. ATom 1.6GHz N450 Fanless SBC w/ no RAM	339.00
PCM-3362z .. ATom 1.6GHz N450 -20 to 80C SBC w/ 1GB RAM	541.00 (NCNR)
PCM-3362Z2.. ATom 1.6GHz N450 -40 to 85C SBC w/ 1GB RAM	575.00 (NCNR)

Optional Components

PCA-AUDIO-HDA1E .. HD Audio Codec Module

33.00

Available Options
Single Board Computers (SBC)
System Memory (RAM)
Hard Drives
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
