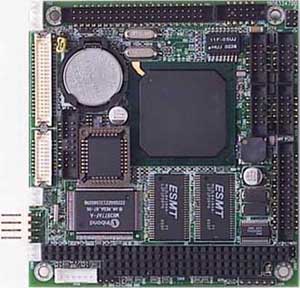

PCM-3350 Image
PCM-3348 Manual (3.3MB)

Features

Specifications

Pricing

EMAC's new PC/104 module, the PCM-3348, has all the functions and power of a standard full-size PC, but in the form factor of an industry standard PC/104 (3.5 x 3.8 in., 90 x 96 mm.). This makes it one of the smallest, most complete SBCs on the market.

Even though this module is so small, it still contains everything that a full-fledged computer does. This 486 based PC/104 CPU module has an on-board Video/LCD controller as well as 10/100Base-T Ethernet capability. The on-board LCD controller supports 36-bit video and has 2 MB display memory on chip. These features give our customers a complete, cost-effective board solution for applications that require network and Video or LCD panel support in a limited space environment.

This module supports Watchdog timer protection. On board, there is 64 MB memory, four serial ports and one parallel port, plus one IDE connector, allowing for as much peripheral expansion as most much larger size SBCs. This board also supports one CompactFlash™ card for use as an emulated HDD. EMAC provides several size options for CompactFlash™ cards up to over a Gigabyte of storage. Its on-board CPU is an STPC Consumer II 133Mhz from ST Thompson.

FEATURES

On-board 133MHz STPC Consumer II processor (fanless)
On-Chip VGA/LCD display controller
On-board memory 64 MB
Award BIOS
62-level watchdog timer
Supports 10/100Base-T Ethernet

SPECIFICATIONS

Standard SBC Functions

CPU: ST Consumer II 133MHz
BIOS: Up to 4 Mb Award KB Flash BIOS, supports Plug & Play and default is 2 Mb
Fanless operation
On-Board DRAM: 64 MB
SSD: Supports one CompactFlash™ card
Graphics: Consumer II on-chip VGA /LCD.
Network: RTL 8100 chipset
Ethernet: 10/100Base-T
Watchdog: 1 to 63 sec interval watchdog timer
IDE interface: One enhanced IDE
PC/104 expansion: 104-pin 16-bit PC/104 module connectors

Super I/O

One PC-AT keyboard/mouse connector
COM1/ COM3/ COM4: RS-232, COM2: RS-232/ 422/ 485
One parallel port
Infrared: One 4 Mbps FIR (Fast Infrared) Port.

Mechanical and Environmental

Operating Voltage: +5 V only
Power consumption: +5 @ 1.7 A (typical with Consumer II 133 MHz CPU + 64 MB)
Dimensions: 96 mm x 90 mm (3.8" x 3.5")
Operating temperature: 0 ~ 70° C (32 ~ 158° F)
Weight: 0.11 kg (.24 lbs.)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup, and Testing)
Not Recommended for New Designs. Consider: PCM-9340

PCM-3348F ... Consumer II 133 MHz, 64MB, LCD & LAN

USD 207.00

(CompactFlash card not included.)

Available Options
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
