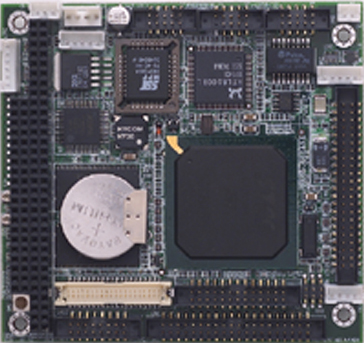

PCM-3350 Image

Features

Specifications

Pricing

PCM-3341 Manual (2.2MB)

EMAC's PCM-3341 PC/104 module has all the functions and of a standard full-size PC, but in the form factor of an industry standard PC/104 (3.5 x 3.8 in., 90 x 96 mm.) module. This makes it one of the smallest, most complete x86 SBCs on the market.

Even though this Fanless module is so small, it still contains everything that a full-fledged computer does. This 486 based PC/104 CPU module has an on-board Video/LCD controller as well as 10/100Base-T Ethernet capability. The on-board LCD controller supports 36-bit video and has 4 MB display memory on chip. These features give our customers a complete, cost-effective board solution for applications that require network and Video or LCD panel support in a limited space environment.

This module supports Watchdog timer protection. In addition it come equipped with 64 MB memory on board, four serial ports, two USB ports and one parallel port This board also supports one CompactFlash™ card to be used in place of or in conjunction with a hard drive. EMAC provides several size options for CompactFlash™ cards up to over a Gigabyte of storage. Its on-board CPU is an STPC Atlas 133Mhz from ST Microelectronics.

FEATURES

On-board 133MHz STPC Fanless Atlas processor
On-board VGA/LCD display controller
On-board memory 64 MB
2 USB 1.1 ports
62-level watchdog timer
Supports 10/100Base-T Ethernet

SPECIFICATIONS

Standard SBC Functions

CPU: ST Fanless ATLAS 133MHz
BIOS: AWARD 256KB Flash BIOS
On-Board SDRAM: 64 MB SDRAM
SSD: CompactFlash Type I Flash Disk support
Ethernet: Realtek RTL8100BL, IEEE 802.3U 100Base-T
Watchdog: 63 Scale, hardware reset and IRQ selection
IDE interface: 1 EIDE Interface (DMA 33)
Expansion: PC/104 16-bit compatible ISA bus

Super I/O

One PC-AT keyboard/mouse interface
COM1/ COM3/ COM4: 3xRS232, COM2: 1xRS232/422/485
One parallel port
IrDA: 115Kbps
USB: 2 USB 1.1 Compliant Ports
GPIO: 8 Inputs/Outputs

Video

Chipset: STPC Atlas on-chip video supports CRT and 18-bit TFT LCD Panel
Resolution: CRT up to 1280 x 1024/LCD up to 1024 x 1024

Mechanical and Environmental

Operating Voltage: +5V power
Power consumption: +5V @1.6A
Dimensions: 96 mm x 90 mm (3.8" x 3.5")
Operating temperature: 0-60C (32-140F)
Wide-temp Version: -4° to 176° F (-20° to 80° C)
Weight: 0.85kg

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

Consider: VSX-6154 or VDX-6354

PCM-3341F ... ATLAS 133 MHz, 64MB, LCD, USB & LAN	Call
PCM-3341Z ... Wide Temp Version of PCM-3341f	Call

(CompactFlash card not included.)

Available Options
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
