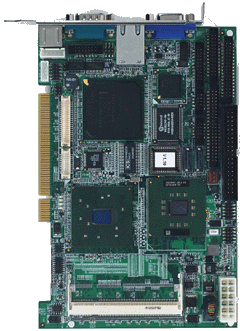

The PCI-6886 is centered on a powerful Intel Celeron® M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 852GM chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCI-6886's design is based on the small Half-Size PCI Card form factor and provides support for PCI Card expansion through the use of a passive PCI backplane. EMAC can provide backplanes and enclosures for the PCI-6886.

On-board features include: four serial ports, one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) 1.1/2.0 ports, an Ethernet port, and a PS/2 keyboard/mouse interface. The built-in high-speed PCI IDE controller supports both PIO and UDMA/100 bus master modes. Up to four IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives.

FEATURES

Embedded Fanless Intel Celeron M 600 MHz Processor
Supports 400 MHz Front Side Bus
Supports 200 MHz & 266MHz DDR SDRAM
Supports of to 1000Base-T Ethernet on board
Supports up to 2 Channel 36 bits LVDS for LCD
Provides both Analog VGA and DVI
Supports 4 x USB 2.0 ports

SPECIFICATIONS

General Functions

CPU: Embedded Fanless Intel Celeron M 600 MHz Processor
Bus interface: PCI Bus
BIOS: AWARD 4Mbit Flash BIOS
Chipset: Intel 852GM/GMCH + 6300ESB
I/O Chipset: Windbond 83627HF
Memory: 200 pin DDR SODIMM x 2, support DDR up to 2GB
Power Management: APM 1.2, ACPI support
Watchdog timer: 0-255 sec, System reset

Standard I/O

Enhanced IDE: 2 IDE Channels provides support for 4 Devices
FDD interface: Supports 1 Floppy Drive
Parallel port: One bi-directional parallel port. Supports SPP/ECP/EPP modes
Serial port: 1 x RS232/422/485, 3 RS232
KB/Mouse connector: PS2 keyboard and mouse
USB connectors: Support four USB 2.0 ports
GPIO: General Purpose 8 Line Input or Output port

Flat panel/CRT interface

Chipset: Intel 852GM chip integrated. (Extreme Graphics 2)
Frame buffer: Optimized SMA, supports up to 64 MB frame buffer using system memory
Interface: Dual Independent CRT/DVI + LVDS
Display mode:
- CRT Modes: up to 1600 x 1200 @ 24 bpp (85 Hz)
- LCD /Simultaneous Modes: up to UXGA panel resolution with frequency range from 25 MHz to 112 MHz
LVDS: 2 Channel LVDS (36-bit)

Ethernet Interface

Chipset: Intel 82551ER or optional Intel 82540EM (Gigabit)
Ethernet interface: IEEE 802.3U (100Base-T) or IEEE 802.3 z/ab (1000Base-T)
Connector: RJ-45 Connector on-board

Audio Function

Supports AC97 Audio stereo sound; Line-in, Line-out, Mic-in

SSD interface

Support CompactFlash® Card Type I/II (Share 2nd IDE channel)

Mechanical and Environmental

Power Requirements: +5 V, +5 V STB and +12 V
- Maximum: +5 V @ 2.5 A, +12 V @ 0.32A

Typical: +5 V @ 1.9 A, +12 V @ 0.31A

Operating Temperature: 0 ~ 60° C (32 ~ 140° F), operation
Board Size: 185 x 122 mm (7.3" x 4.8")
Weight: 0.27 kg

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22
Wind River VxWorks
QNX Neutrino RTOS

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCI-6886F-M ... Celeron M 600 mhz PCI Slot Card 100 Base-t	425.00
PCI-6886FG-M .. Celeron M 600 mhz PCI Card with 1000 Base-T	448.00

(Memory,and Flash Disk Not Included)

Available Options
System Memory (RAM)
Hard Drives
Flash Memory (Compact Flash)
Operating Systems
PC/104 Modules
LCDs and Touchscreens
Enclosures & Backplanes
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
