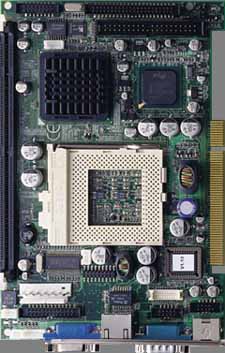

Picture of PCI-6870

Features

Specifications

Pricing

PCI-6870 Manual (5.6 MB)

The PCI-6870 is the latest effort to provide new PCI based solutions to our customers. This SBC is based solely on the PCI bus standard.

The advantage of using the PCI bus standard is the higher performance of 32-bits at 33 MHz compared to the ISA buses' standard 8/16-bits at 8 MHz. This increased performance makes PCI cards especially attractive for communication applications. PCI bus cards also provide for easy expansion. For example,adding another Ethernet port could easily be done on a PCI bus card. Also,other high-speed add-on cards need a PCI interface. High speed Add-on communication cards are good examples of this.

The PCI-6870 supports both 0.13 micron and 0.18 micron socket 370 Pentium® III/Celeron™ processors of FSB 100/133. Using Intel® 815E chipset, it can support a Pentium® III CPU up to 1.24GHz or a Celeron™ CPU up to 1.2 GHz. PCI-6870 uses the VGA controller in the 815E chipset and supports Direct AGP. The VGA memory is UMA shared memory and can be further upgraded to 4MB with an optional module. There are 2 serial ports, one RS-232 and one RS-232/422/485. The PCI-6870's USB interface is USB rev. 1.1 compliant. There is a 10/100 Mbps Ethernet interface as well as SIR IrDA compliant infrared support. The PCI IDE interface has two IDE channels and supports 4 IDE devices with Ultra DMA33 with Bus Mastering up to 33MB/sec. In addition, channel one IDE supports Ultra DMA 33/66/100.

FEATURES

Supports Socket 370 for Intel® Pentium®III/Celeron™ processor up to 1.26/1.2 GHz
High speed Direct AGP for VGA display (815E built-in)with an optional video module supporting DVI,and TV out
10/100Base-T Fast Ethernet (Intel® 815E built-in and Intel® 82562ET onboard)
USB interface compliant with USB rev.1.1
Supports CompactFlash™ Type II cards
System overheat temperature control
Watchdog timer,jumperless on-line setup supported
Supports wake-up on LAN
Supports PCI interface compliant with PCI rev.2.1
Supports four PCI Bus masters

SPECIFICATIONS

Standard SBC Functions

CPU: Socket 370 for Intel^® Pentium®III/Celeron™ up to 1.26/1.2 GHz
BIOS: Award 256KB Flash BIOS
- Supports Ethernet Boot ROM
- Supports boot from CD-ROM
- Supports boot from LS-120 ZIP Drive
Chipset: Intel^® 815E PCI set, FSB 100/133 MHz
2nd level cache: 128/256 KB on Celeron^{™ /}Pentium^®III Processors
System memory: One DIMM socket, supports PC100/133 up to 512MB
IDE interface: Two Enhanced IDE interface, supports 4 IDE devices Ultra DMA33 mode up to 33 MB/sec. Channel one supports Ultra DMA 33/66/100.
Floppy disk drive interface: Supports up to two FDDs (360 KB/1.2 MB/720 KB/1.44 MB/2.88 MB)
USB Interface: Two USB Ports
Parallel port: One parallel port, supports SPP/EPP/ECP
IrDA port: One 115 kbps IrDA 1.0 compliant
Serial ports: One RS-232 serial port and one RS-232/422/485 serial port
Audio: AC97 compliant, Mic in, Line in, Line out, and Speaker out.
Watchdog timer: 62 levels timer interval, setup by software, jumperless selection, generates system reset or IRQ11
Keyboard/Mouse: 6-pin Mini-Din header connector for keyboard and PS/2 mouse
Power Management: Supports Advanced Power Management
On-board Security: CPU over temperature

AGP SVGA/Flat Panel Interface

Chipset: Intel® 815E (Direct AGP)
Display memory: Shared system memory up to 4MB (max)
Display type: Supports CRT.
Interface: 2x AGP, Accelerator Graphics Ports 1.0 compliant
Display mode: CRT display supports up to 800 x 600 @ 24 bpp, 1024 x 768 @ 24 bpp

Ethernet Interface

Intel® 82562ET chip
PCI Ethernet controller, IEEE 802.3u compatible
Supports 10/100Base-T Ethernet

Solid State Disk

Supports CompactFlash^™ disk Type II

Mechanic and Environmental Specifications

Power Consumption:
- Typical: 5 V @ 6.88A (w PIII 850, 256 MB)
- Maximum: 5 V @ 8.0A
Operating temperature: 32° to 140°F (0° to 60°C)
Size: 185 mm x 122 mm
Weight: 0.26 kg

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22
Wind River VxWorks
QNX Neutrino RTOS

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCI-6870 ... Socket 370 Half-size PCI CPU Card

USD 353.00

(CPU, Memory, and Flash Disk Not Included)

Available Options
Central Processing Unit (CPU)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
LCDs and Touchscreens
Enclosures & Backplanes
Power Supplies
Custom and Semi-custom Engineering Services
